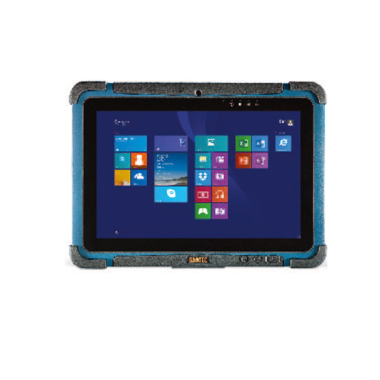

BARTEC AGILE X: Industrial Tablet Computer for Zone 2/22 Ex Areas
- certified: ATEX/IECEx Zone 2/22, UL Class 1 Div. 2
- versatile: WLAN, Bluetooth, opt. LTE, GPS, multiple ports, extension port for UHF RFID add-on module or HART add-on module, opt. 1D/2D imager
- robust: Gorilla glass, IP65, -20 °C – 60 °C (-20 °C – 50 °C in Ex areas), MIL-STD-810G
- reliable: Intel Bay-Trail M Quad-core CPU, 8GB RAM, 128 GB or 256 GB (opt.) storage
- convenient:1” multi-touch screen, 700 nits brightness
The slim and lightweight industrial tablet computer Agile X by BARTEC equips workers with the necessary processing power and enables data access and transmission from any location. It is certified for potentially explosive areas in accordance with ATEX/IECEx zone 2/22 and UL Class 1 Div. 2. For Ex areas of the categories 1 and 0, please refer to BARTEC Agile X IS.
The BARTEC Agile X is equipped with an Intel Bay-Trail M 1.8 GHz quad-core CPU. It provides 8 GB DDR3L-1600 working memory and 128 GB (standard) or 256 GB (option) SSD storage and comes with a MicroSD card slot. The Agile X runs Windows 10 IoT LTSB, CBB or Windows Embedded 8.1 Industry Pro. The industry tablet offers WLAN, Bluetooth and optionally LTE and GPS wireless connectivity as well as multiple I/O ports (Micro HDMI, 30 pin combination connection for Giga-LAN or RS-232, USB 3.0).
A 10.1-inch projective capacitive touch screen provides a convenient user interface. With 700 nits brightness, the tablet is ideal for indoors and outdoors applications. The display is made of Gorilla glass to ensure high durability.
In many industrial environments, digital data capture is a highly effective way of enhancing workflows. As option, the BARTEC Agile X can be equipped with a 1D and 2D barcode reader or with an internal HF RFID reader. For more flexibility, the Agile X can be customized by means of add-on modules. There are two add-on modules available, which can be attached to the expansion port on the rear side: a UHF RFID module or a HART module, to configure, parameterize, read and measure HART devices in potentially explosive atmospheres. To enable photo capture or video calls, the BARTEC Agile X comes with a 5-megapixel rear camera and a 2-megapixel front camera.
The BARTEC tablet computer Agile X is designed for challenging environments. It complies with MIL-STD-810G standards with regard to shock and vibration resistance. The device is sealed against dust and water in accordance with protection class IP65. A large temperature range, from -20 °C to +60 °C or -20 °C to +50 °C in Ex zones, allows various application fields. The Agile X tablet comes with a powerful 5,300 mAh battery that can be changed while the device is running (hot swap). For longer battery runtimes, a 10,280 mAh high-capacity battery is available as option.
Accessories suitable for potentially explosive atmospheres: Standard battery, long life battery, stylus, hand strap, screen protector, carry system, leather carry case, 4-point belt, shoulder strap, radio module 4G/LTE, RFID UHF add-on module, HART add-on module
Accessories for the use outside potentially explosive atmospheres: 2-slot battery charging station, docking station, power supply, vehicle docking station, power supply with vehicle charge adapter, mounting plate for VESA mount, LAN adapter cable/RS232, Micro HDMI cable
|Product Category||Mobile Computers|
|Communication Interfaces||WLAN, Bluetooth, LTE (opt.), GPS|
|Operating System||Windows 10 IoT LTSB bzw. CBB, Embedded 8.1 Industry Pro|
|CPU||Intel Bay-Trail M|
|Memory||8 GB SODIMM DDR3L-1600, 128 GB mSATA MLC SSD (opt. 256 GB)|
|Data Capture||opt. 1D/2D-Imager|
|Camera||5 MP/2 MP|
|Operating Temperature||-20 °C – 60 °C or -20 °C – 50 °C inside potentially explosive areas|
|Humidity||30 % - 90 % non-condensing|
|Keyboard Options||On-screen Keyboard|
|Touchpanel||Procjective Capacitive Touch Screen|
|Special Features||Certified for Hazardous Areas ATEX/IECEx 2/22, UL Class 1 Div. 2; Expansion Port e. g. for HART Add-on Module|
