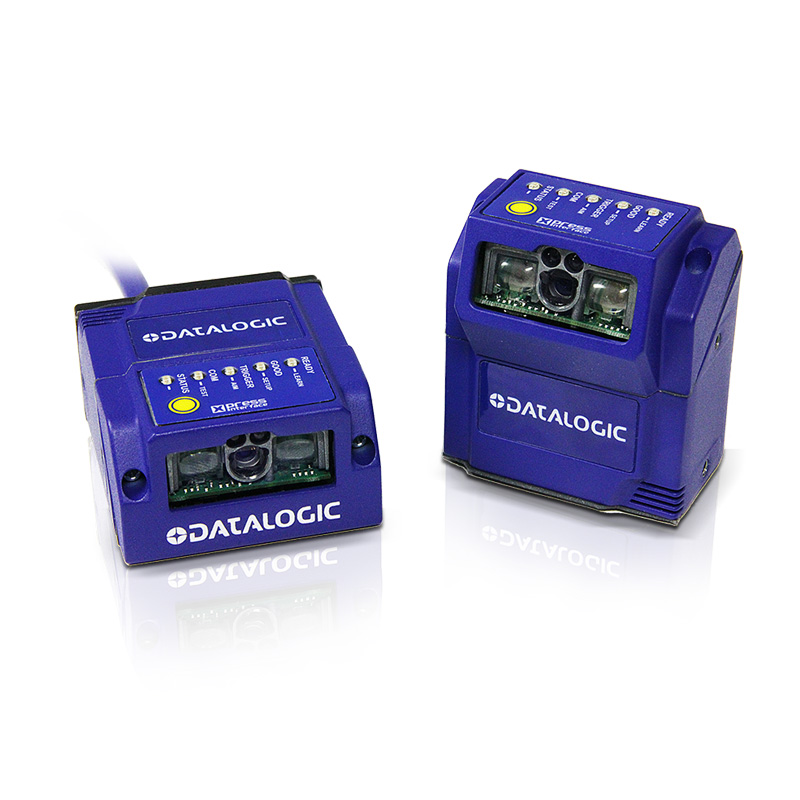

Datalogic Matrix 210N Fixed Scanner

The Datalogic Matrix 210N is an adaptable scan module for industrial applications. It provides ultra-fast read rates, suitable for high-speed production lines. The compact device can also be integrated into manufacturing systems and machinery. The Datalogic Matrix 210N scanner reads 1D, 2D and DPM codes. It is available with various features and connectivity options to meet different requirements.

Add to wishlist Downloads

DATALOGIC MATRIX 210N: Scanner Module for Industrial Applications

  • versatile: with Ethernet, Serial or USB connectivity, straight or angled, fixed focus or auto focus with dynamic focus liquid lens
  • excellent: connection of multiple scan modules possible (master/slave network)
  • advanced: high-performance 1D, 2D and DPM capture with up to 60 frames per second

The Datalogic Matrix 210N scan engine offers advanced barcode capture for industrial applications, for example in the electronic, pharmaceutical or chemical industries. The integrated sensor excels in terms of speed and accuracy. The Matrix 210N reaches read rates of 60 frames per second. The image-based reader captures linear as well as 2D codes and DPM. There are versions available for near, medium or far distance barcode capture.

To suit different applications, the Matrix 210N scan module is available with fixed focus or with an electronically controlled dynamic focus liquid lens. Also, it is possible to choose between a straight fitted or a 90° angled scan engine (fixed focus models only). The scanner provides good-read confirmation with a green spot on the barcode.

The Matrix 210N scanner by Datalogic comes either with Ethernet (Ethernet 10/100, EtherNet/IP, PROFINET), serial or USB connectivity to enable high flexibility. Captured data can be stored on the scanners or be transmitted to connected devices.

With ID-NET, multiple Matrix 210N scan modules can be connected to form a network. For uncomplicated operation, the Matrix 210N scanner provides X-PRESS, a simple and intuitive user interface consisting of five LEDs and a multifunction button.

The Datalogic Matrix 210N scanner is ultra-small. It is available as ESD-save version or with YAG laser protection filter. In compliance with protection class IP65, the Matrix 210N is sealed against the ingress of dust and water.

Technical specification

Product Category Barcode Scanners
Category Fixed Scanner
Manufacturer Datalogic
Communication Interfaces Ethernet, seriell or USB
Sealing IP65
Operating Temperature 0 °C – 50 °C or 0 °C – 45 °C (model with liquid lens)
Read Rate 60 fps


Datasheet Datalogic Matrix 210N (EN)
