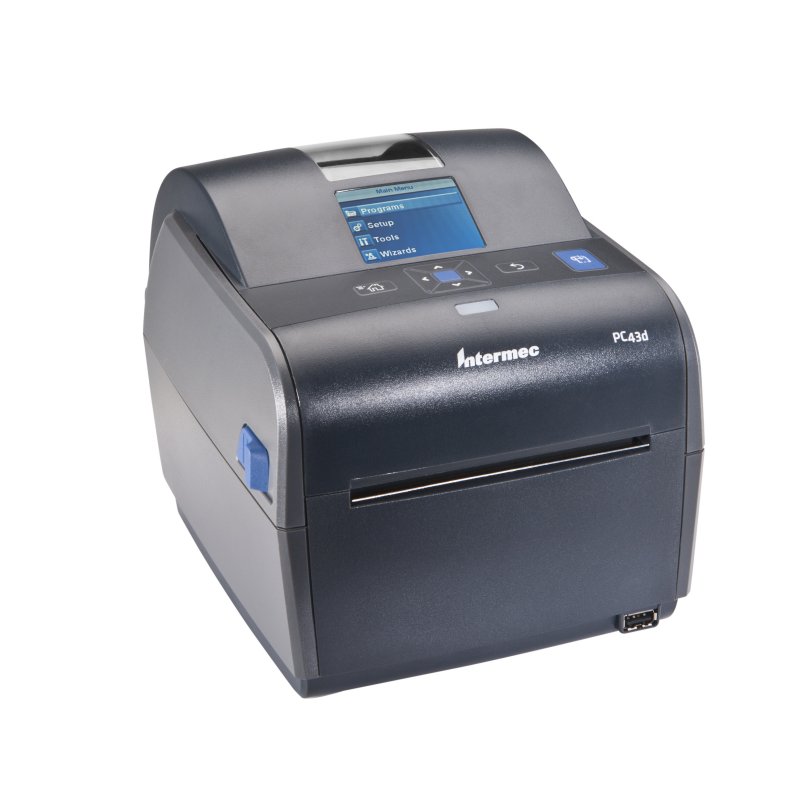

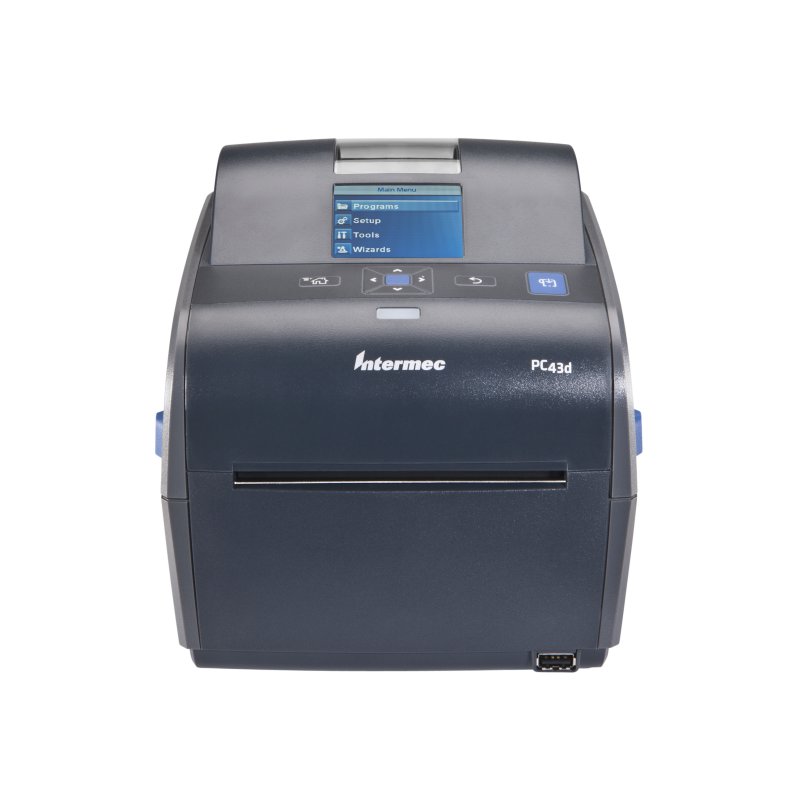

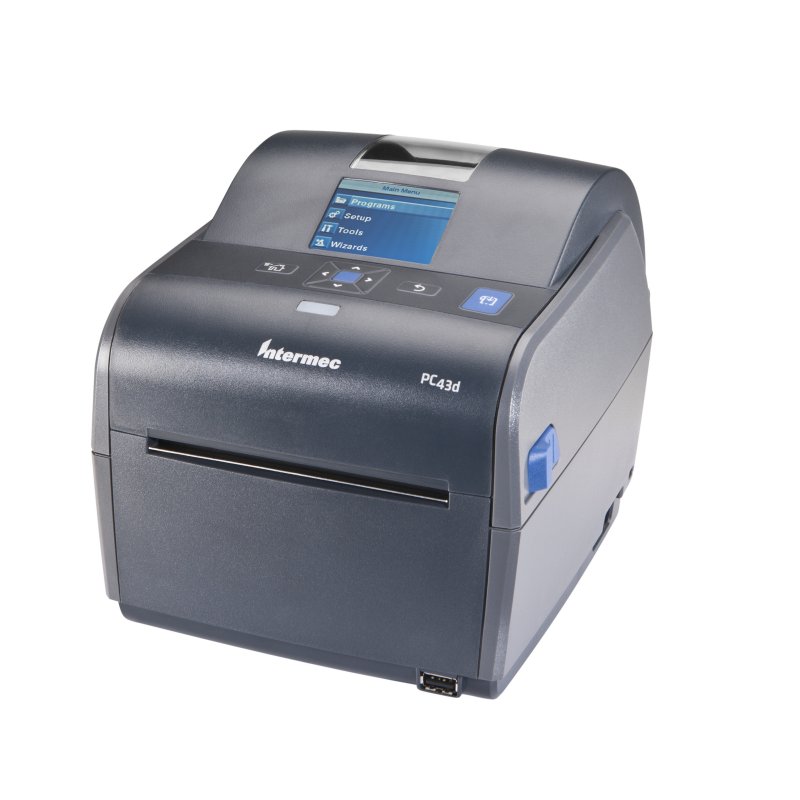

Honeywell PC43 Label Printers

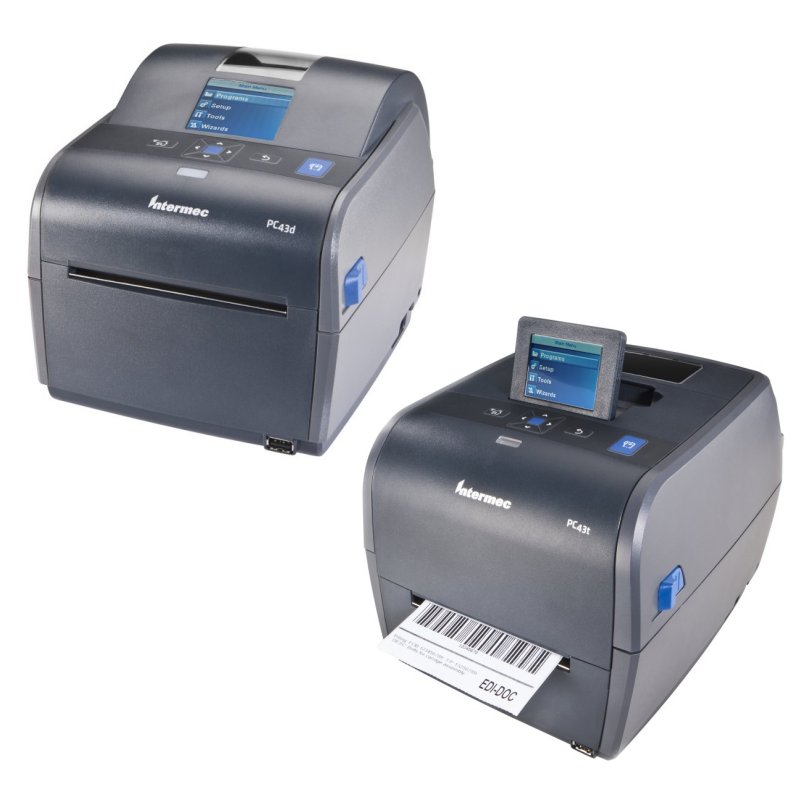

Are you looking for a versatile and easy-to-use desktop printer with a small footprint? The Honeywell PC43 printer series is the ideal choice. The printers are available as direct thermal (PC43d) or thermal transfer (PC43t) version. A combination of innovative design and superb functionality with customer’s specific needs in mind make the PC43 series’ printers a true asset.

Add to wishlist Request consumables Downloads

HONEYWELL PC43 SERIES: Space Saving and Super Simple

  • small: perfect for constrained spaces
  • easy: LCD display supporting 10 languages or icon-based user interface
  • fast: high printing speed of up to 8 ips
  • flexible: several field-installable interfaces for simple integration

The Honeywell PC43 series desktop printers are particularly easy to use. Either they come with a multi-language LCD color screen or with user-friendly icon-based operator interface. The variable desktop printers support all common printer command languages, such as IPL, DP, ZSim2 etc. The printers are easy to set up and configuration as well as installation of updates can be made comfortably via USB thumbdrive.

A fast print speed of 8 ips for 203 dpi and 6 ips for 300 dpi ensures a smooth workflow and high-quality results at the same time. To increase convenience, additional peripheral USB devices such as keyboards or barcode scanners can be connected. The Honeywell PC43 series’ outstanding feature is simplicity. Media can be changed with one hand and large ribbon lengths of up to 300 m reduce downtime immensely.

Depending on existing structures, standard interfaces (USB Device Type B connector v 2.0 high speed, USB Host Type A connector v 2.0 high speed) can be extended with several field-installable options: Etherenet 10/100 Mbps module, dual radio module (802.11 b/g/n and Bluetooth 2.1), USB to serial adapter (RS-232), USB to parallel adapter.

The optional battery base bay presents another highlight of the Honeywell PC43 printers. The battery base bay is mounted to the bottom of the printer where the battery can be inserted and conveniently exchanged if necessary. Use the printer either stationary or mobile with this most useful feature, making the printer even more versatile and offering up to 8 hours of mobile first-class printing performance.

Without any doubt, the Honeywell PC43 series printers contribute to increased productivity by providing clear, simple operating steps, high functionality and maximum flexibility.


Technical specification

Product Category Label Printers
Category Desktop Printers
Manufacturer Honeywell
Resolution 203 dpi|300 dpi
Interface USB, 10/100 Ethernet, USBN
Printing Method thermal transfer/direct thermal|direct thermal
Printing Width 104 mm|106 mm
Maximum Print Speed 203 mm/s|152 mm/s
Maximum Print Length 91,1 m|300 m
Minimum Print Width 19 mm
Maximum Print Width 118 mm
Maximum Material Length 1727 mm|990 mm
Printer Language IPL, Fingerprint, ZPL II, EPL2, DPL, XML
Media Handling Standard|Real Time Clock
RFID-Option No
Display-Option Yes|No

Downloads

Datasheet Honeywell PC43 (EN)
