Nordic ID AR-Series RFID-Reader

The AR RFID reader series by Nordic ID provides a highly adaptable approach for automated indoor RFID reading processes. It offers a RAIN-based RFID fixed reader platform that can be tailored to different environments and requirements. Depending on the application field, they can be equipped with different port options, antenna solutions and communication options. Three models come with an integrated CPU enabling flexible software development and the implementation of third-party apps. Create an RFID reader system according to individual needs and benefit from premium RFID reading performance.

Add to wishlist Downloads

NORDIC ID AR-SERIES: Customized RFID Reader Solutions

  • customizable: devices with or without CPU, optional WiFi connectivity
  • precise: highest reading accuracy, UHF RFID
  • fast: reading speeds of up to 1000 tags/second
  • uncomplicated: compatible with other Nordic ID readers
  • effective: versions that cover an area of up to 120 m²

The Nordic ID AR series comprises 5 fixed RFID reader models:

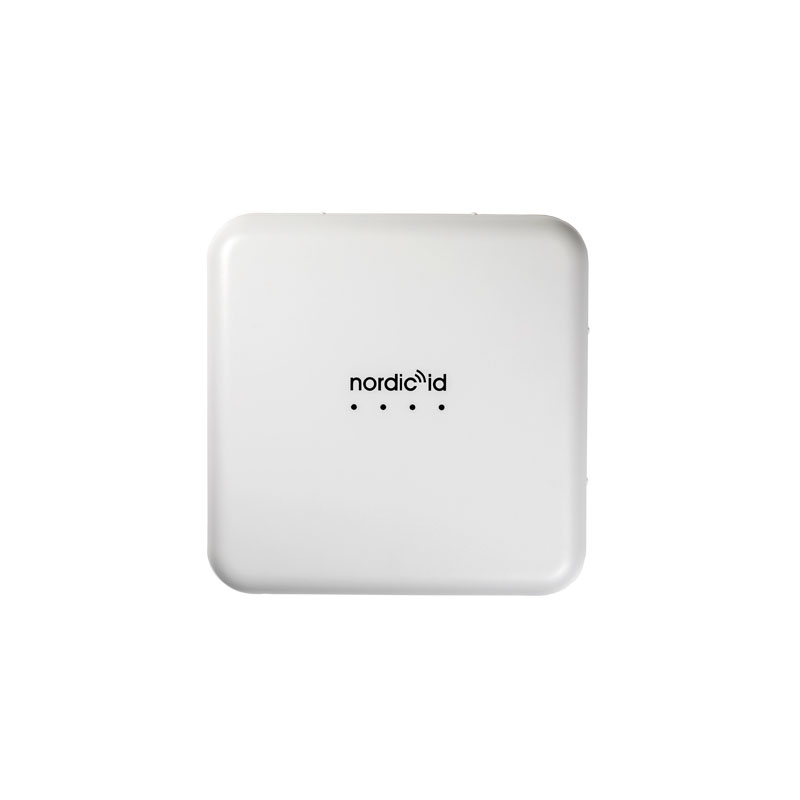

Nordic ID AR85:

The Nordic ID AR85 RFID reader excels with an advanced antenna solution for large area monitoring of tagged items suitable for an area of up to 120 m². It reliably detects the location and movement of items. The advanced antenna technology ensures reduced interference with other wireless devices. The AR85 reader comes with an integrated 1.2 GHz quad-core Cortex-A53 processor, with 64-bit architecture. It provides 1 GB RAM and 4 GB Flash memory and runs a Debian-based embedded Linux operating system. The sophisticated UHF RFID reader reaches extraordinarily high reading speeds of up to 1000 tags per second and is able to recognize even difficult-to-read RFID tags. The Nordic ID AR85 is suitable as WLAN access point. It provides 3G connectivity and is equipped with a mini SIM slot. Ports: USB host type A, USB device type B, Ethernet 10/100. Dual band WiFi 802.11 a/b/g/n (2.4 GHz and 5 GHz) is available as option. The AR85 supports LLRP.

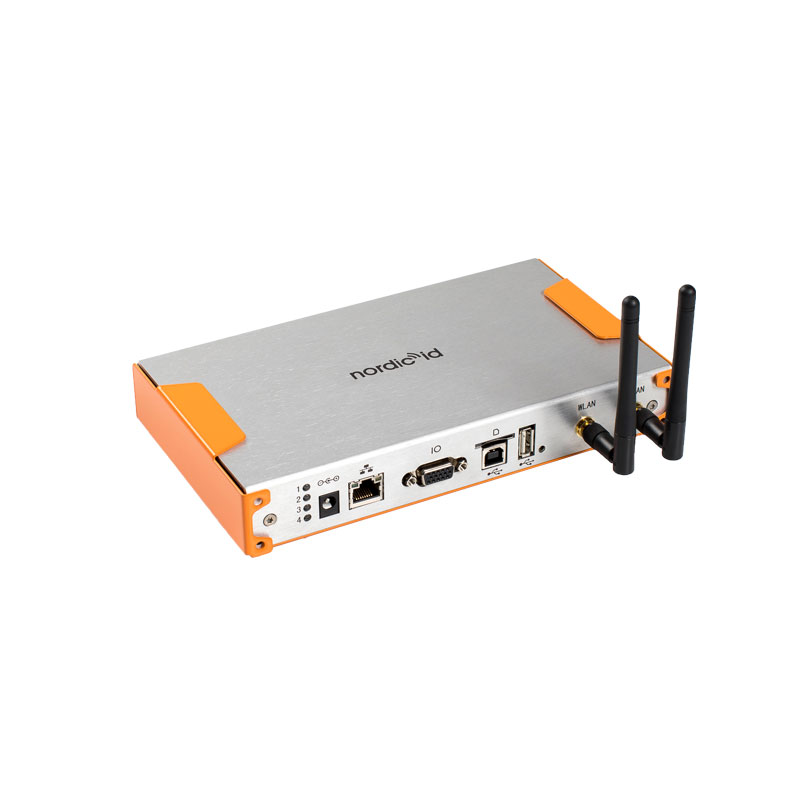

Nordic ID AR82:

The Nordic ID AR82 is a 16-port area RFID reader with highly isolated external antenna ports to prevent erroneous cross-reading of RFID tags. Therefore, the AR82 is recommendable, for example, for shelf reading tasks. The extremely efficient device reads tags at a speed of up to 1000 tags/second. It has a 1.2 GHz, 64-bit quad-core Cortex-A53 CPU with 1 GB RAM and 4 GB Flash and is equipped with the Linux operating system. The Nordic ID AR82 offers 3G capabilities as well as Ethernet 10/100. Integrated ports are USB host type A and USB device type B. Low Level Reader Protocol (LLRP) interface is supported. Optionally, dual band WiFi 802.11 a/b/g/n (2.4 GHz and 5 GHz) is available.

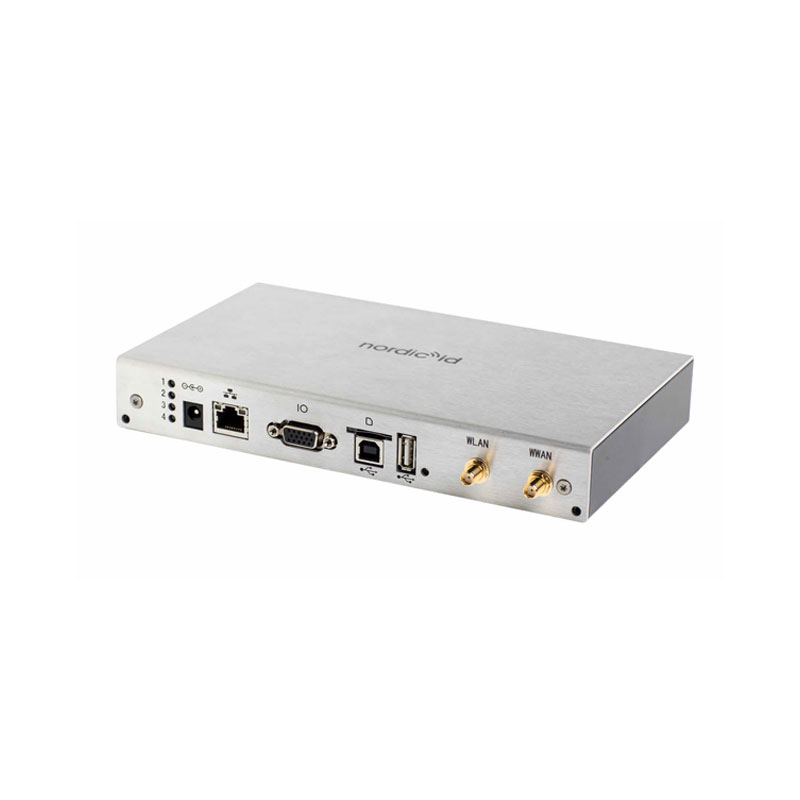

Nordic ID AR62:

The AR62 by Nordic ID is a UHF RFID reader with 4 antenna ports, ideal for high-performance automated data collection, for example, for RFID gate or tunnel gate applications. It comes with a Linux-based 1.2 GHz quad-core processor, a Cortex-A53 CPU with 64-bit architecture providing 1 GB RAM and 4 GB Flash memory. Fast reading speeds of up to 1000 tags per second ensure efficient procedures. The AR62 supports LLRP and is equipped with 3G capabilities and Ethernet 10/100. Additionally, WLAN 802.11 a/b/g/n (dual band 2.4 GHz and 5 GHz) can be integrated as option enabling the AR62 to work as an access point for other RFID readers. Ports: USB host type A, USB device type B.

Nordic ID AR55:

The Nordic ID AR55 is a UHF RFID reader for automated area monitoring or gate data acquisition solutions. It can cover areas of up to 120 m², recognizing the location and movement of items with RIFD tag. The AR55 contributes to transparent and efficient procedures and provides high reading accuracy. It reads RFID tags at a speed of 200 tags per second and is equipped with Ethernet 10/100 and a USB device type B port. Built-in WLAN 802.11 b/g/n is available as option.

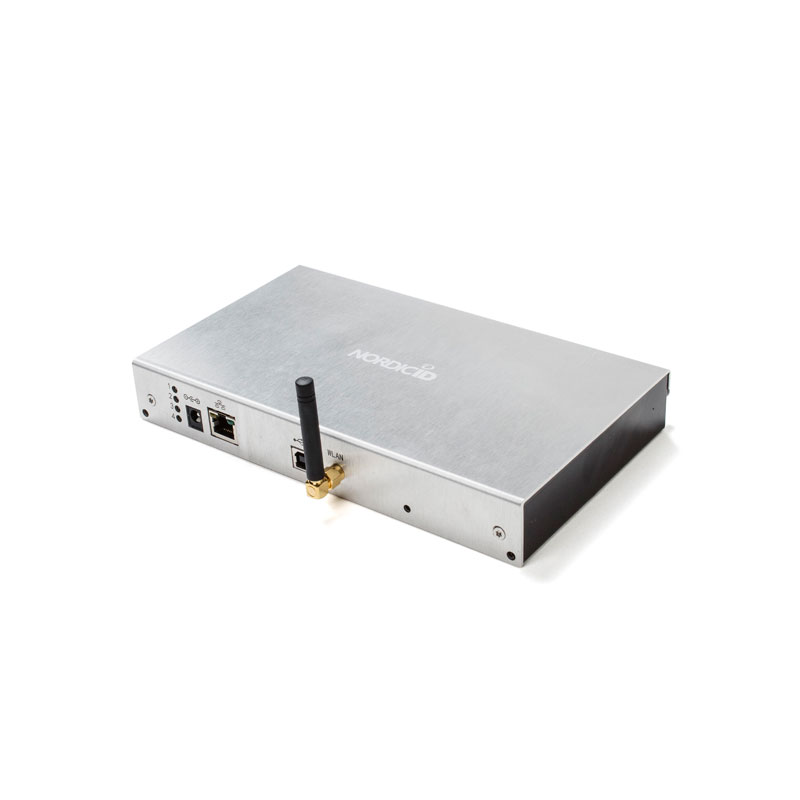

Nordic ID AR52:

The Nordic ID AR52 fixed RFID reader stands out because of its 16 external antenna ports, which can be individually controlled from one central location. The AR52 is an ideal solution, where specific antenna systems are required, for example, in environments with metal equipment. It reads RFID tags at a speed of 200 tags per second. The AR52 RFID reader is equipped with Ethernet 10/100 and provides a USB port. The AR52 by Nordic ID is available with WiFi 802.11 b/g/n as option. It is suitable for Windows, Android or Linux operating systems.

The Nordic ID AR series provides a wide spectrum of RFID solutions for different requirements and environments. Are you in need of a tailored solution for your enterprise? Please feel free to contact us. Our team of technical experts is always at your service to provide support and advice.


Technical specification

Category Barcode Scanners
Manufacturer Nordic ID
Scan Technology UHF-RFID
Interface USB, Ethernet 10/100 (optional 3G and/or WLAN)
Sealing IP20
Operating Temperature -20°C to +55 °C
Display No
Read Rate (max.) 200 tag/s, 1000 tags/s

Downloads

Datasheet Nordic ID AR52 (EN) Datasheet Nordic ID AR55 (EN) Datasheet Nordic ID AR62 (EN) Datasheet Nordic ID AR82 (EN) Datasheet Nordic ID AR85 (EN)
