Panasonic TOUGHBOOK CF-20 Mobile Computers

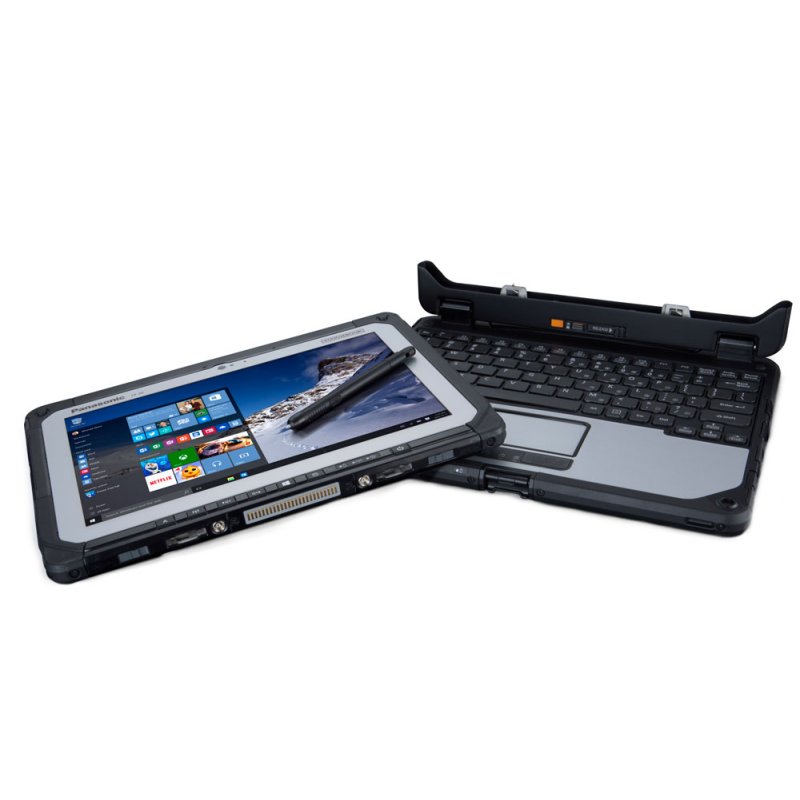

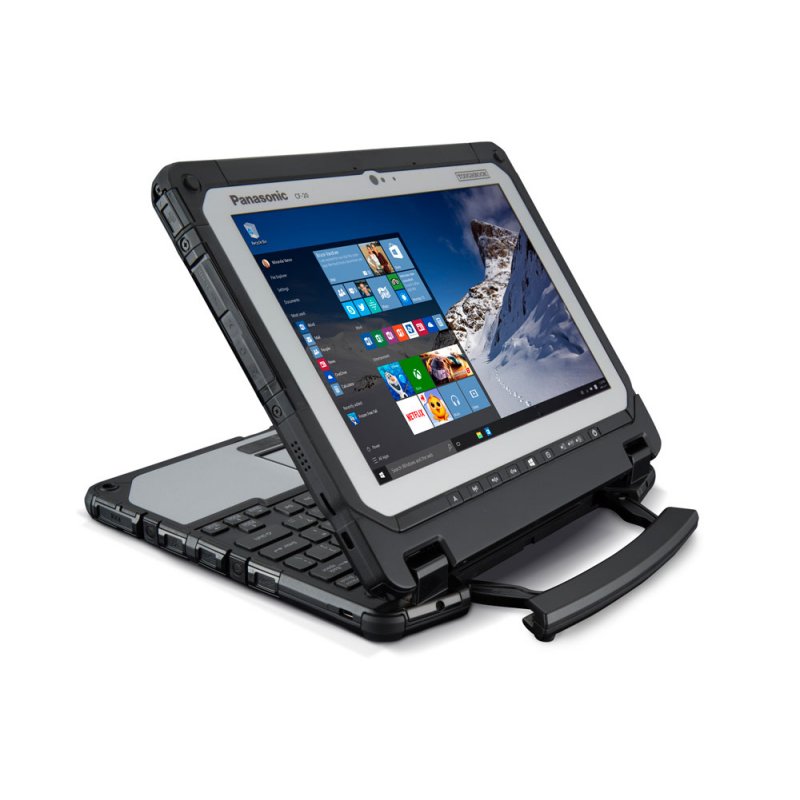

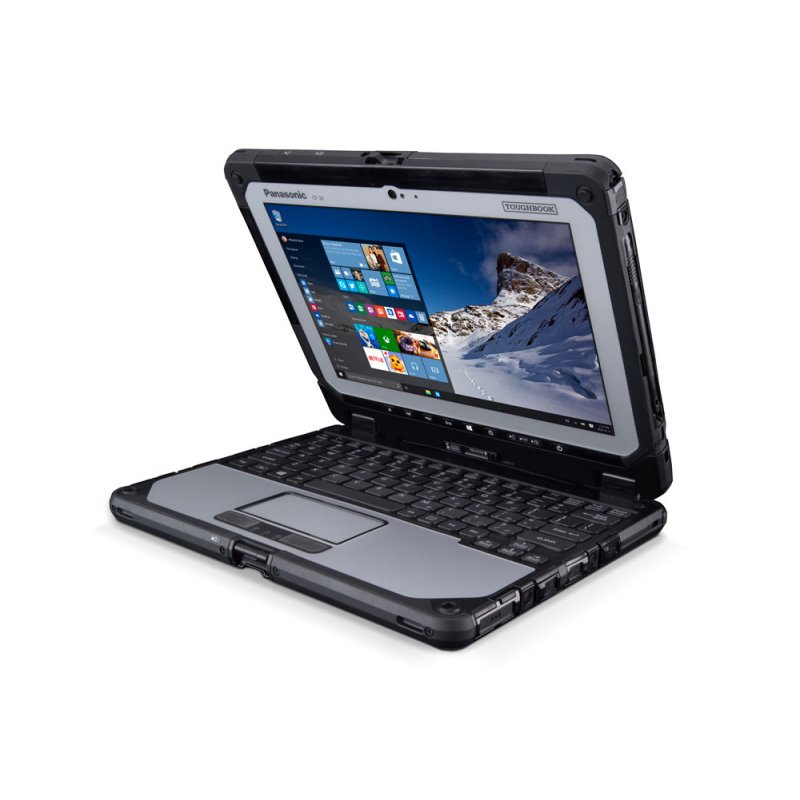

Are you a field professional in need of sophisticated computing performance? Would you prefer a notebook or a tablet computer? Or would you rather like to enjoy the advantages of both? The Panasonic TOUGHBOOK CF-20 merges both into one device. Use this extremely rugged mobile computer as notebook, tablet, in presentation, convertible or handle mode or mounted in a vehicle – all is possible and makes the CF-20 so versatile. A number of integrated options and accessories make sure that, no matter what your requirements are, they can be met.

Add to wishlist Downloads

PANASONIC TOUGHBOOK CF-20: Rugged, Professional, Customizable – The Second Generation

  • versatile: choose from a range of integrated options and peripherals
  • powerful: Intel Core i5-7Y57 vPro 1.2 GHz up to 3.3 GHz with Turbo Boost + Windows 10 Pro
  • ultra-rugged: drop resistance up to 120 cm, IP65, MIL-STD-810G, -29 °C to +60 °C

The second generation of Panasonic’s TOUGHBOOK CF-20 has a lot to offer and is a reliable tool to deal with all sorts of professional tasks. Its powerful 7th generation Intel Core processor along with the Windows 10 Pro operating system ensures efficient data processing and comfortable use. The CPU comes with 4 MB Smart Cache and 8 GB RAM. Equipped with 256 GB SSD, the Panasonic TOUGHBOOK CF-20 provides large storage capacity.

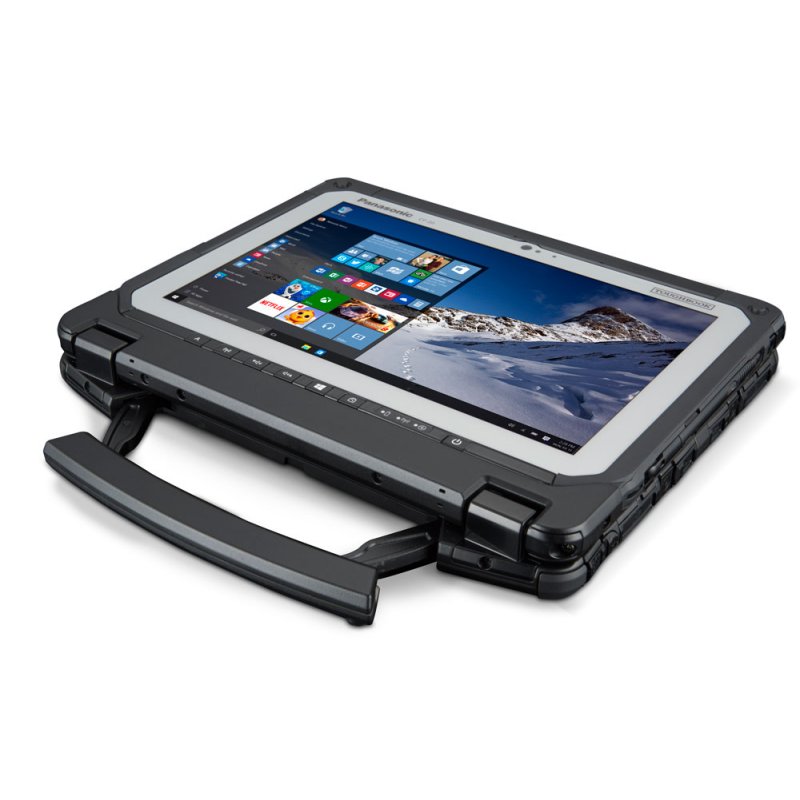

The extremely bright 800-nit 10.1-inch capacitive touchscreen with IPS technology is optimally visible under any lighting conditions and can be operated even with gloves or when the surface is wet. Slightly larger keyboard keys and a stylus pen enable smooth data input. Optional, there is a IP55 digitizer pen available. With one hand, the main unit can be detached from the keyboard base and used as a tablet. The handle grip for convenient transportation can be used as a kickstand as well.

The new TOUGHBOOK CF-20 detachable laptop offers an improved 8-megapixel rear camera with advanced image capture technology for best results even in low-light environments. It also features optimal battery performance (8.5 hours) and convenient hot-swap capability for extended runtime.

Field work requires a high degree of durability. The new generation TOUGHBOOK CF-20 notebook by Panasonic excels with ultra-rugged design. Due to its extra-strong magnesium alloy housing and impact protection, it can withstand drops from a height of up to 120 cm. The TOUGHBOOK is protected against shock and vibration complying with MIL-STD-810G. It is sealed against the ingress of water and dust to qualify for protection class IP65. Also, the wide temperature range, from -29 °C to +60 °C ensures that the TOUGHBOOK CF-20 can cope with all kinds of challenging environments – indoors or outdoors. Still, the detachable computer unit weighs as little as 1.89 kg.

Customize the Panasonic TOUGHBOOK CF-20 according to individual needs. Choose between a variety of integrated options: barcode reader, 4G LTE, GPS (U-Blox NEO-M8N), magnet stripe reader, smartcard reader, NFC reader, fingerprint reader. A wide range of interface options as well as peripheral devices ensure multi-functional use.

The 2nd generation of Panasonic’s TOUGHBOOK CF-20 features new security options. For hardware security, it is equipped with 2 Kensington Lock slots. The improved 2-megapixel front camera supports Windows “Hello” and allows 3D face authentication by means of IR sensors. Another security feature is the integrated TPM chip for encryption and decryption of data. Additionally, the extremely flexible computer is available with removable SSD drive as an option (from late summer 2018).

The Panasonic TOUGHBOOK CF-20 – a multi-faceted detachable notebook that is suited for any location and task that requires strong performance, high security and physical durability.

Technical specification

Product Category Mobile Computers
Category Tablet PC
Manufacturer Panasonic
Display Size 10.1"
Communication Interface USB, Serial, WLAN, LAN
Operating System Microsoft Windows 10|Microsoft Professional 7
CPU Intel Core m5-6Y57 vPro
Memory 8 GB RAM
Expansion microSD
Camera Front: 2 Megapixel, Main: 8 Megapixel
Sealing IP65
Operating Temperature -29°C to 60°C
Touchpanel capacitive touchscreen
Special Features 10.1" Fully Rugged PC For Use as a Laptop or Tablet, Sunlight-viewable Display Works With or Without Gloves, Optional Bridge Battery Enables Hot-swapBattery Replacement for Continuous Use


Datasheet Panasonic TOUGHBOOK CF-20 (EN)
