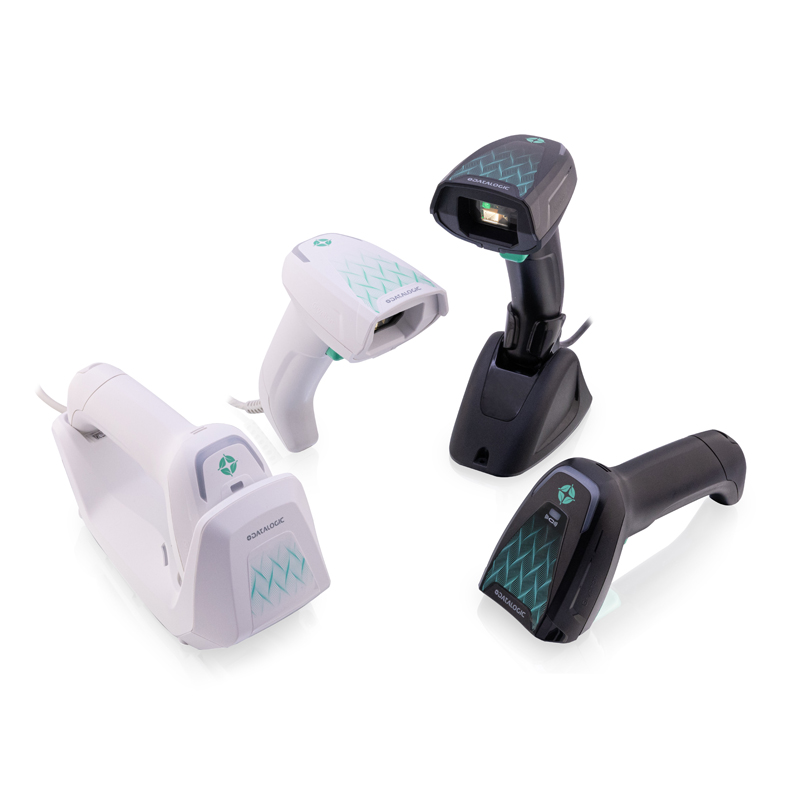

Datalogic Gryphon 4600 Series: Premium 2D Barcode Scanner for Maximum Performance
Maximum Scanning Performance with AI and Dual-Core Processor
The Gryphon 4600 Series combines a fast dual-core processor with AI-driven algorithms and advanced neural barcode decoding. Even damaged, poorly printed, or distorted barcodes are captured quickly and reliably. Reflective, glossy, or curved surfaces are handled with ease.
The scanner reads all common 1D and 2D codes omnidirectionally, including:
• GS1 Digital Link
• Data Matrix, QR Code, Aztec
• PDF417 and stacked codes
• Digimarc Digital Watermarking
• OCR-A, OCR-B, and MICR
This makes the Gryphon 4600 the ideal solution for modern POS systems, mobile coupons, digital watermark applications, and industrial environments.
Dual Optics for Near and Far Range (HP Models)
The High Performance (HP) models feature an innovative dual-sensor system (1.5 MP + VGA), delivering exceptional depth of field. Barcodes can be captured quickly from both close-up and longer distances.
With motion tolerance up to 70 IPS, first-pass reads are achieved even on fast-moving codes — ideal for high-throughput checkout systems or production lines.
Intuitive Scanning with Green Spot & 3GL™
A highly visible green cross LED aimer ensures precise targeting. Datalogic’s exclusive “Green Spot” technology provides visual good-read confirmation directly on the barcode. This is complemented by 3GL™ (3 Green Lights) and optional vibration feedback on cordless models.
The switchable dual-color illumination (warm white and red) allows flexible adaptation to different lighting conditions and application needs.
Wireless Freedom with Bluetooth 5.2 or STAR Cordless System
Cordless models support:
• Bluetooth 5.2 (Classic & BLE) with up to 100 m range
• Datalogic STAR Cordless System (433/915 MHz) with point-to-point or multipoint configuration
Multiple scanners can be connected to a single base station, significantly increasing productivity in multi-user environments.
Inductive Charging & Flexible Power Options
The innovative inductive charging system reduces maintenance since there are no exposed contacts to clean. This ensures reliable 24/7 operation.
Two power options are available:
• Lithium-Ion battery (3,250 mAh) – over 80,000 scans per charge
• SuperCap capacitor (battery-free) – extremely fast charging times
This flexibility allows the Gryphon 4600 to adapt perfectly to different operational requirements.
Rugged Design for Professional Applications
With 1.8 m drop resistance, IP52 sealing, and high ESD protection, the scanner is built for demanding daily use. A trigger lifetime of 10 million activations ensures long-term reliability.
Healthcare models feature disinfectant-ready housings with antimicrobial treatment (ISO22196 compliant), making them ideal for laboratories, pharmacies, and in-room patient care.
Sustainability and Ecodesign
The Gryphon 4600 Series was developed following an LCA-based Ecodesign approach. More than 70% of the plastic components are made from recycled materials and are fully recyclable. Optimized energy efficiency, reduced packaging, and increased product durability help lower the overall carbon footprint.
Technical specification
| Product category | Barcode Scanners |
| Category | Handheld Scanners |
| Manufacturer | Datalogic |
| Scan-Technology | 1D & 2D Imager (including GS1 Digital Link, Digimarc Digital Watermarking, OCR) |
| Interfaces | Cordless: USB Type-C / USB / RS-232 (Multi-Interface) Corded: USB Type-C / USB (HD) or USB Type-C / USB / RS-232 (HP) |
| Color Options | Black or White (Healthcare version available) |
| Ssealing | IP52 |
| Operating Temperature | 0°C to 50°C |
| Display | no |
