Advantech DLoG DLT-V8310 Vehicle Mounted Computers

With the Advantech DLoG DLT-V8310 vehicle terminal, operations can be performed smoothly even in difficult environments. In areas such as logistics, industry or mining, reliable technology and robust materials are essential. Advantech DLoG's DLT-V8310 offers state-of-the-art technology in an extremely robust packaging. It can also be optimally adapted to your individual needs.

Add to wishlist Downloads

ADVANTECH DLoG DLT-V8310: Modern Technology in Robust Packaging

  • clear: 4″ TFT color display
  • frictionless: uninterruptible power supply (UPS)
  • flexible: temperature range – 30 °C to + 50 °C
  • robust: protection class IP66, 5M3
  • easy to integrate: Windows or Linux operating systems

With a range of interfaces, you can easily integrate the DLT-V8310 into your existing systems. Serial and USB come as standard. In addition, CAN, WLAN 802.11 a/b/g/h and Ethernet as well as Bluetooth are optionally available. The WLAN offers a specially developed antenna that ensures reliable data transmission even under unfavorable transmission and reception conditions. The operating systems include Linux, WES 2009, Windows 7 Embedded and Windows 7 Professional.

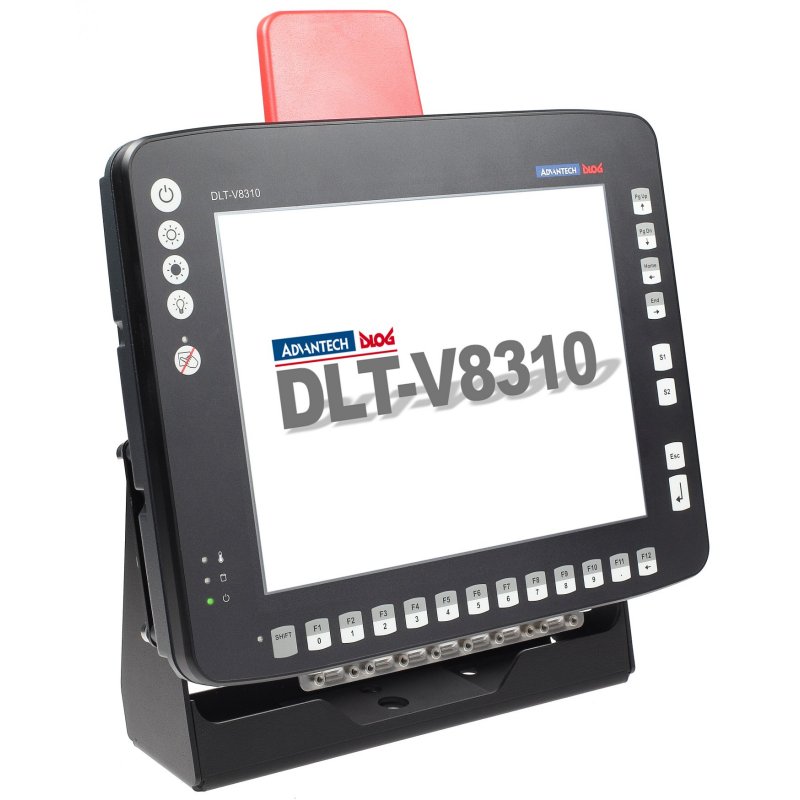

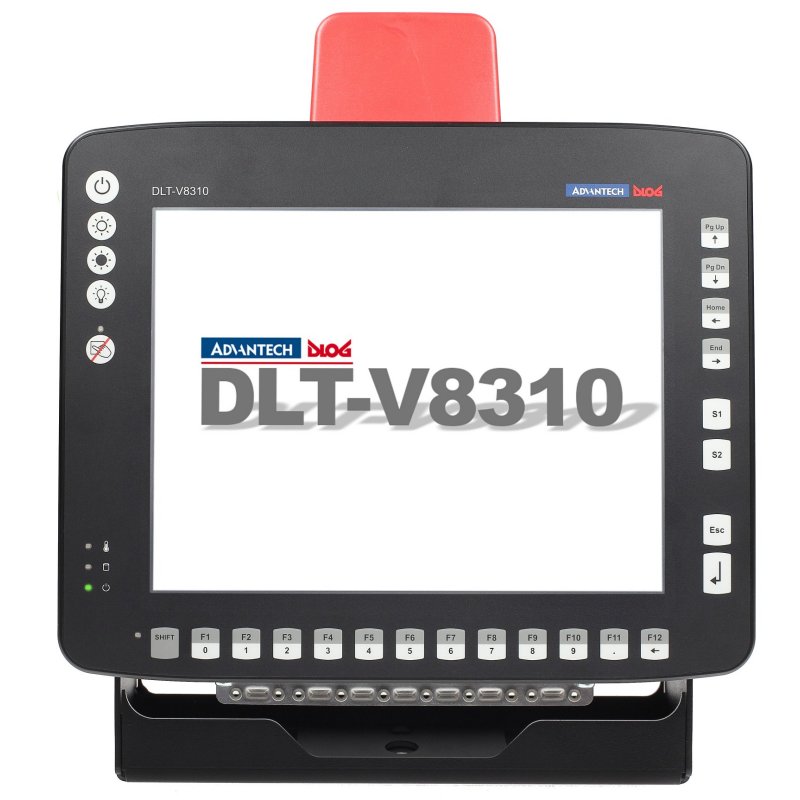

The 10.4″ color TFT screen is available as a resistive model with 5 or 26 front buttons and for low temperature working areas an optional screen defroster can be added. In addition, a capacitive multi-touch display (PCT) with 9 front buttons is available, which can be operated with gloves. The display is made of unbreakable glass. Operation of the Advantech DLoG DLT-V8310 resembles the operation of a smartphone or tablet so that it can be used intuitively.

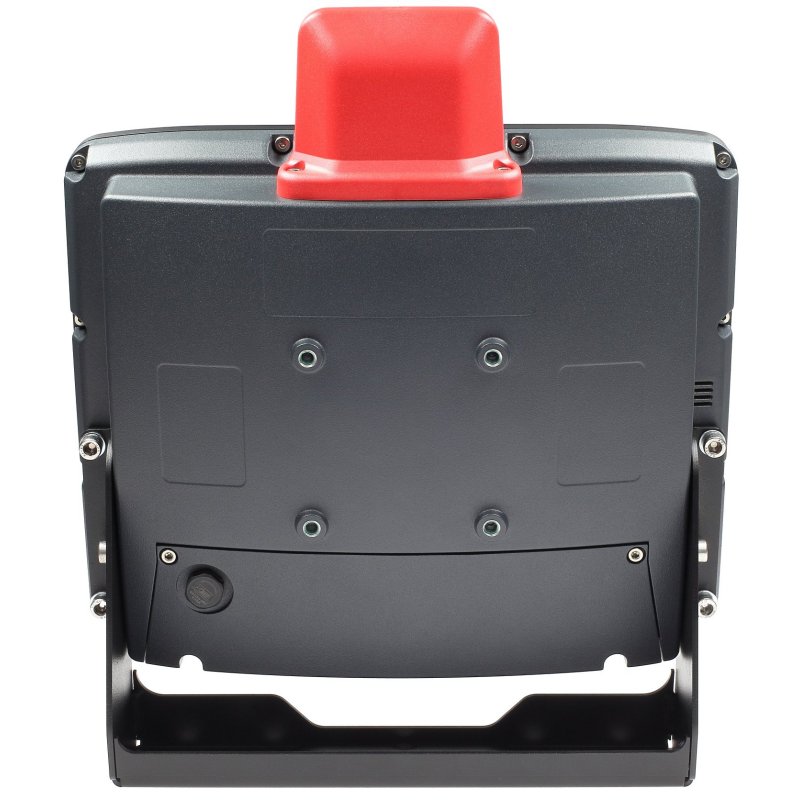

The large temperature range of -30 °C to +50 °C ensures a flexible use. The DLT-V8310 vehicle terminal is particularly resistant to water, snow, heat and dust. It can withstand shocks and vibration with no problem. There are several possibilities for mounting the device on the vehicle.

With its integrated uninterruptible power supply (UPS), the terminal can bridge up to 10 minutes without having to shut it down. Another additional option is the DLoG Voice-Kit for fast and uncomplicated communication without the need for additional devices.

Accessories Options:

  • scanners, scanner mounts
  • visor
  • terminal mounts
  • keyboards
  • USB stick

Technical specification

Product Category Mobile Computers
Category Vehicle Mounted Computers
Manufacturer Advantech
Display Size 10.4"
Communication Interface USB, WWAN, Bluetooth, CAN Interface, COM
Operating System Microsoft Windows7 Embedded, Win 7 Professional, WES 2009, Linux
CPU Intel Atom D525, Intel Core i5-4300U
Memory 2 GB RAM|4GB RAM
Expansion 4 GB
Sealing IP66
Operating Temperature -30°C to 50°C
Humidity 10% to 90%, non-condensing
Keyboard 5, 9 or 26 front keys
Special Features configureable for individual customer needs, breakproof display


Datasheet DLoG DLT-V8310 (EN)
