Advantech DLoG TREK-773 Vehicle Mounted Computers

The Advantech TREK-773 is a rugged computer terminal especially designed for in-vehicle applications. This powerful data terminal is equipped with essential features for mobile computing, such as a dependable dual core Intel Atom processor, WiFi, Bluetooth, 4G LTE, NFC and GPS. Additionally, it supports Intelligent Vehicle Power Management (iVPM 2.0) for trouble-free operation on vehicles. The Advantech TREK-773 offers the ideal formula for intelligent fleet management.

Add to wishlist Downloads

ADVANTECH TREK-773: Ruggedized Vehicle-Mounted Mobile Computer

  • strong: Intel Atom E3827 SoC CPU
  • flexible: for Win 10, WES8, WES 7, Ubuntu 14.04
  • versatile: WLAN, Bluetooth, LTE, NFC, GNSS, voice recognition, intelligent video analytics
  • mobile: Intelligent Vehicle Power Management (iVPM 2.0) for optimal in-vehicle use
  • solid: IP54, MIL-STD-810G, 5M3, temperature range: -30 °C to +60 °C

With the TREK-773 industrial mobile terminal, Advantech provides a highly effective computing solution. Its Intel Atom E3827 1.75 GHz dual core SoC processor includes up to 4 GB DDR3L (2 GB standard). A CFast and an SD card slot ensure large storage capacity according to individual needs. The computer runs WES8, WES7, Win 10 or Ubuntu operating systems.

The TREK-773 by Advantech is a mobile computer terminal particularly developed for in-vehicle applications. It is optimized for vehicle power, supporting ignition on/off/delay functions and system diagnostics. The ultra-rugged construction ideally suits in-vehicle operations. The TREK-773 data terminal is protected against the ingress of dust and water complying with protection class IP54. It can also withstand shock and vibration according to MIL-STD-810G and 5M3 standards. Due to a temperature range from -30 °C to +60 °C, the industrial mobile computer can be used even under the roughest conditions.

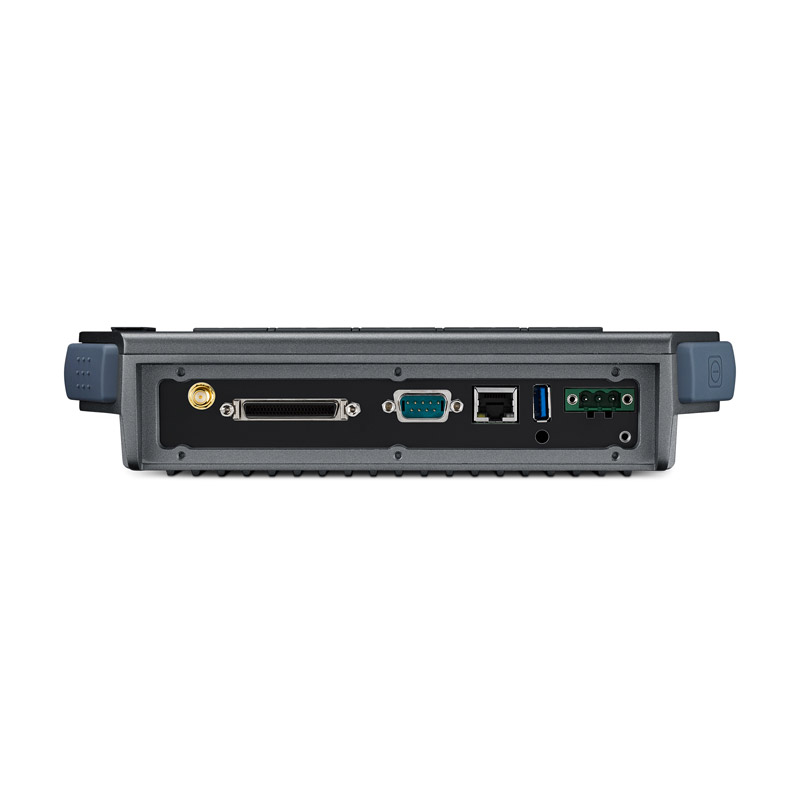

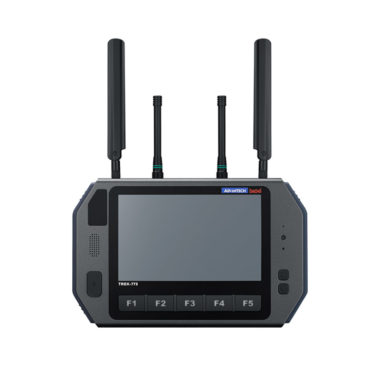

For highly flexible use, the compact Advantech TREK-773 mobile computing unit provides various wired and wireless connection options. It is equipped with Gigabit Ethernet, CAN bus and J1708 etc. connections. Additionally, it offers WLAN, Bluetooth, 4G LTE, NFC and GNSS. The 7-inch touchscreen (optionally with sunlight viewable display) and 5 user-configurable keys enable convenient and uncomplicated operation.

Without a doubt, the extremely robust Advantech TREK-773 industrial vehicle terminal fulfills highest requirements for mobile computing applications.

Technical specification

Product Category Mobile Computers
Category Vehicle Mounted Computers
Manufacturer Advantech
Display Size 7"
Communication Interface USB, GPS, WLAN, Bluetooth, CAN, NFC, WWAN
Operating System Microsoft Windows Embedded 8 Standard
CPU Intel Atom E3827 (Dual Core, 1.75GHz)
Memory 16 GB
Sealing IP54
Operating Temperature -30°C to 60°C
Keyboard 5 function keys
Touchpanel resistive touchscreen


Datasheet DLoG Trek-773 (EN)
