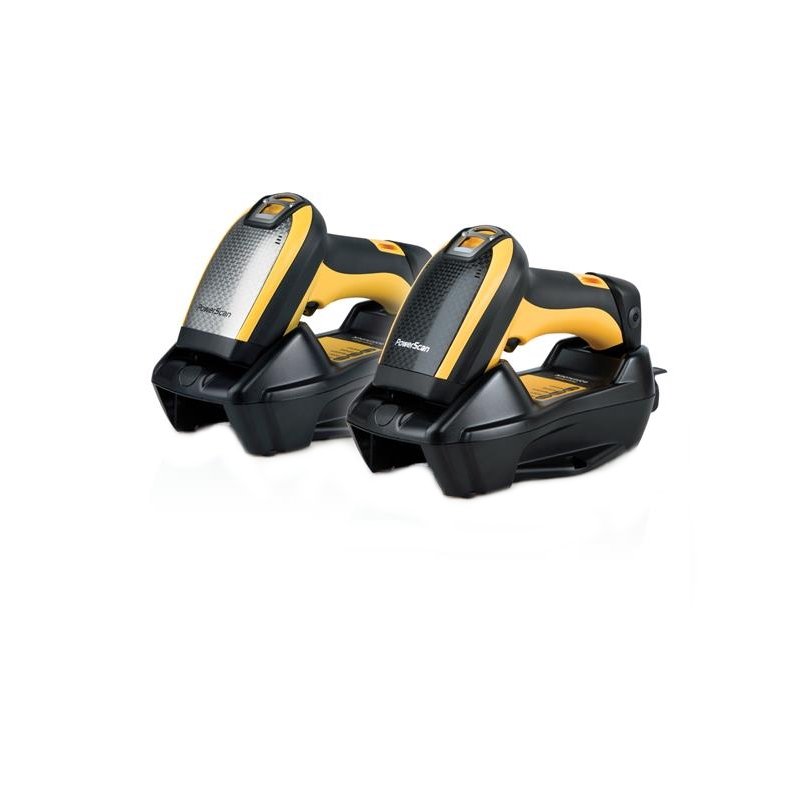

Datalogic PowerScan PBT9500-DPM Evo Barcode Scanner

DPM codes can be attached directly to the object without a label by various methods. For example, they can be etched, lasered or embossed into the material. To read these codes you can not use a conventional scanner that reads 1D and 2D barcodes. Datalogic has created scanners with the PowerScan 9500-DPM Evo series that can decode exactly these codes. This includes the wireless PBT9500-DPM Evo.

Add to wishlist Downloads

Datalogic‘s PowerScan PBT9500-DPM Evo: Comfortable but Rugged

  • user-friendly: white light for particularly gentle scanning
  • robust: protection class IP65
  • mobile: wireless scanner with various communication ports
  • comfortable: ergonomic shape ensures good handling
  • powerful: aggressive omnidirectional reading

The Datalogic PowerScan PBT9500-DPM Evo makes scanning quick, easy and intuitive. This is possible by the latest optics and software. Depending on the DPM technology, the surface of the object and the resolution of the codes, the reading distance of contact is 4-5 cm. Furthermore, the detection of conventional 1D and 2D barcodes is possible. Thanks to the high-resolution optics, the PBT9500-DPM Evo barcode scanner can also read particularly small, high-resolution codes. Here, the distance is 0-15 cm.

By default, the PBT9500-DPM Evo Barcode Scanner is equipped with Bluetooth 3.0, for special software commands the barcode scanner can also be configured to radio class 1. Then the scanner gets a range of up to 40 m or 90 m.

As usual for Datalogic, the PBT9500-DPM Evo barcode scanner are known for their ease of use. Thanks to its ergonomic shape, the device is not only easy to hold, it is also more comfortable for the eyes thanks to the new lighting system and gentle white light.

Equipped with the Motionix technology, the PBT9500-DPM Evo recognizes the movements of its user and automatically switches to the correct scanning mode.

If you are reading out DPM codes in your company and are looking for a user-friendly, innovative barcode scanner, then the PBT9500-DPM Evo is a good choice.


Technical specification

Product Category Barcode Scanners
Category Handheld Scanners
Manufacturer Datalogic
Scan Technology 1D Imager|2D Imager
Interface Multi Interface (USB, KBW, RS232, Ethernet)
Colour Options yellow-black|silver-black
Sealing IP65
Operating Temperature -20°C-50 °C
Display No

Downloads

Datasheet Datalogic PD9530-DPM (EN)
