Forsis MASTER, 15″ LCD TFT Industrial Computers

Forsis specializes in computers for industrial environments. The IPCs offer up-to-date computer technology in a high-quality housing. The computers are uncomplicated to integrate and are characterized by high flexibility. To meet the unique needs of your business, you can choose from a range of processors, operating systems and interfaces.

Add to wishlist Downloads

FORSIS MASTER 1500 SBC XGA: Reliable through every Working Shift

  • versatile: choose between different processors and operating systems
  • resistant: IP65 (front), IP52 (connection side), die-cast aluminum housing
  • simple: easy to integrate thanks to numerous interfaces

The industrial PCs of the “Master 1500 SBC XGA” series are built for harsh environments. Due to the die-cast housing and the high degree of protection, the computers are ideally suited for all industrial and logistics areas.

For fast and reliable data collection and processing, you have the choice between different Intel processors. There are several Windows operating systems available. For the “A2C T” and “iC T” models, there is also an IGEL thin client version for Linux users.

Optional WLAN and RFID reader can be added.

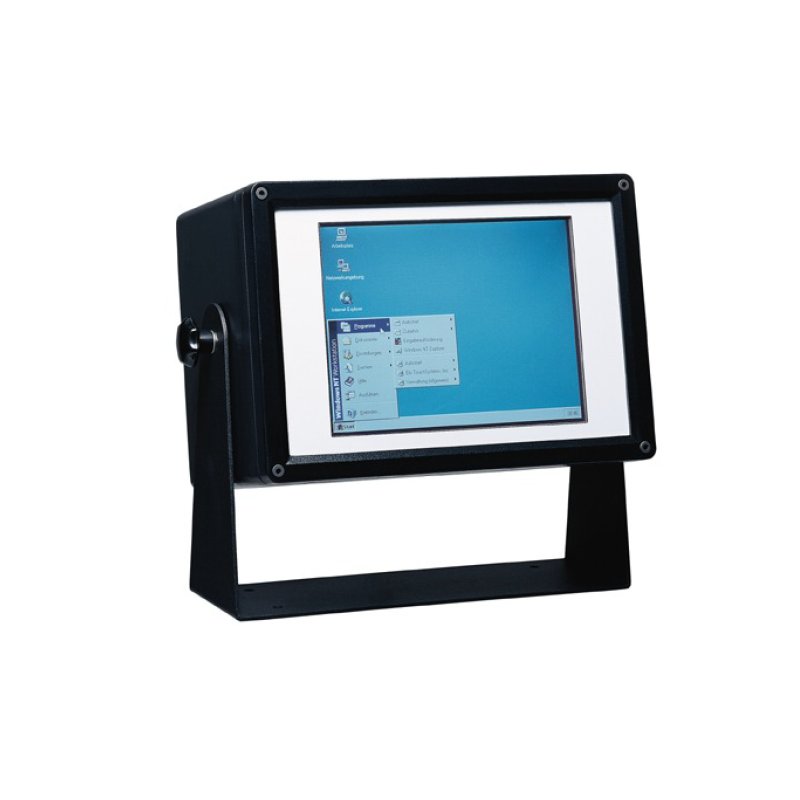

Master 1500 SBC XGA stationary with 15“ display:

SBC XGA A2C T:
CPU: Intel ATOM D525, 2 x 1,8 GHz, 4 GB RAM, SSD 128 GB
OS: Windows 7 or 8, Windows Embedded 7 or 8, IGEL
Interfaces: 4 x RS232, 4 x USB2, VGA, 1 x Ethernet 1000 Mbit/s, Mouse/KB, optional RS422/485
Slots: PCI 104, Mini PCIe 1 x full size

PCI2 XGA A2C T:
CPU: Intel ATOM D510, 2 x 1,8 GHz, 2 GB RAM, HDD 100 GB
OS: Windows 7 or 8, Windows Embedded 7 or 8
Interfaces: 4 x RS232, 1 x RS422/485, 4 x USB2, VGA, 1 x Ethernet 1000 Mbit/s, Mouse/KB
Slots: 3 x PCI
Additional Options: sound

SBC XGA iC T:
CPU: Intel Celeron 1047UE, 2 x 1,4 GHz, 4 GB RAM SSD 128 GB
OS: Windows 7 or 8, Windows Embedded 7 or 8, IGEL
Interfaces: 2 x RS232, 2 x USB2, 2 x USB3, DP, HDMI, VGA, 2 x Ethernet 1000 Mbit/s, optional RS422/485
Slots: Mini PCIe 1 x full size, 1 x half size

SBC XGA i3 T:
CPU: Intel Core i3 3217UE, 4 GB RAM, SSD 128 GB
OS: Windows 7 or 8, Windows Embedded 7 or 8
Interfaces: 4 x RS232, 2 x USB2, 2 x USB3, DP, HDMI, VGA, 2 x Ethernet 1000 Mbit/s, optional: RS422/485
Slots: Mini PCIe 1 x full size, 1 x half size

SBC XGA i7 T:
CPU: Intel Core i7 3555LE, 4 GB RAM, SSD 128
OS: Windows 7 or 8, Windows Embedded 7 or 8
Interfaces: 4 x RS232, 2 x USB2, 2 x USB3, DP, HDMI, VGA, 2 x Ethernet 1000 Mbit/s, optional RS422/485
Slots: Mini PCIe 1 x full size, 1 x half size

ISA XGA A T:
CPU: Intel ATOM N270, 1 x 1,6 GHz, 2 GB RAM, HDD 80 GB
OS: Windows 7 or Windows Embedded 7
Interfaces: 2 x RS232, 4 x USB2, VGA, 2 x Ethernet 1000 Mbit/s, Mouse/KB, optional RS422/485
Slots: 3 x ISA

PCI2 XGA A T:
CPU: Intel ATOM N270, 1 x 1,6 GHz, 2 GB RAM, HDD 80 GB
OS: Windows 7, Windows Embedded 7
Interfaces: 2 x RS232, 6 x USB2, VGA, 1 x Ethernet 1000 Mbit/s, Mouse/KB
Slots: 3 x PCI


Technical specification

Product Category Fixed Computers
Category Industrial Computers
Manufacturer Forsis
Display Size 15"
Communication Interface USB, Serial, VGA, HDMI, Display Port, Ethernet, WLAN
Operating System WES 7, WES 8, WIN 7, WIN 8, IGEL
CPU Intel Celeron 1047UE|Intel Core i3 3217UE|ATOM D525|ATOM N270
Memory 80 GB HDD|128 GB SSD
Expansion Mini PCIe
Device Material ALU die casting
Surface Treatment outside: powdered, inside: polished
Sealing Front IP65
Sealing Back IP52
Operating Temperature 0°C to 50°C
Humidity 0% to 90%
Touchpanel analog resistive touch screen
Special Features Reliable and robust. The Master series industrial computers represent what FORSIS refers to as“classic” machine terminals.
