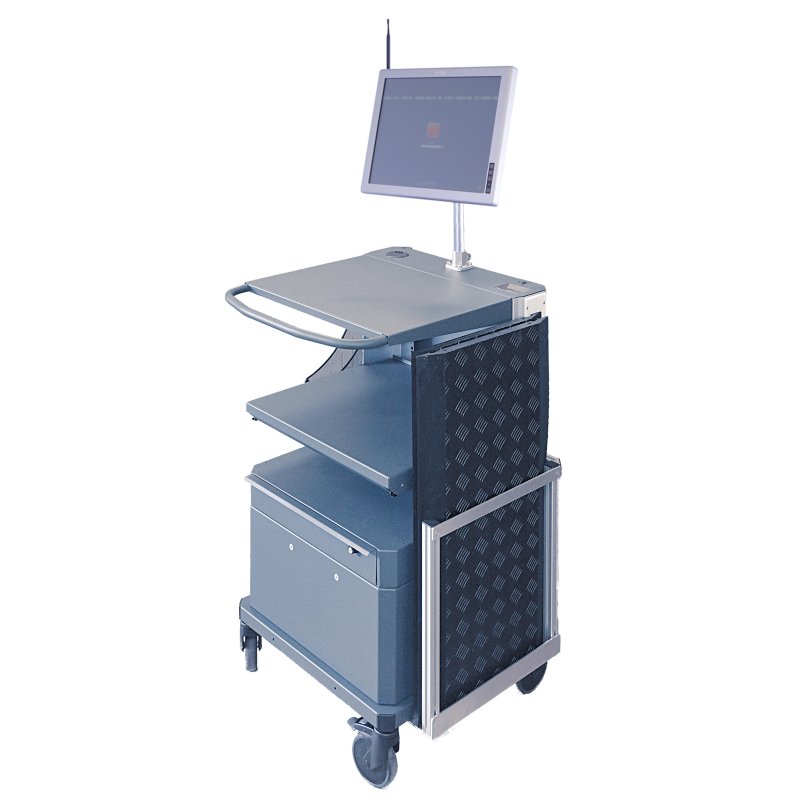

Solcon RFID-Mobile Trolley

A mobile RFID gate - the RFID mobile trolley from Solcon makes it possible. A single person can build up the RFID mats attached to the cart in a very short time and put an RFID gate of up to 14 meters width into operation. So goods can be read out locally and that at a stack height of no less than 5 meters.

Add to wishlist Downloads

SOLCON RFID MOBILE TROLLEY: Efficiency at its Best!

  • time-saving: read huge amounts of data in no time
  • easy: to be operated by one person
  • individual: company-specific requirements can be taken into account

Simultaneous reading of a vast amount of data, for example on goods that are equipped with RFID tags, is possible by readers that are installed in the mobile vehicle. On the mobile workstation, the necessary equipment can be accommodated to subsequently process the data on the computer.

The RFID mats have a length of approx. 1 m. Up to 16 pieces can be attached to the movable RFID trolley and plugged together if required.

The company Solcon offers a rechargeable battery-changing cart, which makes it possible to replace the battery during operation. Thus, the use can continue seamlessly and even a continuous operation in shift work is possible. The RFID mobile trolley is versatile, scans data on vehicles, boxes, people, etc. which are equipped with an RFID label reliably and accurately as soon as they pass through the gate.

The mobile RFID gate, together with the trolley, can be easily transported in a car.

Additional data for RFID mobile trolleys:

  • Dimensions: approx. 660 x 600 x 1100 mm
  • Shelf: approx. 510 x 510 mm
  • Drawer: approx. 600 x 600 x 90 mm
  • Weight: approx. 95 kg
  • Electrical equipment:

Chargers 21 A, 110 – 230 Volt AC
Battery packs 12V / 24V 70 Ah – 150 Ah
Voltage transformer (trapezoid or sine wave) up to 1200W
Voltage indication and undervoltage alarm
Voltage variants 12/24 Volt DC or 110/230 Volt AC
Country-specific power strip
WLAN connection (optional)

Additional data for RFID mats:

  • Dimensions: approx. 900 x 260 x 22 mm
  • General data:

Compact indoor / outdoor ground antenna IP 68
Accessible by car, truck or forklift truck
Reading angle from 20° to 80°
Reading range 3 – 5 m height
Combination of up to 16 antenna mats possible

  • Electrical equipment:

Frequency range UHF 868/915 MHz
Protection class IP 68
Antenna connection 30cm coaxial cable with SMA


Technical specification

Product Category Fixed Computers
Category Mobile Workstations
Manufacturer Solcon
Communication Interface WLAN
Special Features Can easily be operated by only one person

Downloads

Datasheet Solcon RFIDTrolley (EN)
