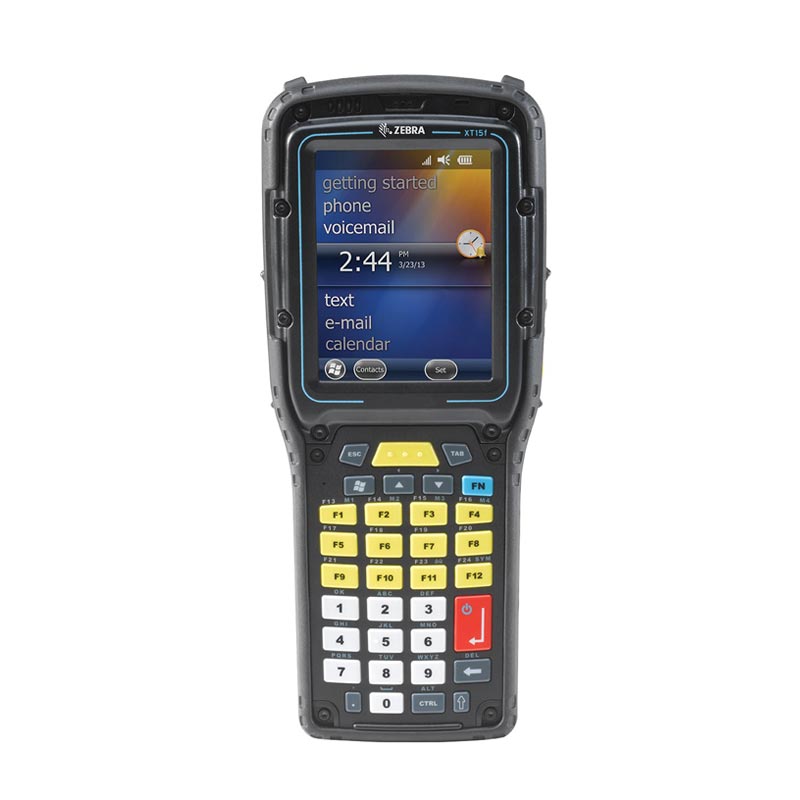

Zebra Omnii XT15 Mobile Computers

Due to its modular construction, the Zebra Omnii XT15 mobile computer provides maximum flexibility. According to needs, the ergonomic handheld data terminal can be customized and reconfigured by installing new hardware on-site. The innovative design leaves room for development.

Add to wishlist Downloads


  • versatile: modular design
  • rugged: IP67 + IP65, drop resistance: 2 m to concrete
  • adaptable: versions for hazardous environments and extremely low temperatures available
  • dependable: several wireless connectivity options (WLAN, Bluetooth, Narrowband (opt.), WWAN (opt.)

The Zebra Omnii XT15 PDA is suitable even for extreme environmental conditions. Its robust construction makes sure the device is protected against dust, low-pressure water jets and even temporary immersion in water (protection class IP67 + IP65). Therefore, the Zebra Omnii XT15 presents the ideal solution for outdoor applications, for example in transportation, manufacturing or warehousing environments. The mobile terminal can withstand multiple drops from a height of 2 m to concrete.

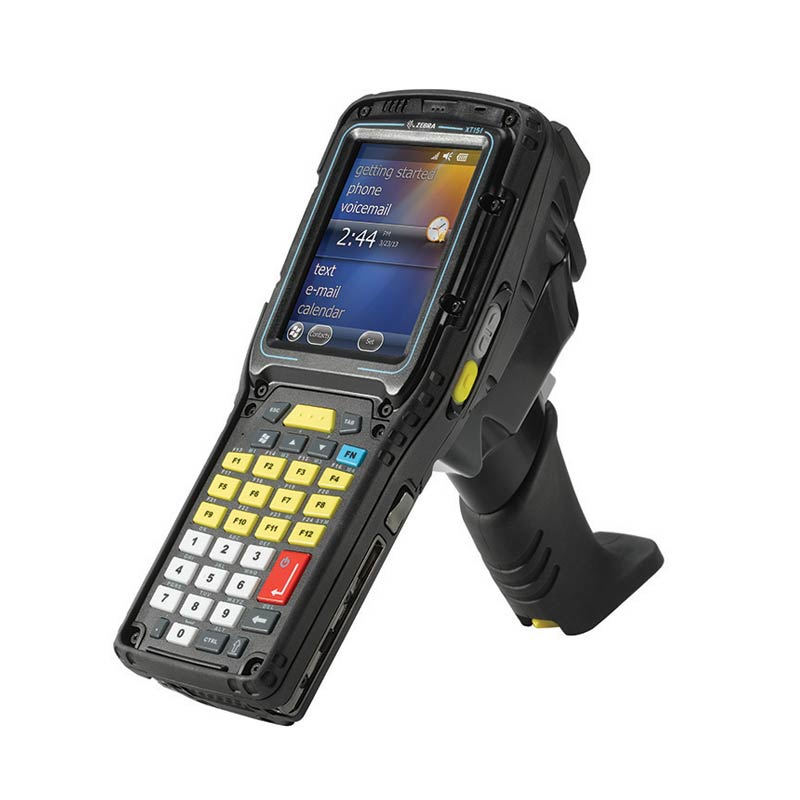

To allow optimal access to various business applications, the Zebra Omnii XT15 is equipped either with the Windows CS 6.0 or with the Windows Embedded Handheld 6.5 operating system. The Kiosk mode makes sure only job-related applications can be accessed. The Zebra Omnii XT15 has a bright, trans-reflective 3.7” touch display which is comfortably visible indoors and outdoors. For the Zebra Omnii XT15f there is a chiller display module for temperatures of -20 °C and an arctic extreme duty module for temperatures of as low as -30 °C available. The handy mobile computer comes with a comfortable, ergonomic design. An optional pistol grip for very scan-intensive tasks can be optionally added. There are several keypad options to choose from. Thanks to the modular approach it is possible to reconfigure hardware in the field.

All outdoor workers need reliable communications options. Different environments require, however, specific connections. That is why the Zebra Omnii XT15 provides WiFi 802.11 a/b/g/n and Bluetooth. Additionally, it can be equipped with cellular options and narrowband. Narrowband ensures stable connection in vast outdoor areas, such as seaports or large industrial outdoor areas. The strong battery lasts up to 20 hours. The Omnii XT15 is suitable for noisy environments with its vibration and high-volume beeper (95 dBA) feedback.

ZEBRA Omnii XT15 versions:
Omnii XT 15: standard version
Omnii XT15ni: non-incendive, for hazardous environments
Omnii XT15f : freezer, for low temperature applications
Omnii XT15nb: narrowband

Options: Push-to-Talk (PTT), 3 MP camera, GPS, RFID reader

Barcode scanner options:
SE 955: 1D laser (standard range)
SE 965: 1D laser (mid to long range)
SE 1524ER: extended range laser
SE 4500: 1D/2D standard range imager
SE 4600: 1D/2D extended range imager

Technical specification

Product Category Mobile Computers
Category Handheld Terminal
Manufacturer Zebra
Display Size 3.7"
Communication Interface WLAN, Bluetooth, GPS, HSPA
Operating System Microsoft Windows CE 6.0|Windows Embedded Handheld 6.5
CPU Texas Instruments AM3715 Sitara 800 MHz
Memory 256MB RAM/1GB Flash
Data Capture 1D, 2D
Scanning variety Scan-Engines
Camera 3 Megapixel digital camera, Autofocus, 4 x Zoom, LED flash
Sealing IP65, IP67
Operating Temperature -20°C to 50°C
Humidity 5% to 95%, non-condensing
Keyboard 59-key full alpha numeric|55-keyAlpha Numeric|66-key QWERTYNumeric 36-key Numeric|36-keyNumeric Alpha Modified|36-keyNumeric|Ultra-white backlight
Special Features Optimised ergonomics, double sealing


Datasheet Zebra Omnii XT15 (EN)
