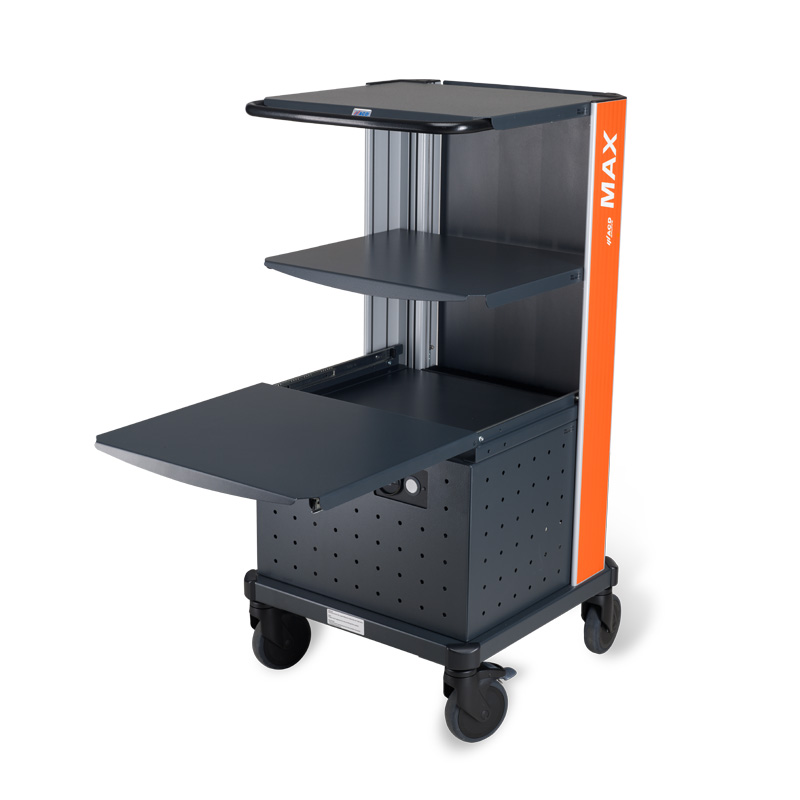

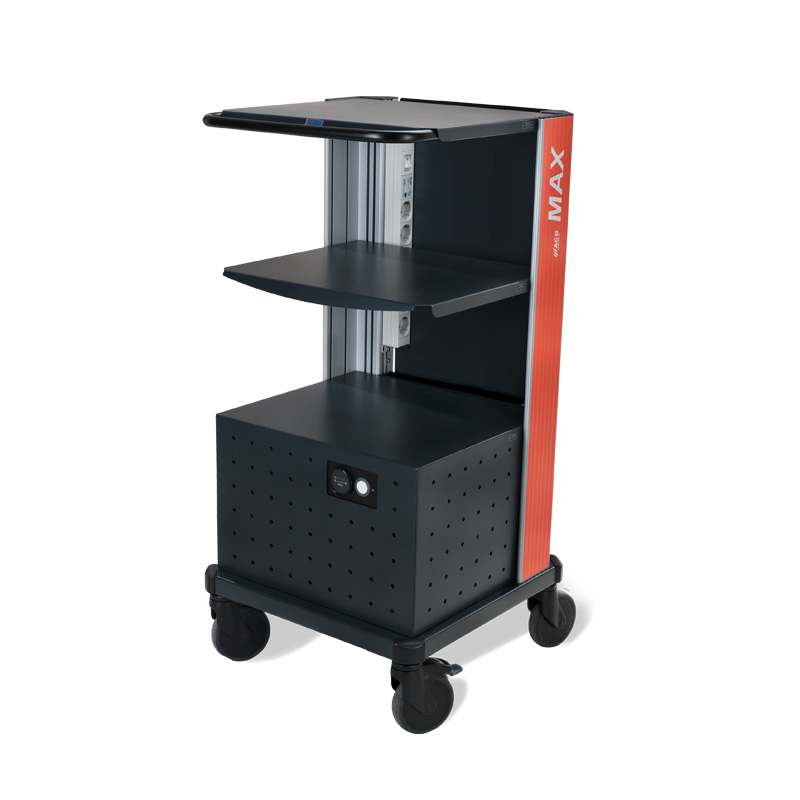

ACD MAX Mobile Trolley

A mobile work station offers utmost flexibility for industrial workflows. The ACD work station MAX is a robust cart, equipped with an integrated power supply. Electronic devices that are needed for a smooth workflow can just be taken along and incorporated into working processes. Particularly in warehouse environments, extended walking distances can be time consuming and impede efficiency. With a mobile working trolley, equipment, such as PC, printer or barcode reader, are always at hand, enabling a higher throughput. The ACD working cart MAX, with its modular design, is perfectly customizable and adaptable to different applications. Multiple power supply as well as equipment options ensure unmatched flexibility.

Add to wishlist Downloads

ACD GRUPPE MAX: MOBILE WORK STATION

  • adaptable: AGM or Li-Ion battery options, multiple output classes available, low-temperature option, extra-large trolley option
  • stable: robust construction, low center of gravity for high stability
  • customizable: various worktop options, with or without handle, various drawer options, monitor mounting options, multiple container options etc.

The working cart MAX by ACD gives workers freedom to move. It makes them independent of the mains supply and keeps necessary equipment within reach. This is a significant advantage for workers in large facilities, such as warehouses. Because of the modular concept, the mobile work station can be equipped according to requirements. A large range of accessories enables customization according to specific application scenarios. For example, drawers, extendable or swiveling boards, mounting options for monitors, various attachable boxes and containers etc. are available to equip the cart as needed.

The construction of the MAX working trolley is extremely robust, suitable for applications in rough environments. Its base frame is made of aluminum. The low center of gravity assures high stability when moving the cart. 4 large, smooth running casters are suitable for industrial hard floor surfaces and are positioned at the rim of the base plate, which also ensures excellent stableness of the work station. 2 of the 4 casters come with brakes to keep the trolley in place. For convenient use, the worktop is height adjustable.

Multiple maintenance-free battery options allow tailor-made solutions. There are models with AGM batteries or Li-Ion batteries and with different output classes available. All trolley versions are equipped with an on-board charger as well as a battery status indicator. They also come with a multiple socket outlet and are fitted with a residual-current circuit breaker (RCCB).

MAX mobile work station variants:

MAX 200
-Basic model, single-column design, compact, slim, lightweight
-2 AGM batteries (12 V/50 Ah)
-Output class: 180 VA
-Variants: MAX 200 OWR (without power inverter), MAX 200 with on-board sine wave inverter
-Work surface: 520 x 510 mm (width x depth)
-Dimensions: 1135 x 550 x 592 mm (height x width x depth)
-Temperature range: 0 °C – 40 °C

MAX STD
-2 AGM batteries (12 V/60 Ah)
-Available output classes (with sine wave inverter): 375 VA, 800 VA, 1200 VA
-Variant: MAX STD OWR (without power inverter and sine wave inverter)
-Ergonomic handle
-Work surface: 500 x 440 mm (width x depth)
-Dimensions: 1130 x 550 x 580 mm (height x width x depth)
-Temperature range: 0 °C – 40 °C

MAX Li-Ionen (Li-Ion)
-With Li-Ion batteries (lithium iron phosphate batteries 12 V/60 Ah): shorter charging times, longer runtimes, light weight – ideal for shift operation
-Available output classes:
MAX STD 300 Li-Ionen: 375 VA with on-board sine wave inverter
MAX STD 300BP Li-Ionen: 500 VA with on-board sine wave inverter and bypass circuit
MAX STD 750 Li-Ionen: 800 VA with on-board sine wave inverter and bypass circuit
MAX STD 1200 Li-Ionen: 1200 VA with on-board sine wave inverter and bypass circuit
-Integrated battery management system
-Ergonomic handle
-Work surface: 500 x 440 mm (width x depth)
-Dimensions: 1130 x 550 x 580 mm (height x width x depth)
-Temperature range: 0 °C – 40 °C

MAX BWS/BWS-R

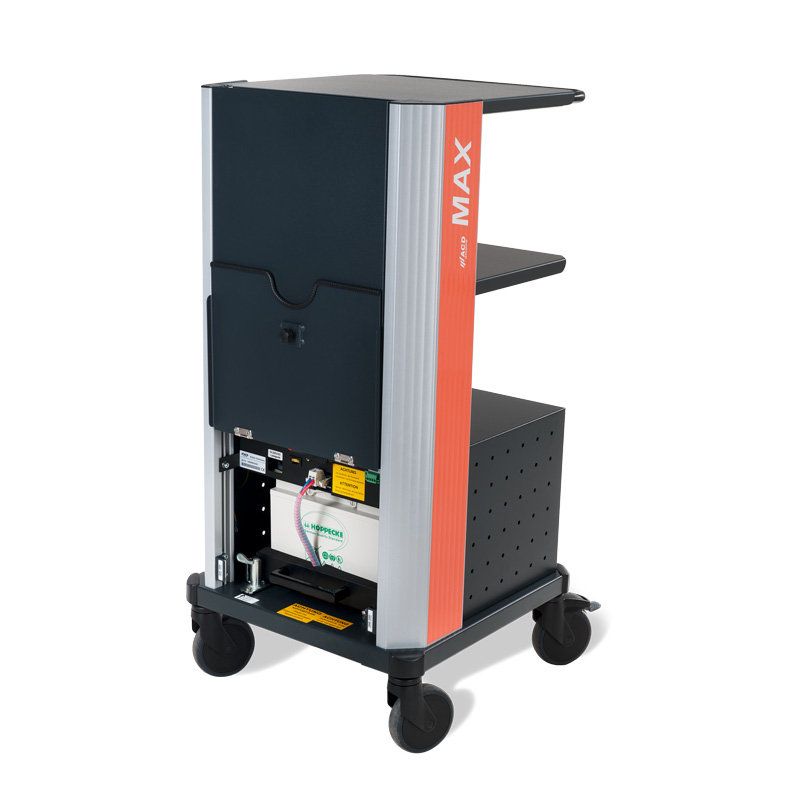

-With replaceable AGM battery unit, quick and easy battery change, hot swap, ideal for shift operation
-Available output classes (with sine wave inverter): 375 VA, 800 VA, 1200 VA
-Variant: MAX BWS OWR (without power converter)
-Variant: MAX BWS-R: with mobile power station for convenient battery change, no cumbersome lifting required
-MAX BWS 1200 suitable for most laser printers
-Ergonomic handle
-Work surface: 500 x 440 mm (width x depth)
-Dimensions: 1130 x 550 x 580 mm (height x width x depth)
-Temperature range: 0 °C – 40 °C

MAX Plus
-40 % more space
-Ergonomic handle
-Work surface: 567 x 542 mm (width x depth)
-Dimensions: 1130 x 630 x 630 mm (height x width x depth)
-Temperature range: 0 °C – 40 °C

MAX TK
-With thermal insulation for low temperature applications
-Temperature range: -28 °C to +40 °C
-Up to 8 hours battery runtime
-Ergonomic handle
-Work surface: 500 x 440 mm (width x depth)
-Dimensions: 1130 x 550 x 580 mm (height x width x depth)

Accessories: Keyboard and mouse extension, worktop with or without handle, extendable board, printer shelf options, various drawers with or without lock, various attachable containers and boxes (e. g. for pencils, barcode scanner, utensils), waste bins, swiveling board, anti-slip mat, various mounting options for monitors, bracket for thin client, external battery charger etc.


Technical specification

Product Category Mobile Workstations
Category Mobile Trolley
Manufacturer ACD Gruppe
Dimensions (HxWxD) 1135 x 550 x 592 (MAX 200), 1130 x 550 x 580 (MAX STD, MAX Li-Ionen, MAX BWS, MAX BWS-R, MAX TK), 1130 x 630 x 630 (MAX Plus)
Adjustable yes
Internal Power Supply AGM or Li-Ion Battery
Hot-Swap MAX BWS/BWS-R
Ports 24 V DC
Castors 4 large Swivel Castors (suitable for industrial use), 2 with brakes
Lock Optional
Special Features Numerous variants, flexible construction due to modular design
