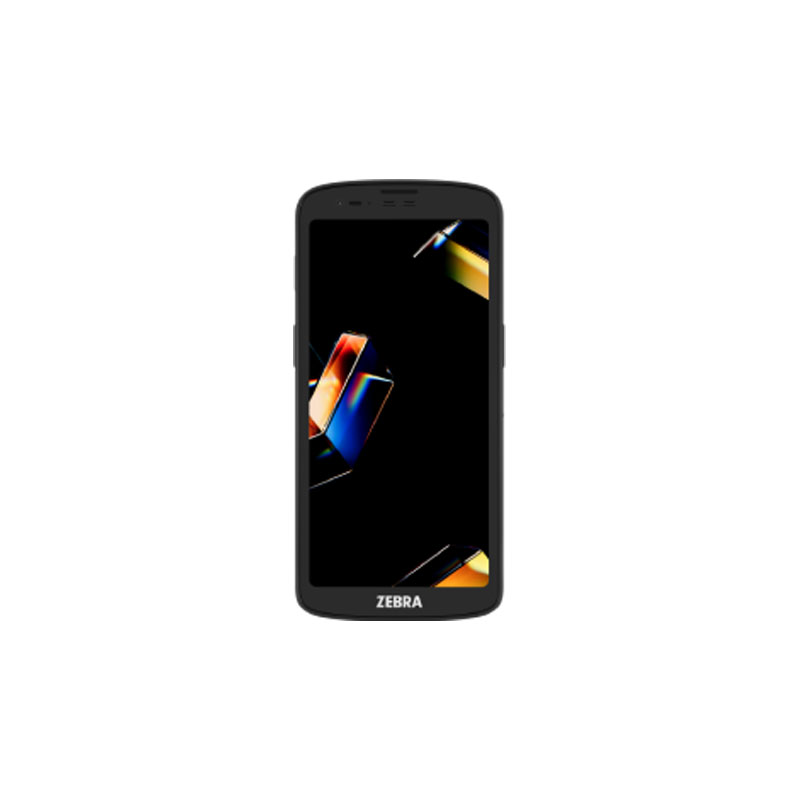

Zebra TC201: Powerful and Robust Mobile Computer for Frontline Use
Maximum Performance and State-of-the-Art Connectivity
The TC201 is powered by the Qualcomm® Dragonwing™ Q-6690 processor, enabling a performance increase of up to 150% compared to older TC2x models. This allows for the simultaneous execution of multiple compute-intensive applications without delays.
For uninterrupted connectivity, the device relies on the latest industry standards:
- 5G Connectivity: Support for 5G 3rd Gen Release 17 for fast, global cellular access.
- Wi-Fi 7: Integration of the latest Wi-Fi standard for extremely high bandwidths, low latency, and improved capacity in densely populated networks.
- Bluetooth 6.0: Increased range, faster data transfer, and lower power consumption for peripherals.
Robustness and Reliability Under Extreme Conditions
The TC201 hardware is designed for long-term durability. With IP68 and IP65 certifications, the device is both dustproof and water-resistant. Mechanical durability has been optimized: the device survives drop tests from up to 1.83 m (with rugged boot) onto concrete, as well as a significantly increased number of tumbles compared to the previous generation.
Key features for industrial environments include:
- Temperature Resistance: Operable in extreme environments ranging from -20 °C to +50 °C.
- High-Quality Display Technology: The 6.0 inch Full HD+ display is protected against both scratches and breakage by Corning® Gorilla® Glass (covering both the display and the scanner window).
Versatile Data Capture and Automation
The TC201 offers various data capture options to support specific user workflows:
- Advanced Range Scanning: The optional AC670 scan engine enables barcode capture at distances of up to 30 meters, as well as the ability to capture high-resolution color images.
- Standard Scanning: The SR500 engine provides precise 1D/2D data capture for standard range applications.
- RFID Integration: Optionally integrated UHF RFID allows reading up to 200 tags per second at a range of up to 1.2 m.
Enterprise Security and Software Management
Data and device security are a primary focus. The TC201 implements multiple layers of security:
- Hardware Protection: Support for Android Strongbox with Secure Element IC.
- Certifications: Compliance with government-grade standards such as FIPS 140-3 and Common Criteria.
- Zebra DNA Software: Zebra DNA Core, a suite for easy management, configuration, and securing of the device fleet, comes pre-installed. Features like Identity Guardian also enable secure access via facial recognition.
Typical Applications
Thanks to its versatility, the Zebra TC201 is suitable for numerous industries:
Warehousing: Receiving, inventory management, and document capture.
Retail: Inventory, assisted selling, and mobile POS.
Logistics & Transport: Order picking, delivery management, and shipment tracking.
Technical specification
| Product category | Mobile Computers |
| Category | Handheld Terminal |
| Manufacturer | Zebra |
| Display Size | 6.0 inch Full HD+ (2160 x 1080), LED backlight, 450 NITS, Corning® Gorilla® Glass |
| Communication | Wi-Fi 7, Bluetooth 6.0, 5G (Rel-17), NFC (ISO 14443 Type A/B) |
| Operating System | Android |
| CPU | Qualcomm® Dragonwing™ Q-6690 processor (up to 2.0 GHz) |
| Memory | 6 GB LPDDR5 RAM / 64 GB UFS 2.2 Flash or 8 GB LPDDR5 RAM / 128 GB UFS 3.1 Flash |
| Data Capture | 1D, 2D, RFID (optional), camera-based scanning |
| Scanner | AC670 (Advanced Range Color 1D/2D), SR500 (Standard 1D/2D), or SR560 (60° angled) |
| Camera | Rear camera: 16 MP autofocus with LED flash; Front camera: 5 MP fixed focus |
| Sealing | IP68 and IP65 (per IEC 60529) |
| Operating Temperature | -20 °C to +50 °C (-4 °F to +122 °F) |
| Humidity | 5% – 95% (non-condensing) |
| Keyboard Options | On-screen keyboard and programmable buttons (Dual Scan, Push-to-Talk, volume) |
| Touchpanel | Multi-mode capacitive touch (operation with bare fingers or gloves), water-repellent, fingerprint-resistant |
| Special Features | AI-based audio technology (noise suppression), optional integrated RFID, Hot Swap battery mode (select SKUs), Zebra DNA software suite, 5G Rel-17 & Wi-Fi 7. |
