CAB SQUIX Series Label Printers

What are your requirements? Do you need to print small-sized labels for vials in a laboratory? Or do you require large labels for cardboard boxes? Do you print on pressed shrink tubes or on textile labels? If you do not want to compromise, you should find exactly the right printer for your applications. With the SQUIX printer series, the German manufacturer CAB provides a large variety of label printing solutions.

Add to wishlist Request consumables Downloads
  • flexible: stand-alone operation or connected to host system
  • convenient: large color touch screen for intuitive use
  • first-class: industry-grade materials, premium-quality components
  • multifaceted: several interfaces, OPC UA and WebDAV ready, SD card slot, large accessory range
  • adaptable: various models for multiple applications, large media variety (paper, cardboard, plastics, textile tape)

What are your requirements? Do you need to print small-sized labels for vials in a laboratory? Or do you require large labels for cardboard boxes? Do you print on pressed shrink tubes or on textile labels?

The right solution for your business: If you do not want to compromise, you should find exactly the right printer for your applications. With the SQUIX printer series, the German manufacturer CAB provides a variety of label printing solutions.

Industrial-grade printers: The SQUIX label printers by CAB are characterized by their durable construction and advanced print technology. Premium materials and a reliable printing mechanism ensure a long-term use of the desktop printers. They are suitable for industrial environments and can be equipped with additional protective measures, for example a cover for food applications or a chassis for dust protection.

Excellent print quality: Depending on the model, the SQUIX desktop label printers reach a print resolution of up to 600 dpi. High precision and sharp contours allow the printing of text, graphics and barcodes even on very tiny or slim labels. A wide range of media options provides high flexibility.

Increased efficiency: The compact printing devices of the SQUIX series by CAB can reach print speeds of up to 300 mm per second. By means of an external rewinder, it is possible to print labels in advance for later use.

User-friendly operation: Because of the 4.3-inch icon-based operation panel, the SQUIX label printers can be used intuitively. They can also be remotely controlled with mobile devices. A pool of how-to videos provides instruction on various topics, such as media loading, maintenance and handling.

Easy integration and use: The SQUIX printers for versatile labeling solutions offer multiple interfaces, including USB host, USB 2.0 high-speed device, Ethernet 10/100, RS-232-C. A digital I/O interface comes as standard on peel-off devices and can be added to basic devices as option. By means of the SD card slot, internal memory can be extended by up to 512 GB. The printers of the SQUIX series are also OPC UA and WebDAV enabled, for instance for automated or cloud-based processes.

Software: For optimal print results, CAB provides the label software cablabel S3 Lite (standard) or cablabel S3 Pro (option). The printers are also compatible with third-party labeling software solutions, such as CODESOFT; NiceLabel and BarTender. Drivers are available for Windows, Mac and Linux operating systems.

Are you looking for an RFID-enabled printing solution? The CAB QUIX 4.3M and 4M are also available with UHF RFID capabilities. There are three RFID modules to choose from: for standard RFID tags, for on-metal or high-sensitivity RFID tags. For more detailed information on the RFID versions, please refer to the data sheet or contact us directly.

 ApplicationsResolution (dpi)Max. Print Speed (mm/s)MAx. Print Width (mm)Alignment

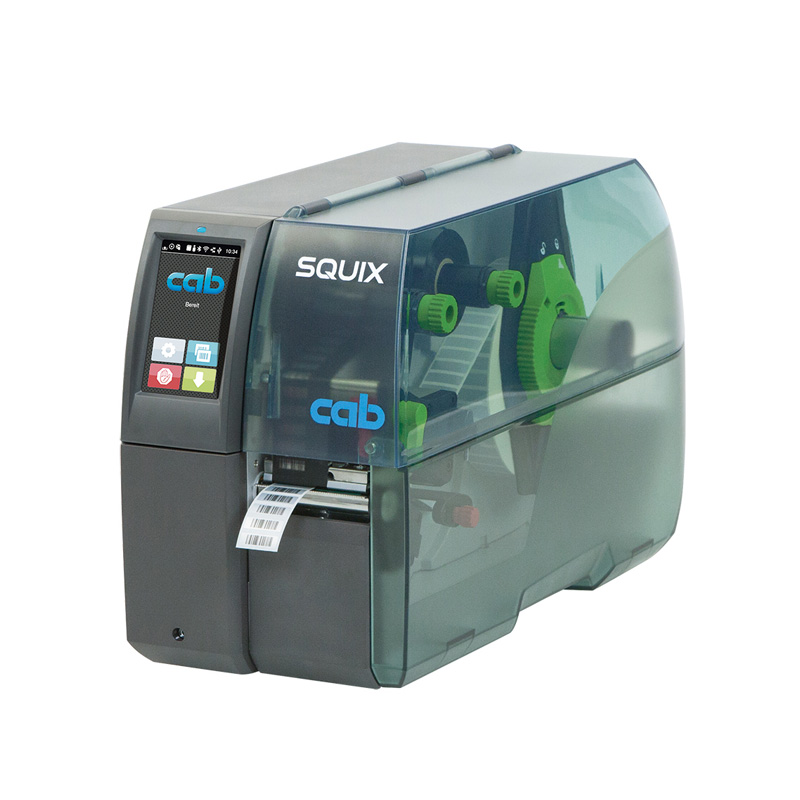

SQUIX 2small labels300/600250/15056.9/54.1left
SQUIX 4.3multi-purpose203/300250104/108.4left

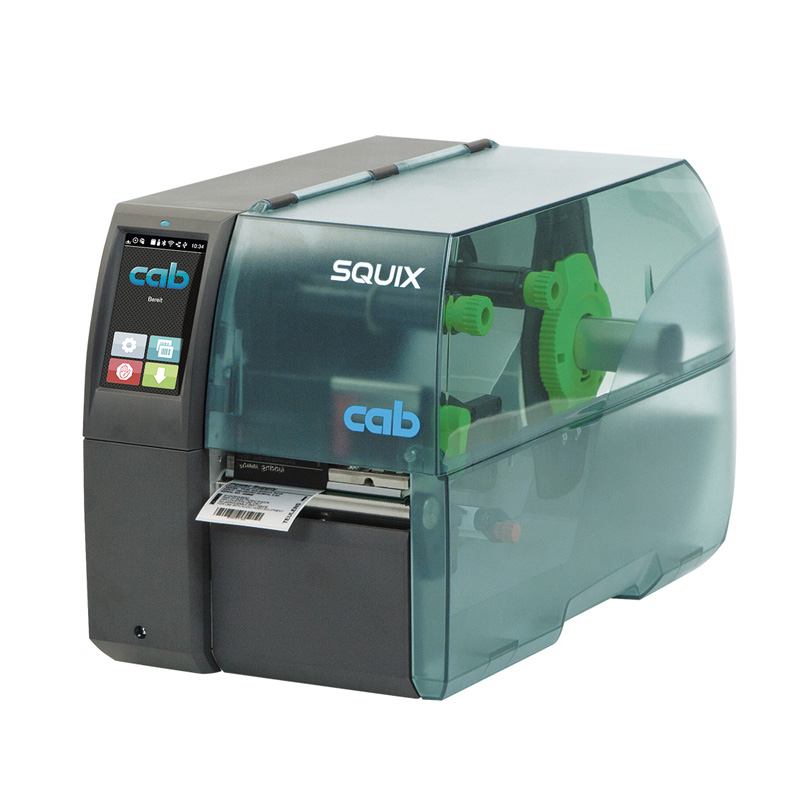

SQUIX 4multi-purpose300/600300/150105.7left

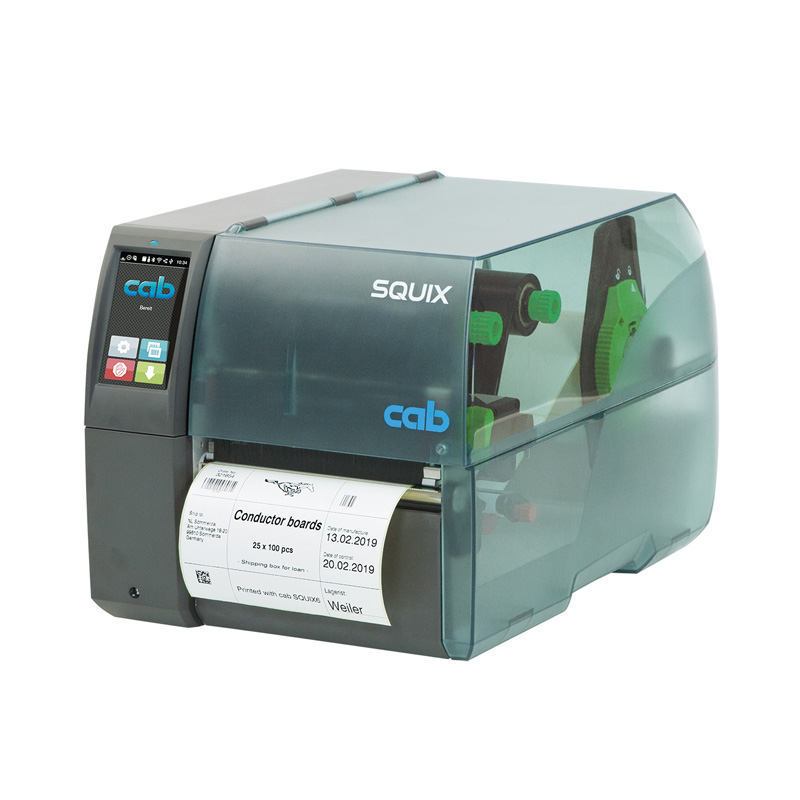

SQUIX 6.3logistics
for Odette, UCC, GS1 labels
203/300250168/162.6centered
SQUIX 4.3Msmall labels, slim continuous materials
(eg. pressed shrink tubes)
203/300250104/108.4centered
SQUIX 4Msmall labels, slim continuous materials
(eg. pressed shrink tubes)
300/600300/150105.7centered
SQUIX 4.3M UHF RFIDstandard, on-metal or HS RFID tags203/300300104/108.4centered
SQUIX 4M UHF RFIDstandard, on-metal or HS RFID tags300/600300/150105.7centered
SQUIX 4.3MTtextile labels
textile tape
300250108.7centered
SQUIX 4MTtextile labels
textile tape
300/600300/150105.7centered

Do you require extra wide labels? For some applications, particularly large labels are needed. CAB also provides a printer for such applications. The CAB A8+ can process labels with a maximum width of 220 mm and offers a print width of up to 216 mm. Please feel free to contact us for more information and detailed support.



Accessories:
External operation panel
Cutter
Barcode verifier
Tube applicator
Stacker
External rewinders
Applicator
All-round labeler (360°)
Mounts
Protective covers, e. g. for food applications, dust protection (IP52)


Technical specification

Product Category Label Printers
Category Desktop Printers
Manufacturer CAB
Resolution 203 dpi|300 dpi|600 dpi
Interface-Options 2 x USB-Host, 1 x USB 2.0 High-Speed Device, Ethernet 10/100, RS-232-C, SD-Kartenslot, digitale I/O-Schnittstelle
Printing Method Thermal transfer print, some models also as direct thermal printers available
Printing Width Maximum print width between 54.1 mm and 108.4 mm (depending on model)
Maximum Print Speed Depending on model, between 150 mm/s and 300 mm/s
Minimum Media Width Depending on print media
Maximum Media Width Depending on print media
Maximum Roll Capacity 205 mm
Printer Language JScript, abc Basic Compiler
Media Handling Depending on print media
RFID-Option Yes
Display-Option 4.3-inch LCD color touch screen

Downloads

Datasheet CAB SQUIX Series (EN)
