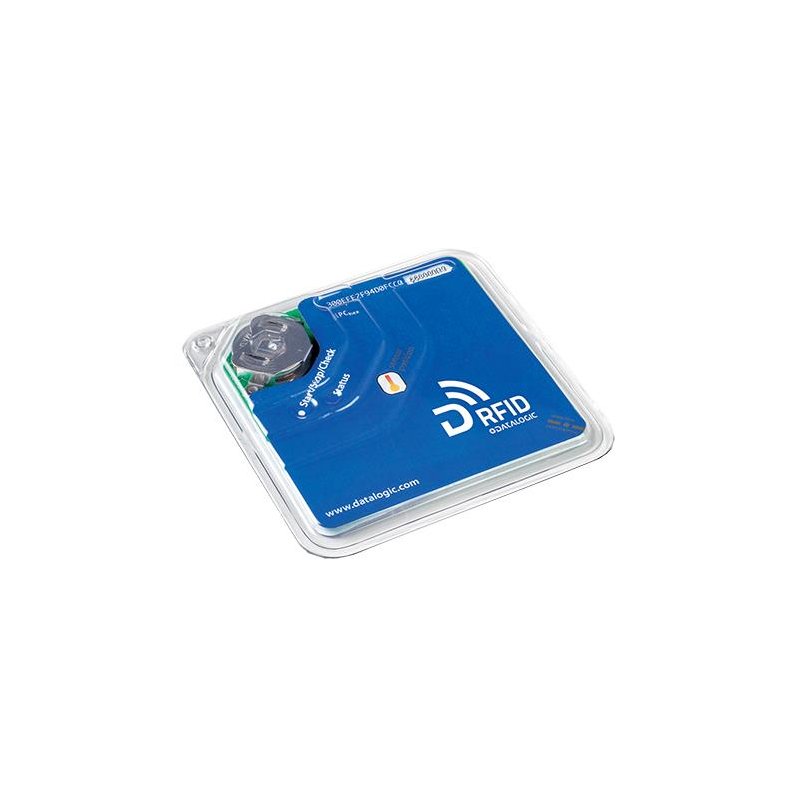

Datalogic DLR-TL001 RFID Temperature Logger

For perishable goods, such as frozen products, fresh food or pharmaceuticals, an uninterrupted cooling chain is vital. Monitoring goods before, during and after delivery used to be a costly and complex endeavor. Datalogic has developed an inexpensive solution – the DLR-TL001 RFID semi-passive temperature logger tag.

Add to wishlist Downloads

DATALOGIC DLR-TL001: Cost-effective Temperature Control

  • reusable: long battery life, resettable
  • easy: supports EPC Global Class I Gen 2, complies with ISO 18000-6C standards
  • functional: precise temperature control, quick-check with button and LED
  • robust: IP67

The Datalogic DLR-TL001 is equipped with a highly sensitive sensor and large data storage capacity to ensure dependable monitoring of perishable products. EPC Global Class I Gen 2 and ISO 18000-6C are international standards that enable the RFID tag to be used with any customary UHF RFID reader.

The Datalogic DLR-TL001 temperature logger can be programmed to take record of temperature samples in intervals from 1 second to 18 hours. Memory capacity is enough to store up to 3.958 samples.

A maximum of 16 temperature ranges can be defined and adjusted according to requirements and the tag will trigger an alarm in case parameters exceeded a critical limit value. With the integrated button and LED it is possible to control the tag instantly or it can be managed through standard RFID commands. The Datalogic DLR-TL001 is reusable due to a long battery life and its reset function. Also, the smart temperature logger tag is extremely sturdy and qualifies for protection class IP67.

The Datalogic DLR-TL001 is the perfect solution to supervise delivery and storage of perishable goods, preventing loss without high expenses.

Technical specification

Product Category Barcode Scanners
Category Wireless Scanners
Manufacturer Datalogic
Scan Technology RFID
Sealing IP67
Operating Temperature -20°C to 70°C
Display No


Datasheet Datalogic DLR-TL001 (EN)
