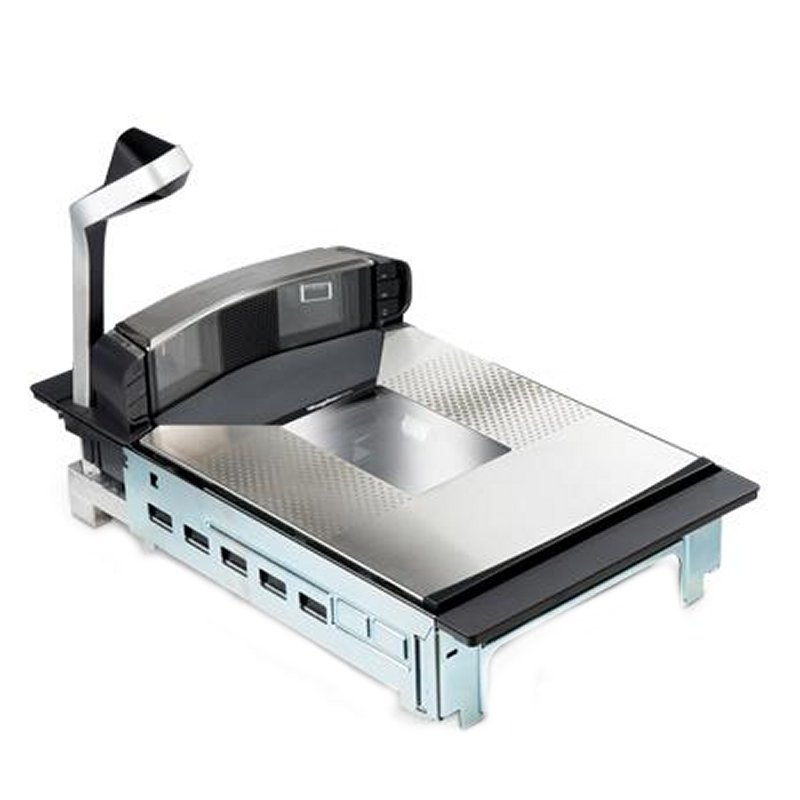

Datalogic Magellan 9800i Barcode Scanner

The Datalogic Magellan 9800i in-counter scanner/scale was designed to improve customer’s checkout experience, to minimize shrink and to ensure a seamless and smooth workflow for the cashier. Its advanced all-planes imaging functionality is an outstanding feature as is the particularly large weighing area. Due to the low profile, it can easily be integrated and operated by the cashier either standing or seated. Additional devices, such as touchscreens or receipt printers, can be conveniently positioned. Optionally, a top down reader can be added which includes a customer-facing scanner to read coupons, gift cards etc. even from mobile displays. A new and innovative purchase procedure for a faster and more efficient throughput.

Add to wishlist Downloads

DATALOGIC MAGELLAN 9800i: Precision at the Checkout

  • accurate: large “All-Weighs Scale Platter”, “ScaleSentry” functionality
  • compact: flat design
  • easy: reads 1D, 2D and stacked codes, advanced digital imaging, audible and visible confirmation

The Datalogic Magellan 9800i for more efficiency at the checkout counter. The particularly large weighing surface plus an additional weighing area on top ensure reliable weighing results even with long items that don’t fit on the platter. Also, the ScaleSentry function recognizes protruding or misplaced items via invisible infrared beams and will indicate it to the operator for correction. The high-performance imager reads 1D and 2D barcodes as well as stacked codes. There is no need to twist and turn articles to align the barcode, as the Datalogic Magellan 9800i is equipped with the latest digital imaging technology to read all surfaces of an item. After a successful scan, the operator gets a clear audio and visual feedback. This enables smooth, continuous operating procedures to improve the checkout process.

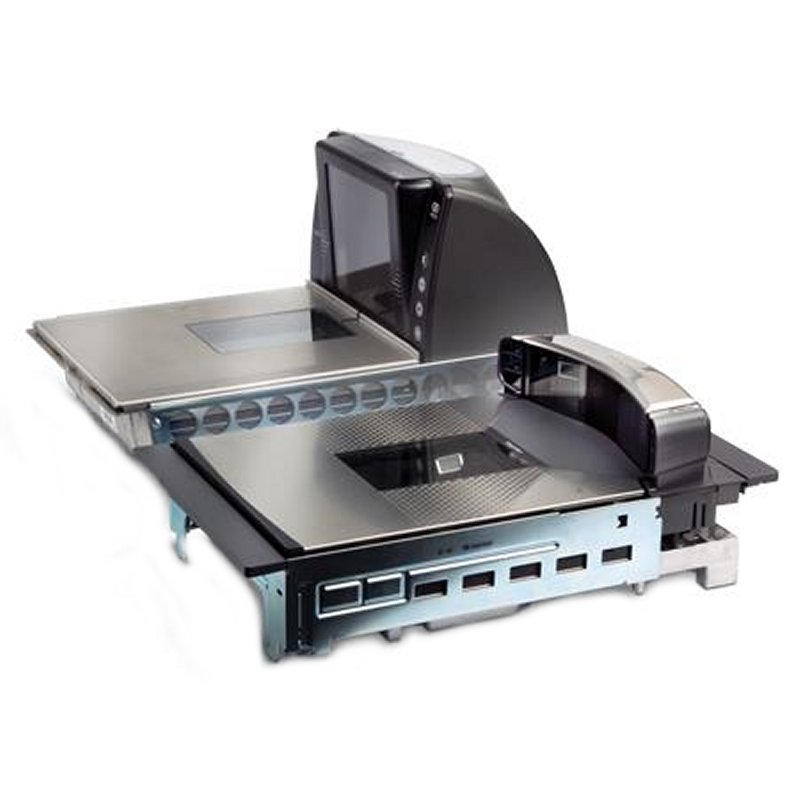

For the Datalogic Magellan 9800i, there is an optional top down reader (TDR) available to add an extra top down viewing field. The TDR includes a customer-facing barcode reader to enable clients to scan vouchers, loyalty cards etc. while the cashier scans purchased items without a delay.

The Magellan 9800i provides a service port that can conveniently be accessed from the top. Along with its slim construction, the device is easy to install and maintain. Its USB and microSD slot are protected against spills. A variety of interfaces ensure simple integration and smart remote management tools enable device control from any location. The Magellan 9800i scanner/scale supports electronic article surveillance systems with its integrated EAS antenna.

Boost your checkout procedures with the highly efficient Magellan 9800i – for more satisfied customers, reduced loss caused by incorrect weighing results and more confident cashiers.


Technical specification

Product Category Barcode Scanners
Category In-/On-Counter Scanners
Manufacturer Datalogic
Scan Technology 1D Imager|2D Imager|Digimarc
Interface Multi Interface (USB, KBW, RS232)
Colour Options stainless steel
Operating Temperature 10°C to 40 °C
Display No

Downloads

Datasheet Datalogic Magellan 9800i (EN)
