Datalogic PowerScan 9100 Series Barcode Scanner

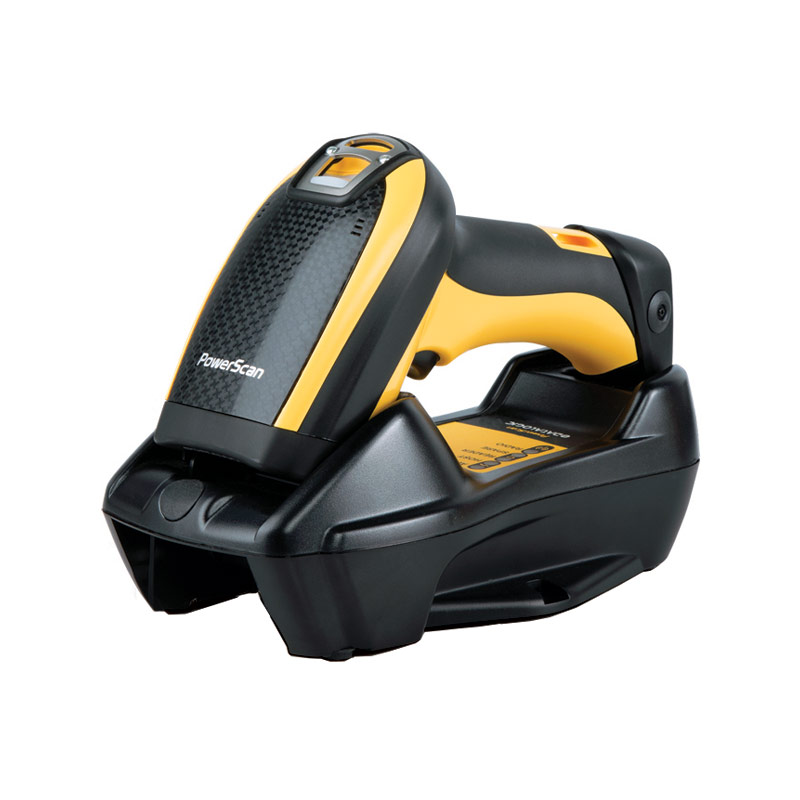

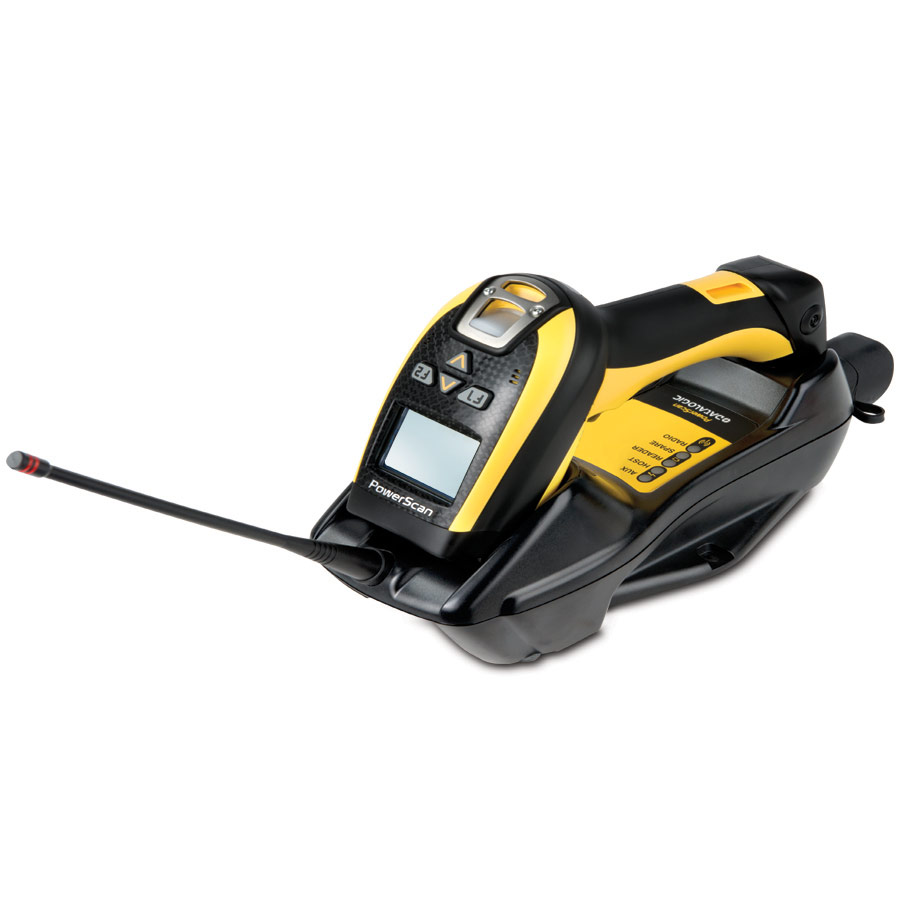

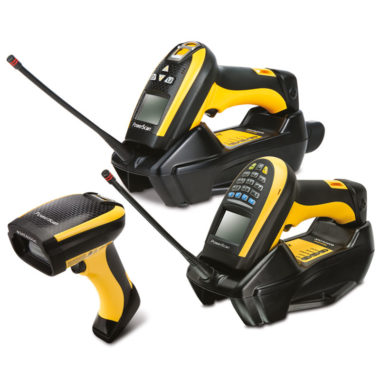

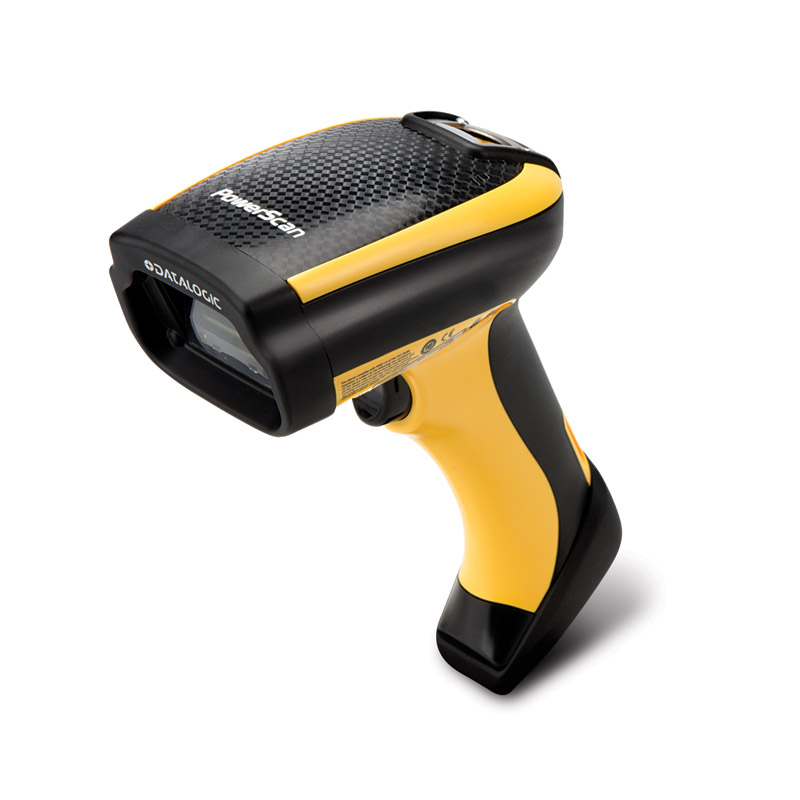

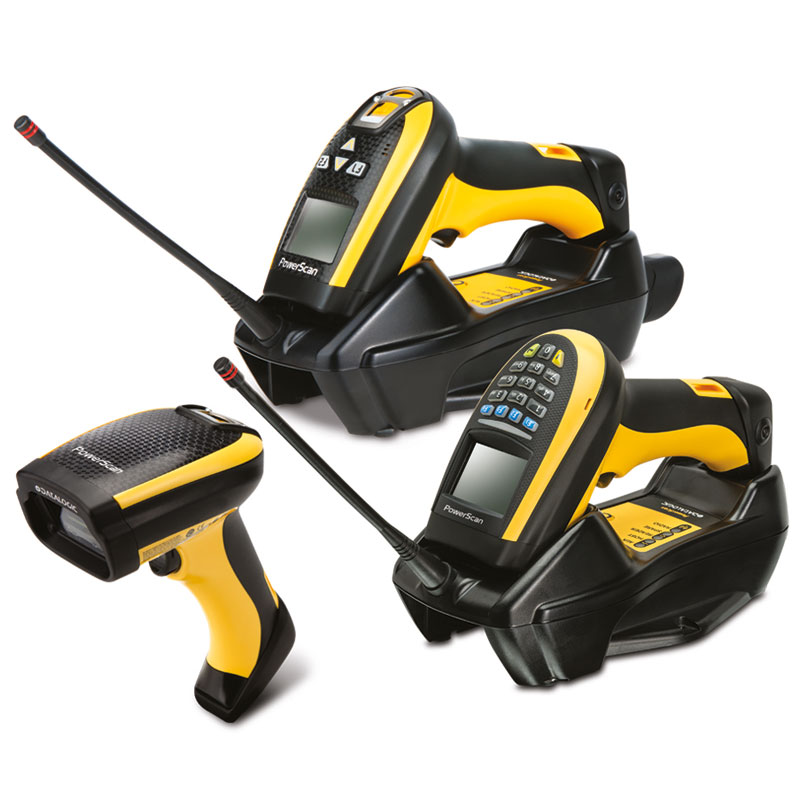

With the PowerScan 9100 Series, Datalogic present an extremely rugged line imager series that offers an enormous range of versatility as well as outstanding performance. The most advanced, brand new scanning technology and robust design provide excellent results, even when reading tiny barcodes with extra high resolution. The series consists of three high-performance models: PBT9100 (wireless), PM9100 (wireless, display with 4 keys) and PD9130 (corded reader).

Add to wishlist Downloads

DATALOGIC PowerScan 9100 Series: Linear Imager to the Industrial Sector

  • powerful: IP65 rating and 2.0 m (6.6 ft) drop resistance
  • innovative: new scan technology with a green scanning line
  • purposeful: 3 Green Lights (3GL) read confirmation technology provides superior good read feedback
  • versatile: three various high-performance models

The high-quality PowerScan 9100 Series was especially created to meet the particular requirements of all sorts of industrial environments. The barcode scanners are also versatile in their handling and available in three versions: a standard variant, a display and 4 buttons-version, the third model is equipped with a display including complete alphanumeric keyboard. There is a corded model and two wireless models, which operate via the Bluetooth technology or Datalogic STAR Cordless System narrow band radio.

The PowerScan 9100 series combines ruggedness and high performance. The robust construction and mechanics plus the light weight and the ergonomic shape of the scanners offer absolute user comfort, especially during long, intensive scanning processes.

The latest scanning technology from Datalogic enables scanning with a green scanline, which is as sharply defined as a laser beam but has the strengths of a linear imager. The patented 3GL read-only verification technology allows to read all codes quickly and securely from different angles, which guarantees the best possible reading result for 1D codes.

All models are equipped with multi-interfaces as standard: RS-323, keyboard wedge and USB. The front window as well as the lithium-ion battery are replaceable.

Technical specification

Product Category Barcode Scanners
Category Wireless Scanners
Manufacturer Datalogic
Scan Technology 1D Imager
Interface USB, Serial, Keyboard Wedge
Colour Options black-yellow
Sealing IP65
Operating Temperature -20°C to 50 °C
Display Yes|No


Datasheet Datalogic PowerScan PBT9100 (EN) Datasheet Datalogic PowerScan PM9100 (EN) Datasheet Datalogic PowerScan PD9130 (EN)
