Forsis EXPERT SBC, 15″ LCD TFT Industrial Computers

In industries where high standards of hygiene are required, such as in the pharmaceutical or food industries, the Forsis Expert-series is ideally suited. The industrial computers from Forsis can be individually put together according to the needs of your company. There are various processors to choose from, as well as different operating systems and the interfaces can be selected. In addition, Forsis offers many additional options for using their PCs.

Add to wishlist Downloads

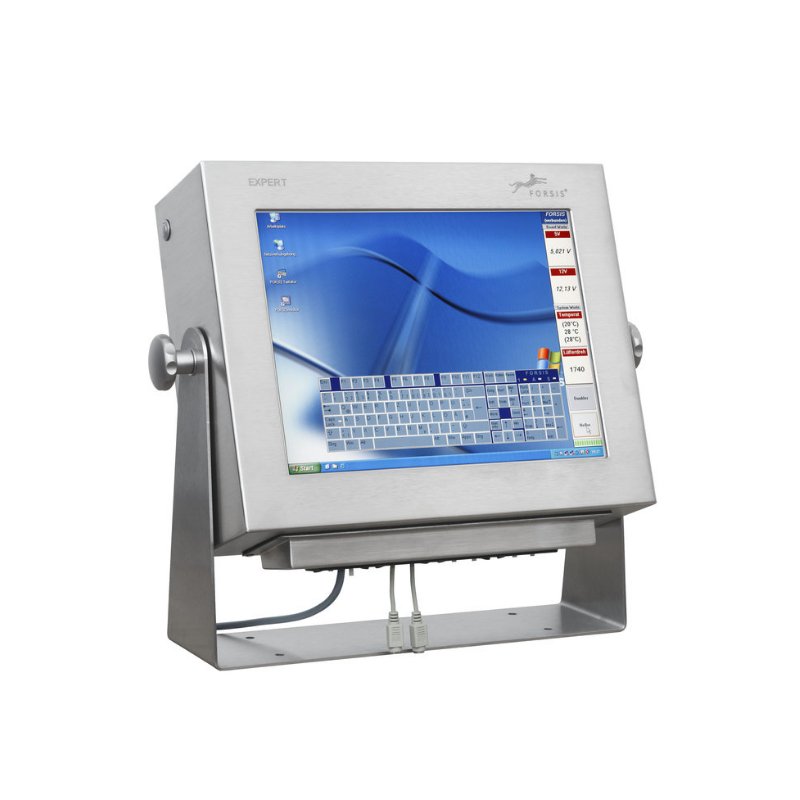

FORSIS EXPERT 1500 SBC XGA: Industrial Computer for Special Requirements

  • strong: particularly robust, cleaning with steam jet cleaner possible
  • variable: different processors, operating systems, additional options
  • high quality: stainless steel housing

Benefit from the many options that Forsis offers with its industrial PCs. The Expert 1500 SBC has an analogue resistive 15″ touchscreen for convenient operation. There are several processors to choose from: ATOM or Intel, with 4GB of RAM and 128GB SSD. Choose between several operating systems: Windows Embedded 7 or 8 and Windows 7 or 8. The models Expert 1500 SBC XGA A2C and i-CEL also offer IGEL (eg for Linux).

The industrial computers have an IP69K protection class (front) or IP65 (connection side). The housing is made of brushed stainless steel (V2A, V4A) without holes or recesses and can therefore be hygienically cleaned. The cable outlet is located on the back of the devices and can be protected by a cover.

The devices can be used at temperatures from -5 °C to 45 °C. In addition, WLAN, Bluetooth, UMTS/LTE and an RFID reader (with LEGIC, hitag or mifare) can be added.

Expert 1500 SBC XGA stationary 15“ display:

A2C T:
CPU: Intel ATOM D525, 2 x 1,8 GHz
Interfaces: 4 x RS232, 4 x USB 2.0, VGA, 1x Ethernet 1000 Mbit/s, Mouse/KB
Slots: 1 x PCI 104, 1 x Mini PCIe full size

I-CEL T:
CPU: Intel Celeron 1047UE, 2 x 1,4 GHz
Interfaces: 2 x RS232, 2 x USB2, 2 x USB3, DP, HDMI, VGA, 2 x Ethernet 1000 Mbit/s
Slots: Mini PCIe 1 x full size, 1 x half size

i3 T:
CPU: Intel Core i3 3217UE
Interfaces: 2 x RS232, 2 x USB2, 2 x USB3, DP, HDMI, VGA, 2 x Ethernet 1000 Mbit/s
Slots: Mini PCIe 1 x full size, 1 x half size

i7 T:
CPU: Intel Core i7 3555LE
Interfaces: 2 x RS232, 2 x USB2, 2 x USB3, DP, HDMI, VGA, 2 x Ethernet 1000 Mbit/s
Slots: Mini PCIe 1 x full size, 1 x half size


Technical specification

Product Category Fixed Computers
Category Industrial Computers
Manufacturer Forsis
Display Size 15"
Communication Interface USB, Serial, VGA, HDMI, Display Port, Ethernet, Bluetooth, WLAN, UMTS/LTE
Operating System WES 7, WES 8, WIN 7, WIN 8, IGEL
CPU Intel Celeron 1047UE|Intel Core i7 3555LE|Intel Core i3 3217UE
Memory 128 GB SSD
Expansion Mini PCIe
Device Material V2A / V4A
Surface Treatment outside: brushed, inside: polished
Sealing Front IP69k
Sealing Back IP65
Operating Temperature -5°C to 45°C
Humidity 0% to 90%
Touchpanel analog resistive touch screen
Special Features The different designs of the EXPERT series by FORSIS develop areasin which feedback stations are necessary in the most extreme of usage conditions. Protection classIP65 is a necessary prerequisite here.

Downloads

Datasheet Forsis Expert 1500 SBC XGA A2C T (EN) Datasheet Forsis Expert 1500 SBC XGA i3 T (EN) Datasheet Forsis Expert 1500 SBC XGA i7 T (EN) Datasheet Forsis Expert 1500 SBC XGA i-CEL T (EN)
