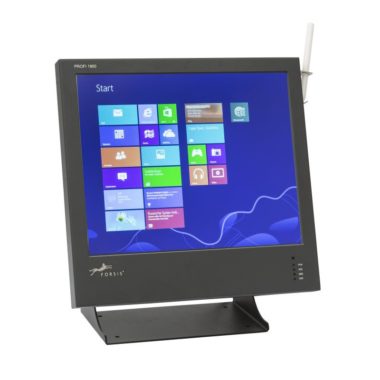

Forsis PROFI S, 15″ LCD TFT Industrie PC

The devices "Profi S 1500 XGA" from the company Forsis are reliable industrial PCs, which are characterized by large variations. Choose the operating systems that best suits to your business. Also choose the right processor for you and add additional extras to the PC. This is how an industrial computer becomes the computer that is tailored to your needs.

Add to wishlist Downloads

FORSIS PROFI S 1500 XGA: Modularity

  • variable: Windows or Linux
  • resistant: IP65 (front), IP52 (connection side)
  • suitable: many options selectable

The industrial PC Profi S 1500 XGA is available in several variants. The computers differ for example in case of the operating system (Windows or Linux), processor (ATOM, Intel Celeron or Intel Core) and interfaces (RS232, USB2, USB3, VGA, Ethernet, HDMI, DP, optional RS422/485).

If required, the IPC can also be equipped with sound, RFID readers (eg LEGIC, MIFARE, HITAG and INTERFLEX), WLAN, Bluetooth and UMTS / LTE.

Put the PC together the way you need it in your business. The stable computers from Forsis are designed for a long service life, so you can use the devices for a long time.

PROFI S 1500 stationary with 15“ display:

XGA A2C T:
CPU: ATOM D525 2 x 1,8 GHz
Interfaces: 4 x RS232, 4 x USB2, VGA, 1 x Ethernet GbE
Slots: PCI-104, mini PCIe full

XGA i-C T:
CPU: Intel Celeron 1047UE
Interfaces: 2 x RS232, 2 x USB2, 2 x USB3, VGA, HDMI, 2 x Ethernet GbE, DP
Slots: mini PCIe full, mini PCIe half

XGA i3 T:
CPU: Intel Core i3 3217UE
Interfaces: 2 x RS232, 2 x USB2, 2 x USB3, VGA, HDMI, 2 x Ethernet GbE, DP
Slots: mini PCIe full, mini PCIe half

XGA i7 T:
CPU: Intel Core i7 3555LE
Interfaces: 2 x RS232, 2 x USB2, 2 x USB3
Slots: mini PCIe full, mini PCIe half

For all models there is an optional RS422/485 interface.

All versions are optionally equipped with Windows Embedded 7, Embedded 8 or Windows 7 or 8. The Profi S XGA A2C version is also available with the IGEL operating system.

Other accessories:
Cable protection and strain relief
Protective cover for interfaces and connections
mounting accessories


Technical specification

Product Category Fixed Computers
Category Industrial Computers
Manufacturer Forsis
Display Size 15"
Interface USB, Seriel, GbE, HDMI, Display Port, Bluetooth, Ethernet, Mouse/KB
Operating System WES 7, WES 8, WIN 7, WIN8,
CPU Intel Core i3 3217UE|Intel Core i7 3555LE|ATOM D525
Memory 4 GB RAM/4 GB RAMmax
Expansion PCI104|Mini PCIe
Device Material Steel sheet
Surface Treatment outside: powdered, inside: galvanized
Sealing Front IP65
Sealing Back IP52
Operating Temperature 0°C to 50°C
Humidity 0% to 90%
Touchpanel analog-resistive Touchscreen

Downloads

Datasheet Forsis Profi S 1500 XGA A2C T (EN) Datasheet Forsis Profi S 1500 XGA i-C T (EN) DatasheetForsis Profi S 1500 XGA i3 T (EN) DatasheetForsis Profi S 1500 XGA i7 T (EN)
