Panasonic Full Ruggedized TOUGHPAD FZ-N1 Mobile Computers

The Panasonic TOUGHPAD FZ-N1 is the most versatile and robust handheld tablet computer you could imagine. Its ultra-rugged construction allows all-weather outdoor applications and is therefore an ideal tool for workers in the transportation and logistics sector, in public safety areas, in utility companies etc. The Panasonic FZ-N1 is equipped with Android 9.

Add to wishlist Downloads

PANASONIC TOUGHPAD FZ-N1: Handheld Tablet for challenging Environments

  • rugged: IP67, temperature range: -10 °C to +50 °C
  • slim: only 277 g
  • easy-to-use: 7” HD touch panel, comfortable 70°-angle barcode reader
  • versatile: data capture and processing, voice communication, real time data access etc.

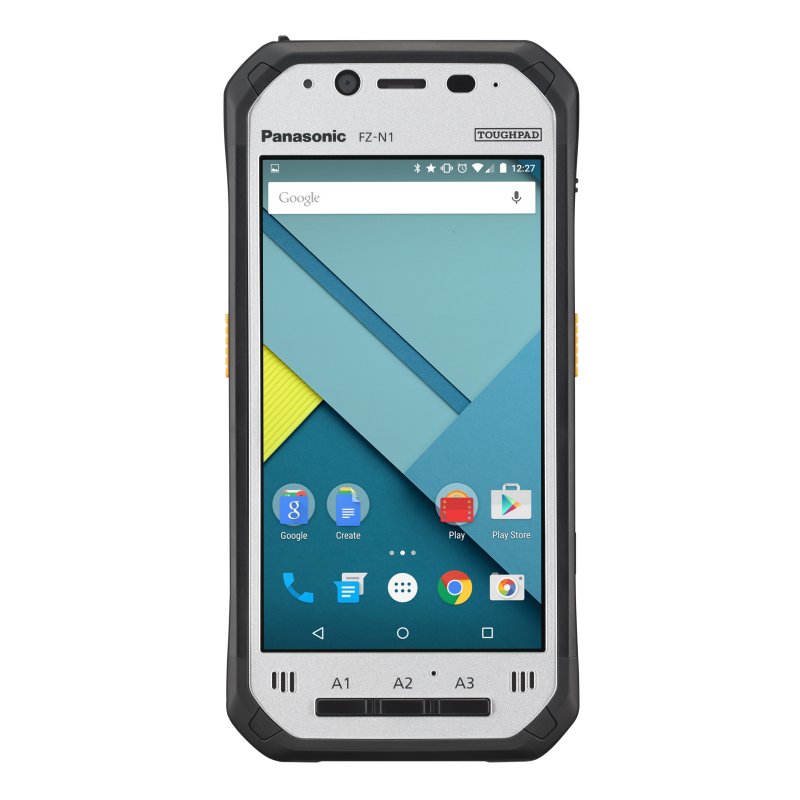

The 4.7” multi-touch screen is clearly viewable irrespective of lighting conditions. It can be operated with fingers, stylus and even with gloved hands. If the display gets wet it doesn’t present a problem, for the touch panel can still be navigated in wet mode. Use the Panasonic Toughpad FZ-N1 for voice communication even in noisy environments. The two loud speakers deliver up to 100 dBA and along with noise suppression enable clearly audible communication.

For fast data processing, the Panasonic Toughpad FZ-N1 is equipped with a quad-core Qualcomm 2.3 GHz CPU with 2 GB RAM and 16 GB storage. The mobile computer uses the Android 9 operating system (For Windows 10 IoT Mobile Enterprise, please refer to Panasonic Toughbook FZ-F1). To extend storage capacity, the microSD slot allows memory cards with up to 64 GB.

With an optional active or passive pen, handwriting and signature capture are possible. The Toughpad FZ-N1 comes with 4G LTE/3G, Bluetooth 4.1, WLAN, GPS and it supports NFC. To ensure a high security level, it complies with FIPS140-2 level-1 and provides integrated ARM TrustZone.

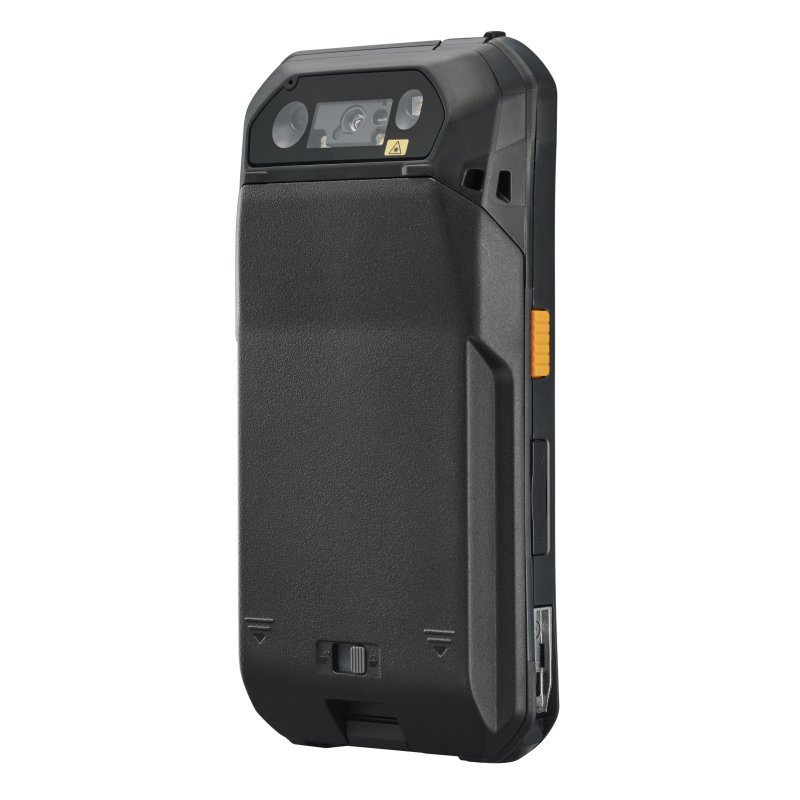

Smart data capture is ensured with the builtin barcode reader. Its 70°-angled position prevents inconvenient postures when scanning a code, so that even scan-intensive tasks can be easily completed. The Panasonic Toughpad FZ-N1 allows high-quality image and video capture with its two cameras: one 8 MP rear and one 5 MP front camera.

A slim form factor allows one-hand operation. Its extremely rugged construction makes the Panasonic Toughpad FZ-N1 a true all-rounder. It is sealed against ingression of dust and immersion in water up to 1 m for 30 minutes (IP67) and it is drop-resistant to 1.8 m. The standard battery provides energy for a whole 8-hours shift. Optionally, there is an extended 6,400 mAh battery available to extend operation time to 16 hours. The battery is user-replaceable and the tablet is hot swap-enabled.

If you are looking for a rugged allinone device with strong performance, latest technology and a pocketable shape, the Panasonic Toughpad FZ-N1 (Android) or alternatively the Panasonic Toughpad FZ-F1 (Windows) are an ideal choice!

Technical specification

Product Category Mobile Computers
Category Handheld Terminal
Manufacturer Panasonic
Display Size 4,7"
Communication Interface USB, WLAN, Bluetooth, NFC
Operating System Android 9
CPU Qualcomm SDM660-2 Octa-core processor
Memory 3 GB RAM / 32 GB
Expansion microSDXC (max. 64 GB)
Data Capture 1D, 2D
Camera Front: 5 Megapixel Main: 8 Megapixel
Sealing IP68
Operating Temperature -20 °C to 50 °C
Keyboard User configurable buttons: x5 (A1, A2, A3, left yellow and right yellow buttons) /Power on/off button: x1 /Dedicated camera button: x1 (For rear or front camera) /Volume buttons: x2
Touchpanel capacitive touchscreen
Special Features 4G LTE / 3G data and voice capability, Optional passive and active pen for precise signatures, User-replaceable battery with warm-swap function


Datasheet Panasonic FZ-N1 (EN)
