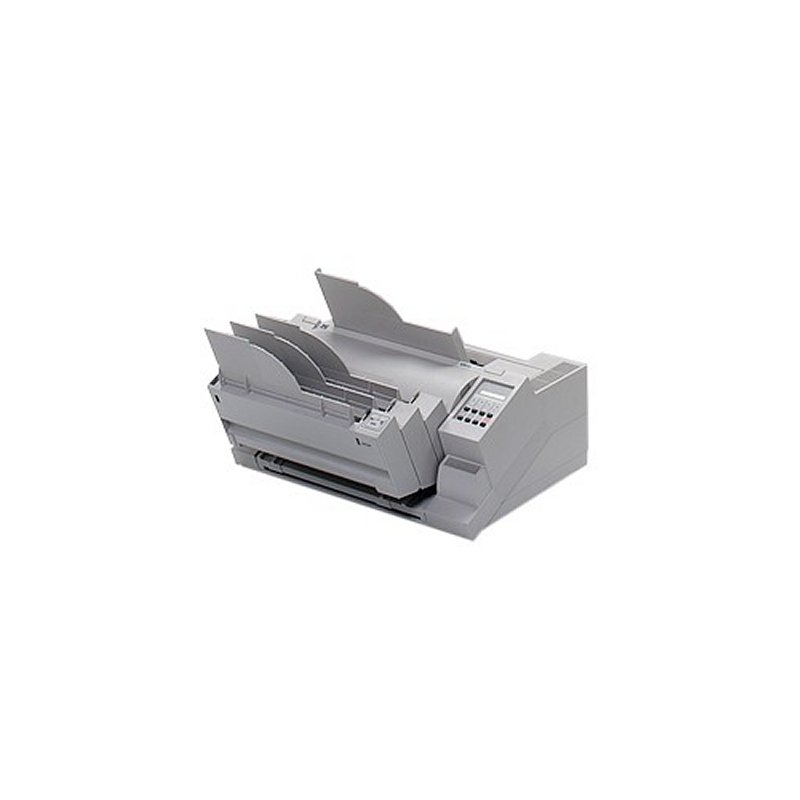

PSI PP 405 Dot Matrix Printers

The extremely versatile PSi PP 405 flatbed dot matrix printer excels with high print speed, excellent print quality and various paper input options to facilitate cut sheets, sets of forms and continuous paper. It is a printer for high-volume tasks and due to smart diagnostics solutions, the printer works reliably unattended. A perfect choice for multiple office and industrial applications.

Add to wishlist Downloads

PSi PP 405: High Quality: Low Noise Level

  • quiet: only ≤ 52 dB(A)
  • fast: max. print speed: 600 cps
  • robust: sturdy construction for industrial applications
  • simple: LCD user interface, macros
  • flexible: multiple paper input options, manual or automatic paper feed, suitable for sets of forms, fanfold paper, single sheets, envelopes, labels

The PSi PP 405 24-wire matrix printer can easily handle high print volumes. Maximal five paper feeds enable flexible printing options. The heavy-duty dot matrix printer produces up to 6 copies (1+5) either in Data Quality (DQ), Near Letter Quality (NLQ) or Letter Quality (LQ). The automatic paper thickness control (AGC) adjusts the distance between paper and print head to ensure optimal results.

For convenient use, the PSi PP 405 dot matrix printer comes with an LCD user interface and user-defined macros ensure uncomplicated access to frequently used settings. Due to its versatility and extremely low noise level, the PSi PP 405 is ideal for all sorts of office applications. More efficiency can be achieved with its ultra-fast print speeds of up to 600 cps (characters per second). The sturdy housing makes the PSi PP 405 wire matrix printer suitable for industrial applications.

Standard interface options: Parallel IEEE 1284, Serial RS-232 (DSUB 9), USB 2.0

Additional interface modules available.

Printer stand for dual fanfold paper handling available (opt.).

Technical specification

Product Category Special Printers
Category Dot Matrix Printers
Manufacturer PSI
Resolution 360x360 dpi
Interface USB, Serial, Ethernet, Parallel
Printing Method 24 wires, 0.25 mm needle diameter
Maximum Print Speed 507pages/hour
Point Width 0,25 mm
Printing Width continuous 100 bis 406 mm, single-sheet 105 bis 305 mm
Power 200 - 240 V (100-125 V opt.), 50-60 Hz
Operating Temperature 10 to 35°C
Paper Type continuous, single-sheet


Datasheet PSI PP 405 (EN)
