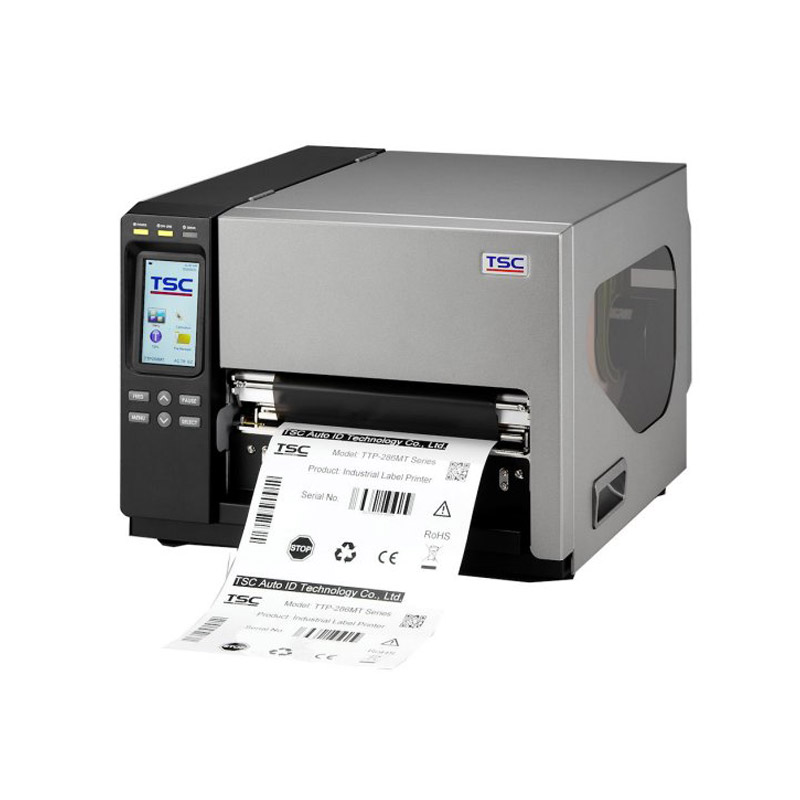

TSC TTP-286MT Label Printers

TSC's successful TTP-286MT series provides easy-to-use and reliable wide-format label printers for use in pallet marking, incoming-goods and shipping, and inventory control. The series consists of two strong models, which differ in their printing speed and resolution.

Add to wishlist Request consumables Downloads

TSC TTP-286MT Series: Wide Format Printer with High Speed ​​Processor

  • fast: print speeds of up to 152 mm/s
  • powerful: prints easily 1D and 2D barcodes, as well as small fonts and graphics
  • robust: aluminum injection molded housing for a durable use

TSC’s TTP-286MT series label printers are wide-format printers with a 4.3-inch color touch display with 6 separate buttons and optimized print speed. The TTP-384MT has a resolution of 300 dpi, which enables deep and excellent printing results even with small graphics or letters in thermal transfer and direct thermal printing. The TTP-286MT model prints with a resolution of 203 dpi.

USB 2.0, internal Ethernet, USB Host, and parallel and serial interfaces are a great help in your day-to-day workflow for printing large-format receipt and marketing labels, warnings, and pallets and barrels.

The integrated 512 MB Flash and 256 MB SDRAM memory ensure smooth operation and storage of all important information. If this is not enough, there is an SD card slot for an expansion of up to 32 GB.

The aluminum die-cast housing makes the printer particularly robust and ideally suited for use in industry.


Technical specification

Product Category Label Printers
Category Industrial Printers
Manufacturer TSC
Resolution 203 dpi
Interface USB 2.0, USB Host, Serial, 10/100 Ethernet, Wireless 802.11 b/g/n, Bluetooth, Centronics, GPIO
Printing Method thermal transfer/direct thermal
Printing Width 216 mm
Maximum Print Speed 152 mm/s
Maximum Print Length 11430 mm
Minimum Print Width 101,6 mm
Maximum Print Width 241,3 mm
Maximum Material Length continuous
Printer Language TSPL-EZ (EPL, ZPL, ZPL II)
RFID-Option No
Display-Option Yes

Downloads

Datasheet TSC TTP-286MT (EN)
