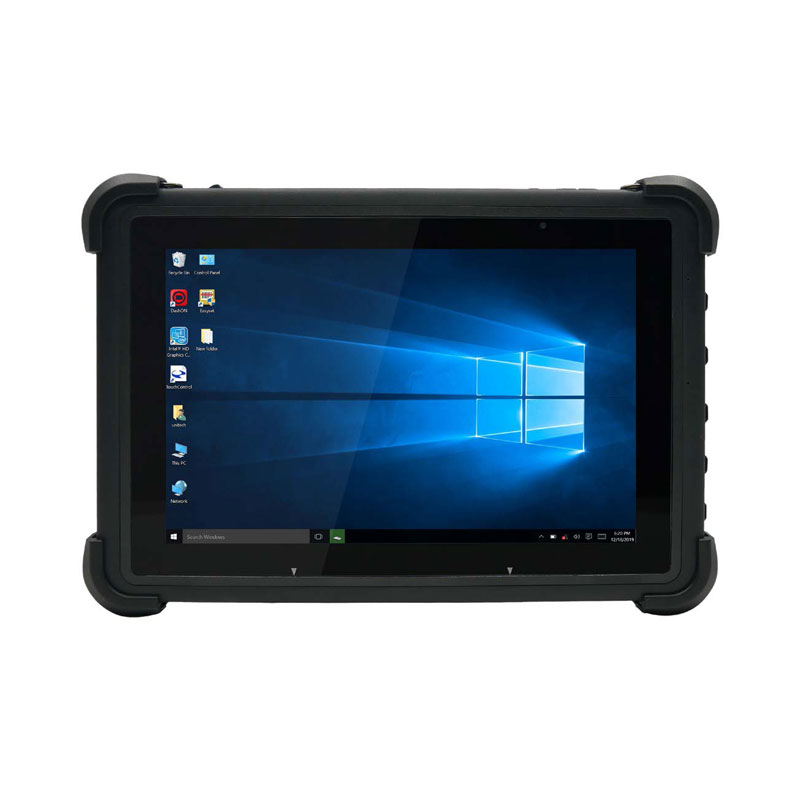

Unitech TB162 Mobile Computers

The Unitech TB162 Windows tablet is a versatile mobile computer, suitable for demanding environments. It is equipped with 4G LTE, WLAN and Bluetooth, ensuring reliable wireless communication. The tablet is robust, user-friendly and provides high flexibility.

Add to wishlist Downloads

UNITECH TB162: Rugged and Versatile Windows Tablet

  • rugged: IP65, 1.5 m drop resistance, MIL-STD-810G, -10 °C – 50 °C
  • convenient:4 GHz Intel Atom X5-Z8550 quad-core CPU, 8 GB RAM, 128 GB SSD
  • dependable: Windows 10 IoT Enterprise LTSB
  • powerful: strong 10 800 mAh hot-swappable battery
  • handy: integrated 1D, 2D barcode scanner, optional NFC/RFID reader module

For applications in warehouses, production environments or in field service, the Unitech TB162 offers a large spectrum of functionalities. Its bright 10.1-inch display is conveniently viewable in bright sunlight. The multi-touch screen is glove-enabled and can be used when it gets wet.

The versatile tablet computer TB162 by Unitech comes with an Intel Atom quad-core processor and provides 8 GB RAM and 128 GB SSD memory. It is possible to extend memory capacity with the Micro SDXC card slot. The TB162 runs the Windows 10 IoT Enterprise (LTSB version) operating system and supports TPM 2.0.

The handy Windows tablet is equipped with a barcode reader to collect 1D and 2D barcode data. If required, an RFID/NFC reader module is available as option, which can be attached to the rear side of the tablet. Additionally, the tablet computer comes with an 8-megapixel rear and a 2-megapixel front camera.

Because of its rugged design, the Unitech TB162 tablet is suitable for rough environments. Protection class IP65 ensures protection against the ingress of particles and liquids. The robust device is also resistant against shock and vibration in accordance with MIL-STD-810G. It survives drops from a height of 1.5 m to concrete and can be used within a temperature range from -10 °C to +50 °C. No doubt, the robust design of the mobile computer Unitech TB162 ensures a long service life despite busy work schedules.

The portable computer TB162 by Unitech provides various I/O ports: USB 2.0, USB 3.0, RJ45, Ethernet 10/100, Micro HDMI, replaceable DC jack. There is a desktop docking station available and a 4-slot battery charger. A vehicle dock allows integration, for example, in fork lifts.

4G LTE, WiFi with 2 x 2 MIMO technology and Bluetooth ensure optimal wireless connectivity, which is indispensable for today’s working processes. A powerful 10 800 mAh battery pack ensures reliable operation of the Unitech TB162 tablet computer. The hot-swap function allows battery change without shutting the computer down and enables seamless operation over several shifts.

The Unitech TB162 Windows tablet is a robust mobile computing solution with multiple connectivity options. It provides barcode and optional NFC data capturing options and comes with a high-capacity battery.


Technical specification

Product Category Mobile Computers
Category Handheld Terminal
Manufacturer Unitech
Display Size 10,1”
Communication Interfaces WLAN, 4G LTE, Bluetooth, USB 2.0, USB 3.0, RJ45, Ethernet 10/100, Micro HDMI, replaceable DC jack
Operating System Windows 10 IoT Enterprise LTSB
CPU Intel Atom Quad-Core-Prozessor, 2,4 GHz
Memory 8 GB RAM, 128 GB SSD
Expansion Optional via Expansion Module
Data Capture 1D, 2D
Scanner N3680
Camera 8 MP, 2 MP
Sealing IP65
Operating Temperature -10°C to 50°C
Keyboard Options On-screen keyboard
Touchpanel 10-Point-Multitouch
Special Features 10800 mAh Battery, Expansion Module

Downloads

Datasheet Unitech TB162 (EN)
