Advantech DLoG DLT-V7210K Vehicle Mounted Computers

The Advantech DLoG DLT-V7210K vehicle mounted terminal stands out with its field-replaceable hardware keyboard. Numerous industrial applications require manual data entry. With the DLT-V7210K by Advantech DLoG, employees can type information conveniently. The mobile computer terminal also excels with most advanced processing technology, a wide range of operating systems to choose form and an extremely rugged construction. It can be mounted on nearly all types of vehicles providing the optimal solution for warehousing and logistics environments.

Add to wishlist Downloads

ADVANTECH DLoG DLT-V7210K: A Magnificent Type

  • industrious: Intel Atom Quad Core CPU
  • wide-ranging: various Microsoft- or Linux-based operating systems
  • extra-rugged: IP65, 5M3, MIL-STD-810F, IK08
  • flexible: several keyboard options, field replaceable

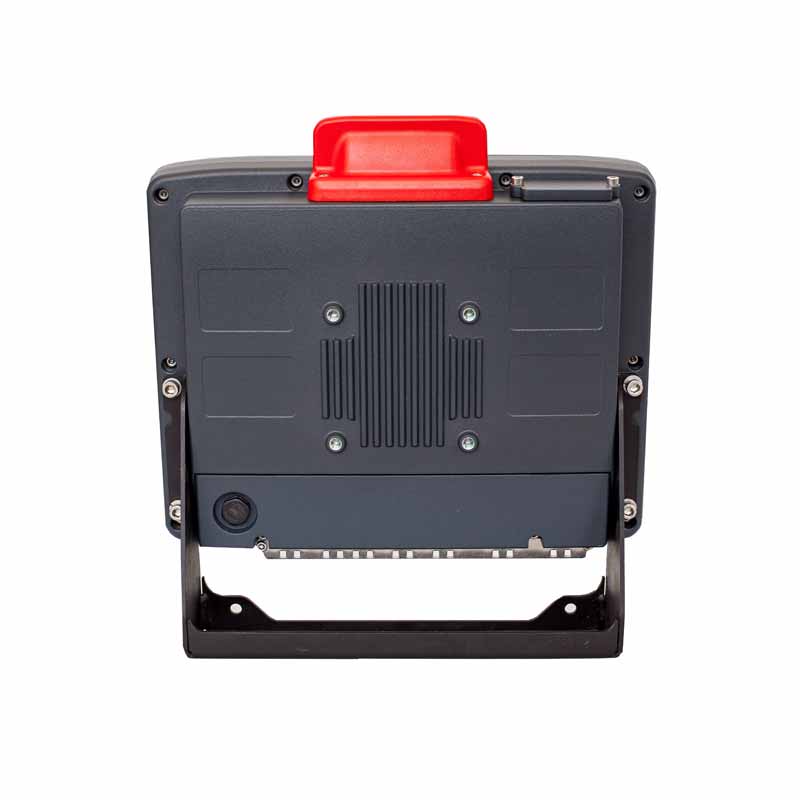

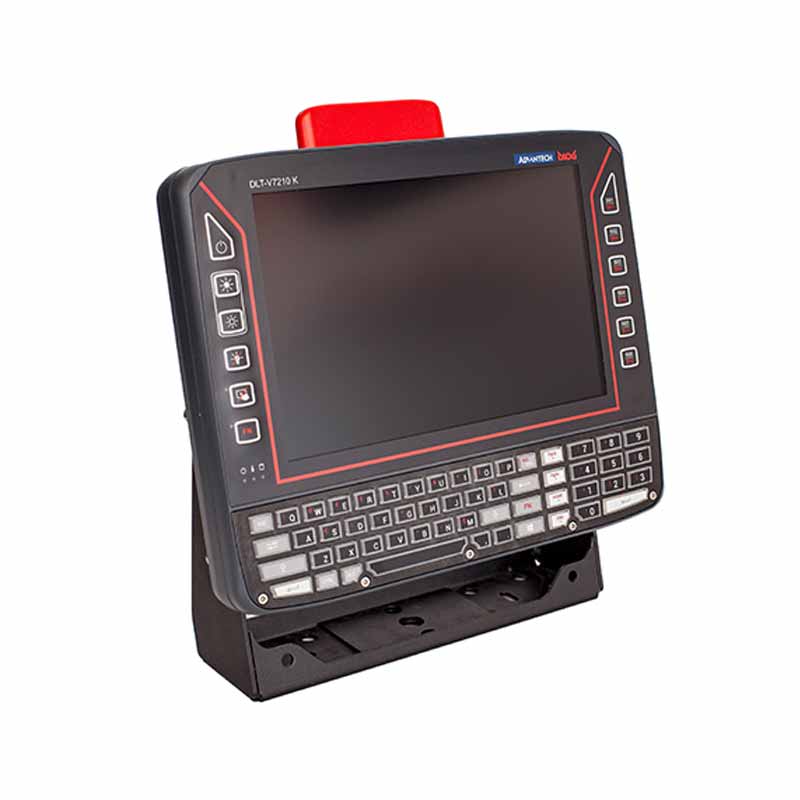

For rough environments, the Advantech DLoG DLT-V7210K is the ideal device. There are different mounting variants and when fixed to a vehicle, the computer system can endure shocks and vibrations according to 5M3 standards. The terminal is sealed against dust and water and is IP65 rated. It is also protected against mechanical impacts complying with IK08 ETSI standards. A temperature range, from -30 °C to +50 °C makes it suitable for freezer environments as well as very hot or humid settings.

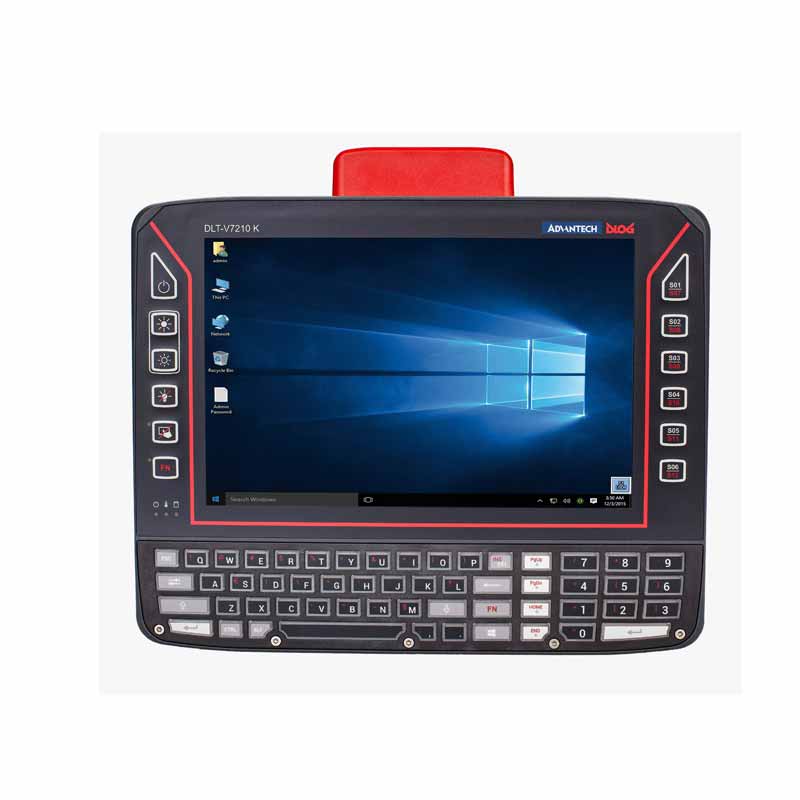

The 10.1-inch protective capacitive touchscreen (PCT) is highly resistant and it is readable under any lighting condition. Five user-configurable buttons enable fast access to often used applications. The Advantech DLoG DLT-V7210K vehicle mount terminal comes with a 55-key keyboard including a number pad. Choose from different keyboard versions: QWERTY, QWERTZ or AZERTY. The keyboard can be replaced on-site.

For optimal computing performance, the Advantech DLoG DLT-V7210K is equipped with a quad core 1.91 GHz processor with 4 GB DDR3 and at least 8 GB CFast memory. There are several operating systems to choose from: Microsoft Windows 10 IoT Enterprise; 7 Professional; Embedded 8.1 Industry Pro; WES7; WE8S or Linux-based Debian or IGEL. The DLT-V7210K computer terminal comes with Ethernet 10/100/1000 as a standard. Optionally, WiFi 802.11 a/b/g/n and Bluetooth can be integrated. Uninterruptible power supply (UPS) can be optionally integrated as well.


Technical specification

Product Category Mobile Computers
Category Vehicle Mounted Computers
Manufacturer Advantech
Display Size 10,1"
Communication Interface USB,Seriell, WLAN, Bluetooth, Ethernet
Operating System MS-Windows 10 IoT Enterprise, MS-Windows 7 Professional MS-Windows Embedded 8.1 Industry Pro, WES7, WE8SLinux Debian-basiert, IGEL Linux
CPU Intel ATOM™ E3845 Quad Core 1,91 GHz
Memory 4 GB RAM
Sealing IP65
Operating Temperature -30°C bis 50°C
Humidity 10% to 90%, non-condensing
Keyboard 12 side keys, thereof 6 free programmable, Full 55-key keyboard with number pad, QWERTZ-, QWERTY- und AZERTY-
Touchpanel PCT Touchscreen
Special Features Integrated uninterruptible power supply (UPS)

Downloads

Datasheet DLoG DLT-V7210K (EN)
