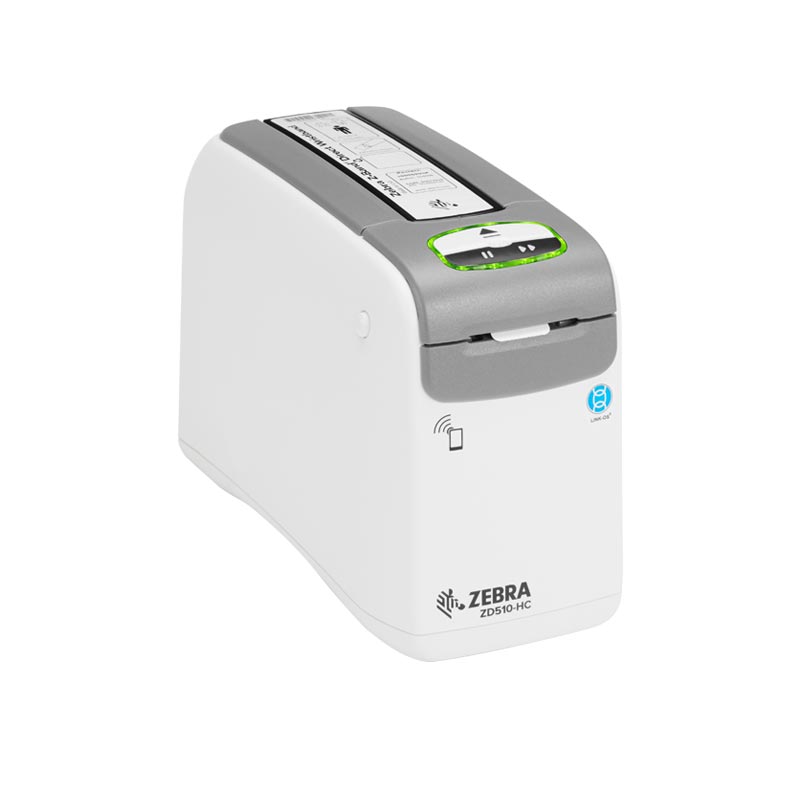

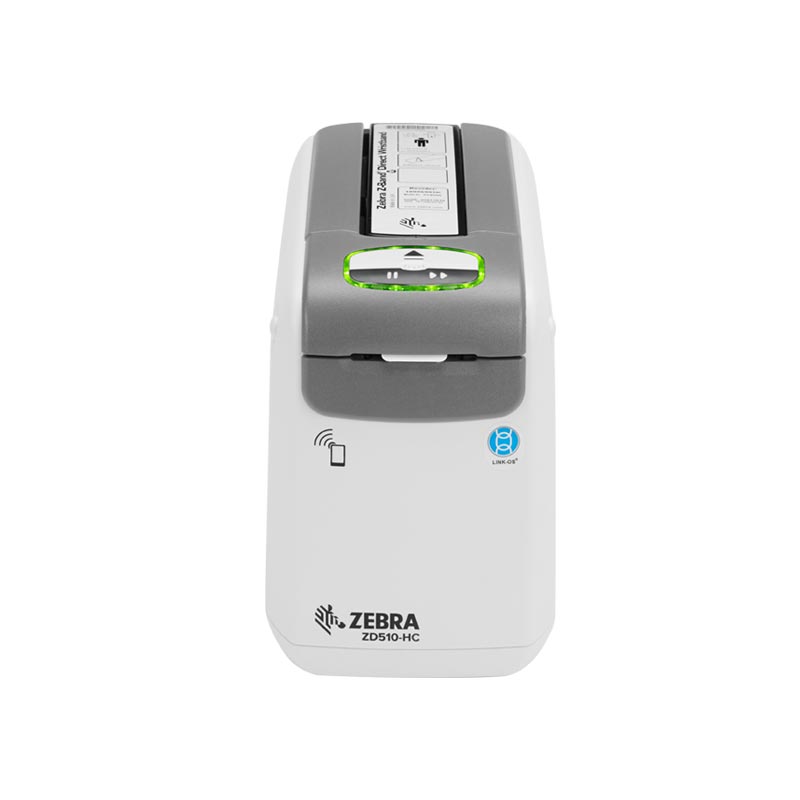

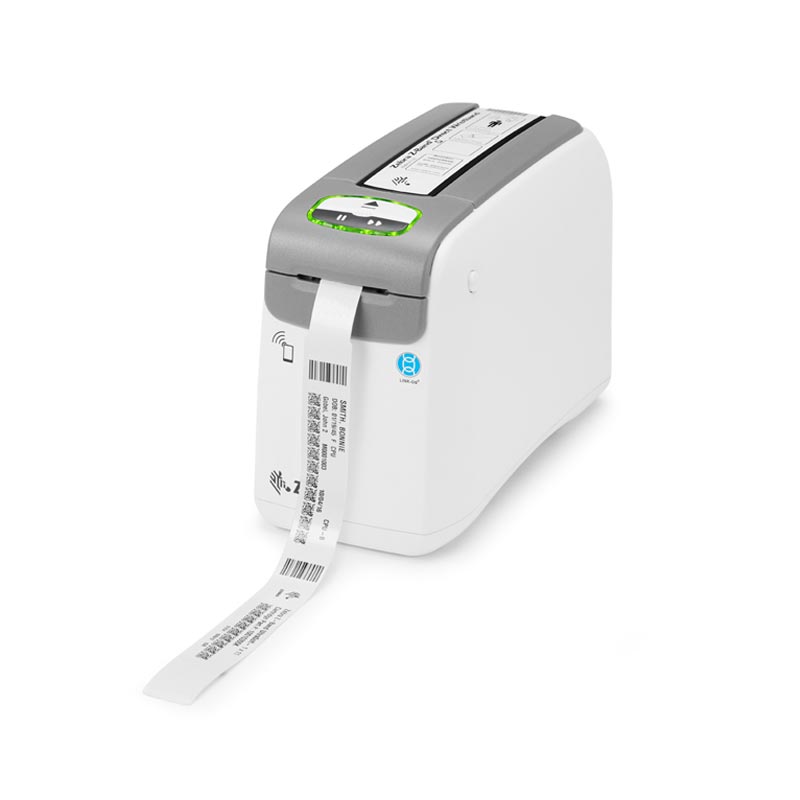

Zebra ZD510-HC Label Printers

The Zebra ZD510-HC is the ideal wristband printing solution for all healthcare environments. It is characterized by its simple usability and outstanding print quality even of very narrow barcodes. Clearly readable barcodes ensure definitive patient identification to prevent fatal errors and ease of mind for clinic staff. The Zebra ZD510-HC wristband printer contributes to fulfilling highest clinical standards with regard to patient safety and personnel productivity.

Add to wishlist Request consumables Downloads

ZEBRA ZD510-HC: Wristband Printer for more Safety in the Healthcare Sector

  • safe: UV-resistant and disinfectant-ready housing
  • versatile: durable wristbands in different colors and sizes
  • simple: wristband cartridge for easy media loading, uncomplicated integration and management

Patient safety must be the top priority in everyday clinical routines. This is why patient wristbands have become indispensable in the healthcare field. To ensure a smooth and individual patient care without delays, the Zebra ZD510-HC wristband printer is perfectly simple to handle. It works reliably and there is no training needed to operate the printer.

The ZD510-HC direct thermal printer by Zebra can be easily integrated into existing systems. Zebra’s Link-OS operating system and the Print DNA platform enable uncomplicated setup, management and operation of one or several printers. The system is compatible with leading medical software solutions, such as Cerner, Allscripts, Epic, CareFusion, McKesson or CPSI. The Print DNA suite also ensures security of data and infrastructure.

In hospitals and other healthcare facilities, hygiene is very important. To prevent the spread of bacteria, the Zebra ZD510-HC wristband printer is made of robust materials that are ready to be cleaned with harsh chemicals regularly. Its double-walled housing is also UV-resistant. Additionally, Zebra’s Z-Band wrist bands come with antibacterial coating and are particularly durable.

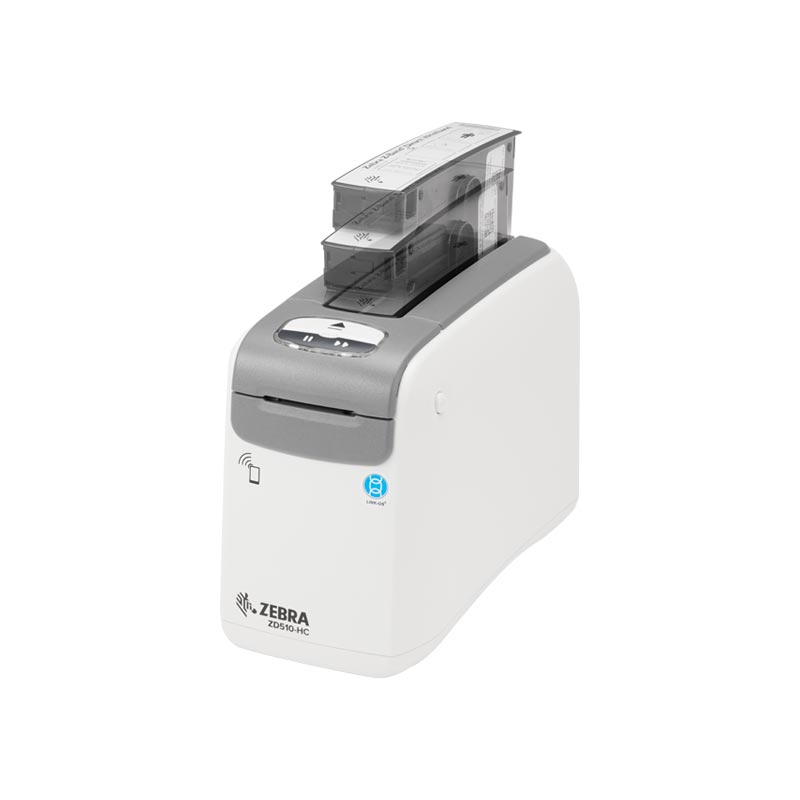

The Zebra ZD510-HC healthcare printer excels with its perfectly easy cartridge solution. Just put in the new cartridge and continue printing. Each cartridge contains a smart chip. Automatic configuration ensures constantly high printing quality. Due to its low-noise operation, the compact wristband printer ZD510-HC is suitable for quiet environments. Printhead and platen can be replaced without tools. The power supply is in accordance with IEC 60601-1 standards for medical appliances.

Resolution: 300 dpi

Standard connections: Ethernet, USB, USB Host, Bluetooth Low Energy

Optional: WiFi 802.11ac, Bluetooth 4.1

Technical specification

Product Category Label Printers
Category Desktop Printers
Manufacturer Zebra
Resolution 300 dpi
Interface USB, Ethernet, Bluetooth BLE
Printing Method direct thermal
Printing Width 19 mm|25 mm|30 mm
Maximum Print Speed 51 mm/s|102 mm/s
Maximum Print Length 558 mm
Printer Language ZPL, ZPL II
RFID-Option No
Display-Option No


Datasheet Zebra ZD510 (EN)
