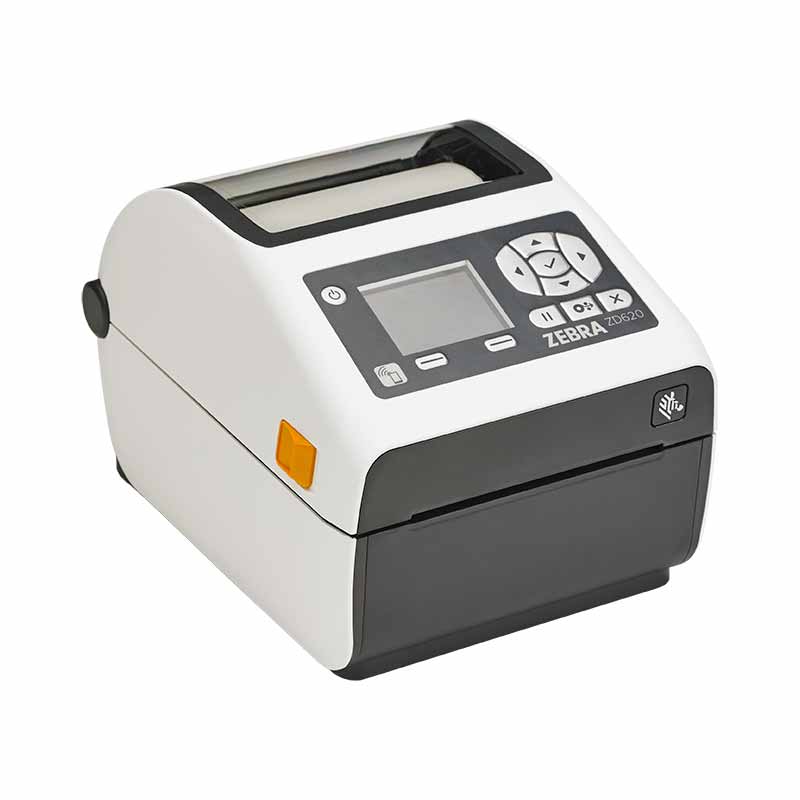

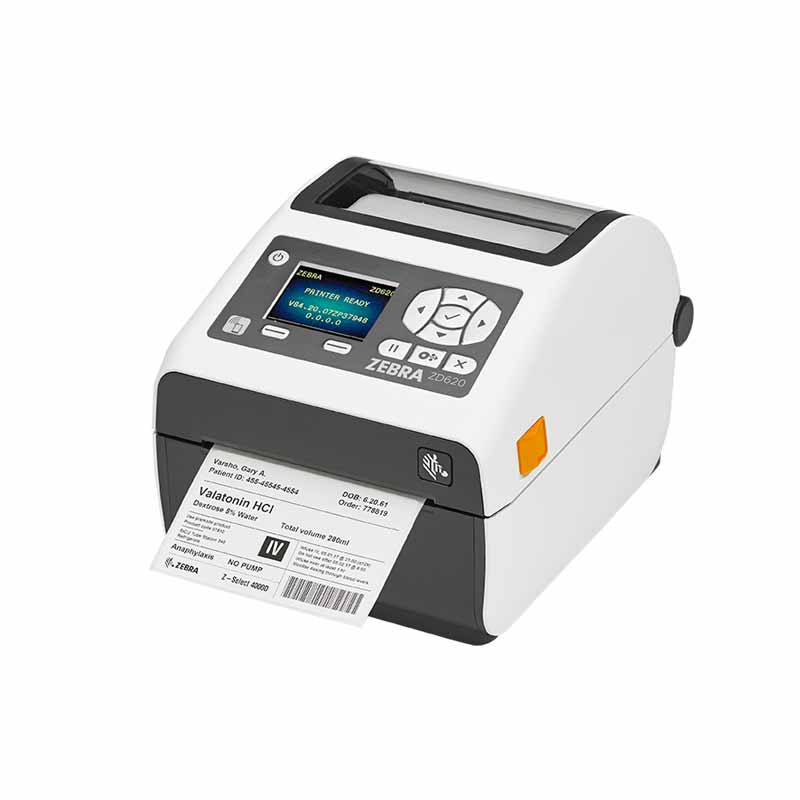

Zebra ZD620-HC Label Printers

Equipment used in healthcare facilities must meet special requirements. The new Zebra ZD620-HC desktop printer presents an exceptional solution for Healthcare areas by providing supreme printing performance and uncomplicated management and operation features. The sturdy, double-walled housing is disinfectant-ready and UV-resistant to make sure that highest hygiene standards are met. With the 300-dpi print resolution option, even tiniest labels or patient wristbands can be printed in outstandingly clear and crisp quality. A new level of efficiency, reliability and convenience – the Zebra ZD620-HC label printer is the answer to the high requirements in the healthcare sector.

Add to wishlist Request consumables Downloads

ZEBRA ZD620-HC: High-Quality Printing Solution for Healthcare Areas

  • simple: uncomplicated integration, management and operation
  • outstanding: 300-dpi print resolution option (field-installable)
  • fast: maximum print speed: 8 ips/203 mm per second (203 dpi); 6 ips/152 mm per second (300 dpi)
  • flexible: 74 m or 300 m high-capacity ribbons, direct thermal or thermal transfer, wired or wireless

A clear user interface enables easy handling of the new Zebra ZD620-HC printer. With the 5 LED icons or optionally a color LED screen, printer status can be checked at a glance. The printer comes with 3 buttons as a standard. A 10-key interface is available as option as well.

The Zebra ZD620-HC is equipped with useful software features, such as Link-OS and Print DNA, providing enterprise-level tools for enhanced printing performance, uncomplicated integration into existing systems and remote management options. Through intelligent software solutions, troubleshooting is possible from any location. Data as well as infrastructure can be protected effectively.

Specially designed for healthcare applications, the robust desktop label printer ZD620-HC by Zebra is resistant to disinfecting agents and UV radiation. Its power supply complies with the IEC 60601-1 standard for medical electrical devices.

The Zebra ZD620-HC healthcare printer offers first-class printing results. It is available with a print resolution of 300 dpi guaranteeing most precise printouts even in small formats. By means of an accessory kit, the printer can also be upgraded to 300 dpi on site later, if required. The integrated media dancer keeps media at consistent tension ensuring excellent print quality. The versatile desktop printer can be obtained as direct thermal or thermal transfer version. For improved productivity, the ZD620-HC by Zebra reaches a maximum print speed of 8 ips (203 mm per second) at 203 dpi and 6 ips (152 mm per second) at 300 dpi.

Connect the Zebra ZD620-HD label printer to wired or wireless networks. Standard interfaces are Ethernet 10/100, RS-232, USB 2.0, USB Host and Bluetooth Low Energy (BLE). Wireless models include WiFi 802.11 ac, Bluetooth 4.1 and NFC. The Zebra ZD620-HC healthcare printer is equipped with a real time clock.

Due to a movable media sensor, the Zebra ZD620-HC can handle media from any manufacturer. Different kinds of media allow maximum flexibility: roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper and wristbands. It is possible to use high-capacity ribbons for cost saving operation and reduced downtime. The ZD620d-HC model with LCD can optionally be equipped with a cabinet lock to protect high-value media and with a Kensington Lock slot.

The optional battery power base allows maximum flexibility. It can be easily attached to the ZD620-HC desktop printer and enables mobile use of the device. By means of the battery power base, the scope of application for the healthcare label printer can be extended immensely and optimal mobility is ensured.

The new Zebra ZD620-HC healthcare desktop printer excels with outstanding printing performance, flexible, user-friendly functionality and management convenience.

Technical specification

Product Category Label Printers
Category Desktop Printers
Manufacturer Zebra
Resolution 203 dpi|300 dpi
Interface USB, Ethernet, WLAN, Bluetooth
Printing Method thermal transfer/direct thermal
Printing Width 104 mm|108 mm
Maximum Print Speed 203 mm/s|152 mm/s
Minimum Print Width 15 mm
Maximum Print Width 108 mm|118 mm
Maximum Material Length 991 mm
Printer Language ZPL II, EPL 2, XML, ZBI
Media Handling Standard|Cutter|Label Dispenser
RFID-Option No
Display-Option Yes


Datasheet Zebra ZD620 HC (EN)
