Datalogic Gryphon 4102-HC Series Barcode Scanner

For the healthcare sector, Datalogic provides a large range of barcode scanner options. The Gryphon 4102-HC series comprises an affordable corded version (GD4132-HC) and two cordless models, either with STAR Cordless System narrow-band connectivity (GM4102-HC) or with Bluetooth 3.0 (GBT4102-HC). The linear barcode readers of the Gryphon 4102-HC series were designed for medical environments and can withstand cleaning with disinfectants. With hospital personnel and patients’ safety in mind, the Datalogic Gryphon 4102-HC series provides convenient use and high-performance, offering a solution for reliable data acquisition in healthcare facilities.

Add to wishlist Downloads

DATALOGIC GRYPHON 4102-HC SERIES: Linear Barcode Scanner for Healthcare Applications

  • needs-based: corded or cordless, STAR Cordless System or Bluetooth connectivity
  • user-friendly: point-and-shoot simplicity
  • hygienic: disinfectant-ready
  • efficient: high-performance linear barcode reader, batch mode, scan-while-charging function
  • robust: IP52, 1.8 m drop resistance

The Datalogic Gryphon 4102-HC series enables accurate data collection to improve patient care as well as the efficiency of working processes. Dependable data acquisition also prevents errors, which is an important factor when dealing with patients. By means of wireless connections, the models GM4102-HC and GBT4102-HC offer convenient mobility. This enables healthcare personnel to use the barcode scanners wherever required, for example, at the patient’s bedside. For stationary data acquisition in the healthcare sector, the corded Datalogic Gryphon GD4132-HC is a cost-effective solution. All versions are linear barcode readers and able to capture 1D barcodes.

STAR Cordless System is a narrow-band radio connectivity solution that does not interfere with other wireless connections. The Datalogic Gryphon GM4102-HC barcode reader is equipped with STAR Cordless System and allows point-to-point or point-to-multi-point data transmission. Maximal 16 devices per receiver can be connected. The radio range reaches up to 30 m. The Datalogic Gryphon GBT4102-HC is the Bluetooth version of the Gryphon 4102-HC series. It comes with Bluetooth version 3.0 class 2 and has a radio range of maximal 30 m.

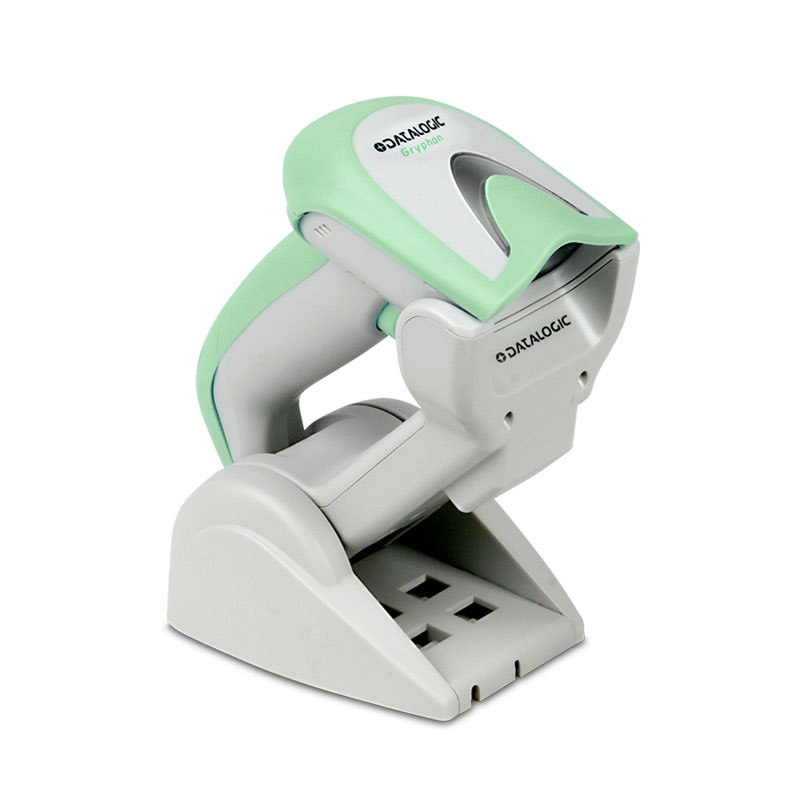

The cordless barcode readers of the 4102-HC series by Datalogic can be used as handheld or presentation scanners. For convenient use, a patented 2-position cradle enables hands-free use of the scanners. It is possible to use the scanners while charging. The battery is user-replaceable. A batch mode ensures that no data is lost if there is no wireless connection available. More than 1,200 barcodes can be stored in internal memory and transmitted to the host system later on.

In a busy clinic environment, easy-to-use equipment contributes to smooth working procedures. The 1D barcode scanners of the Datalogic Gryphon 4102-HC series offer point-and-shoot simplicity in handheld mode and clear good-read feedback. Datalogic’s patented Green Spot technology is ideal for quiet environments, such as patient rooms. Additionally, there is an integrated beeper, adjustable in tone and volume, to confirm the successful capture of a barcode. Because of the wide scan angle, the barcode readers of the Gryphon 4102-HC series are also able to read particularly wide codes.

The housings are treated with anti-bacterial additives and they are made of disinfectant-resistant materials. The hand scanners of the Datalogic Gryphon 4102-HC series can be sanitized with harsh detergents on a regular basis to maintain highest hygiene standards. The devices are protected against the ingress of dust and liquids in accordance with protection class IP52. They withstand drops from a height of 1.8 m to concrete ensuring high durability.


Technical specification

Product Category Barcode Scanners
Category Handheld Scanners
Manufacturer Datalogic
Scan-Technology Linear
Interface-Options RS-232, USB, Keyboard Wedge, Wand Multi-Interfaces (IBM 46XX available with accessory cable)
Colour Options white green
Sea IP52
Operating Temperature 0°C to 55°C

Downloads

Datasheet Datalogic 4102 HC Serie (EN)
