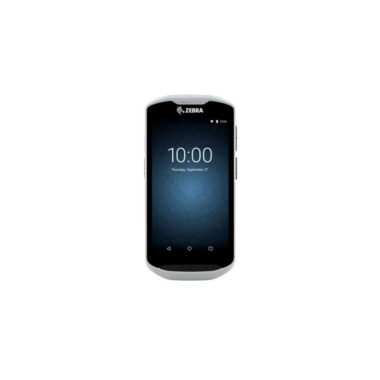

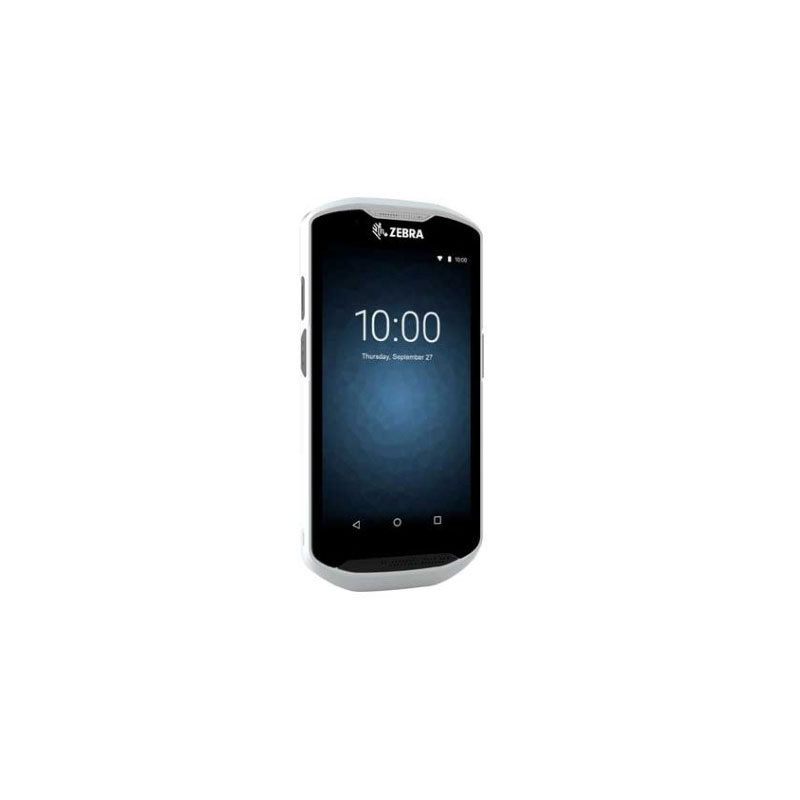

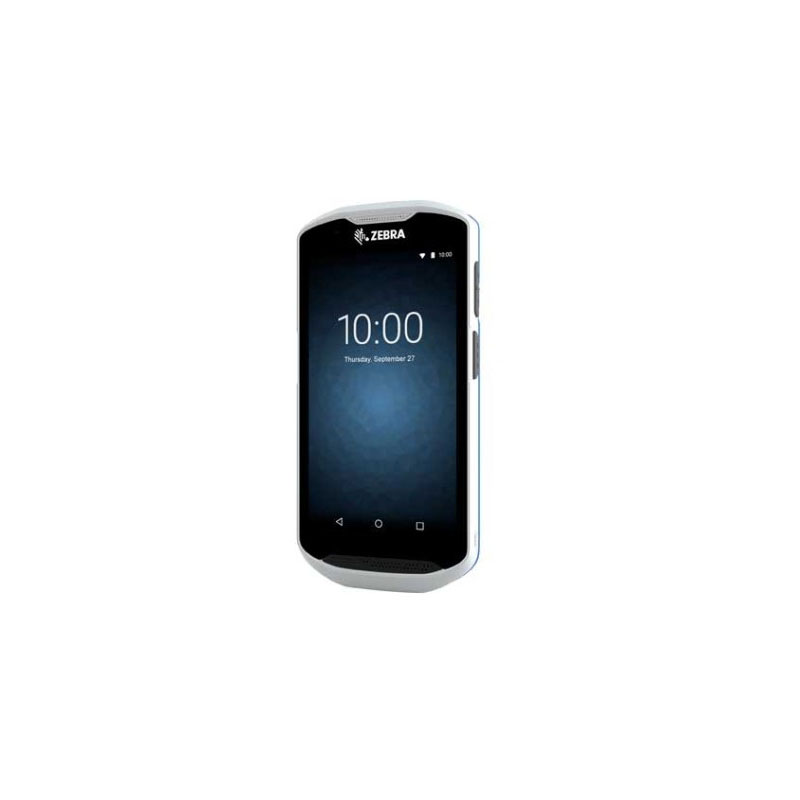

Zebra TC52x-HC Mobile Computers

The new TC52x-HC mobile terminal was designed by Zebra to enhance workflows in healthcare environments, targeting the needs of medical staff, including doctors, nurses as well as staff members in laboratories and pharmacies and other related departments and services. The Android-based Zebra TC52x-HC is equipped with latest technology regarding data processing, data acquisition, wireless connectivity and voice communication. It provides a large, high-brightness Full HD multi-touch display for convenient operation. A red button on the rear side can be assigned to a phone number or a certain application to enable immediate access in emergency situations. The Zebra TC52x-HC handheld terminal was developed with medical personnel in mind, providing them with the tools and applications needed for optimized procedures.

Add to wishlist Downloads

ZEBRA TC52x-HC: Zebra’s Proven Healthcare Experience Meets New Technology

  • advanced: new SD660 octa-core CPU, 2.45 GHz; Android 10
  • accurate: SE4720 imager for 1D, 2D and Digimarc capture
  • straightforward: programmable red emergency button
  • convenient: high-brightness FHD display, glove-enabled; optimized voice communication
  • durable: disinfectant-ready, unibody design, 1.2 m drop resistance, IP65

In modern medical environments, a high level of mobility and reliable data handling are crucial to ensure patient safety as well as efficient processes. The new Zebra TC52x-HC provides personnel with a handy mobile computing solution, addressing the needs in the healthcare sector. It is equipped with a powerful processor, a high-performance barcode reader, two cameras and WiFi as well as Bluetooth wireless communications.

The Qualcomm Snapdragon 660 is a leading-edge octa-core CPU with a clock rate of 2.45 GHz. 4 GB RAM and 32 GB Flash (UFS) ensure high processing performance and smooth-running business applications. The Zebra TC52x-HC is also equipped with a user-accessible MicroSD card slot to enable storage extension by up to 256 GB. It runs the Android 10 operating system and is at least upgradeable through version 11.

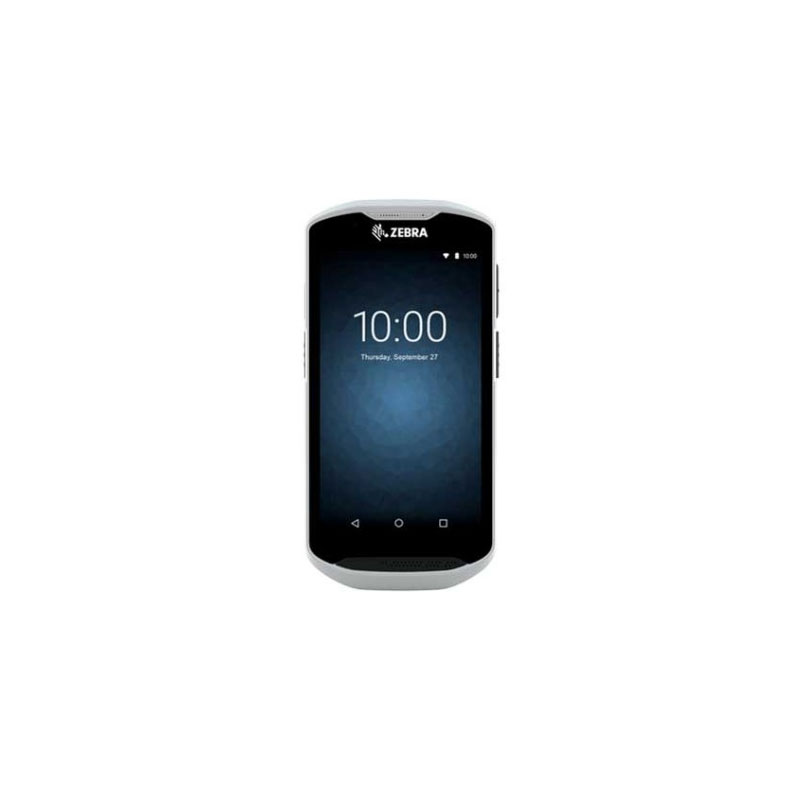

With its high-brightness (600 Nits) 5” Full HD display, the Zebra TC52x-HC terminal is easily readable indoors as well as outdoors. Brightness adjusts automatically to ambient light. The optically bonded screen provides high-quality image rendition and enhanced durability. Convenient multi-touch capability ensures user-friendly operation with fingers as well as with gloves, which are oftentimes used in the medical context. The terminal can also be operated and with a stylus. Even if the display gets wet it remains operable.

Data capture has become a vital factor in all areas of the healthcare business, enhancing workflows and improving productivity. For example, it ensures the correct identification of patients or enables effective supply management. The Zebra TC52x-HC PDA for healthcare is equipped with the highly efficient SE4720 scan engine. It collects 1D, 2D and Digimarc codes. Because of its large sweet spot, barcode capture is perfectly easy. Especially for healthcare environments, the TC52x-HC provides a UDI mode to automatically identify and capture UDI codes for medical products. The handheld terminal comes with 2 dedicated scan buttons and thanks to Zebra’s PRZM Intelligent Imaging Technology, the high-performance imager reads barcodes in any condition. Even barcode labels on small and curved vials or on uneven surfaces are captured accurately.

The Zebra TC52x-HC mobile terminal comes with a 13-megapixel rear camera with a large aperture, enabling the capture of photos in low-light conditions. Additionally, it provides a 5-megapixel front camera for video calls. As communication is particularly important in healthcare, the TC52x-HC provides excellent technology for optimized voice communication. It is equipped with three microphones and high-volume speakers as well as latest noise-suppression technology to ensure crystal-clear audio quality. Workforce Connect PTT voice solutions can be integrated according to requirements. PTT Express is a basic push-to-talk solution, PTT Pro provides comprehensive push-to-talk capabilities enabling voice communication outside the four walls. Workforce Connect Voice turns the TC52x-HC into a mobile PBX phone. Workforce Connect also offers secure text messaging services.

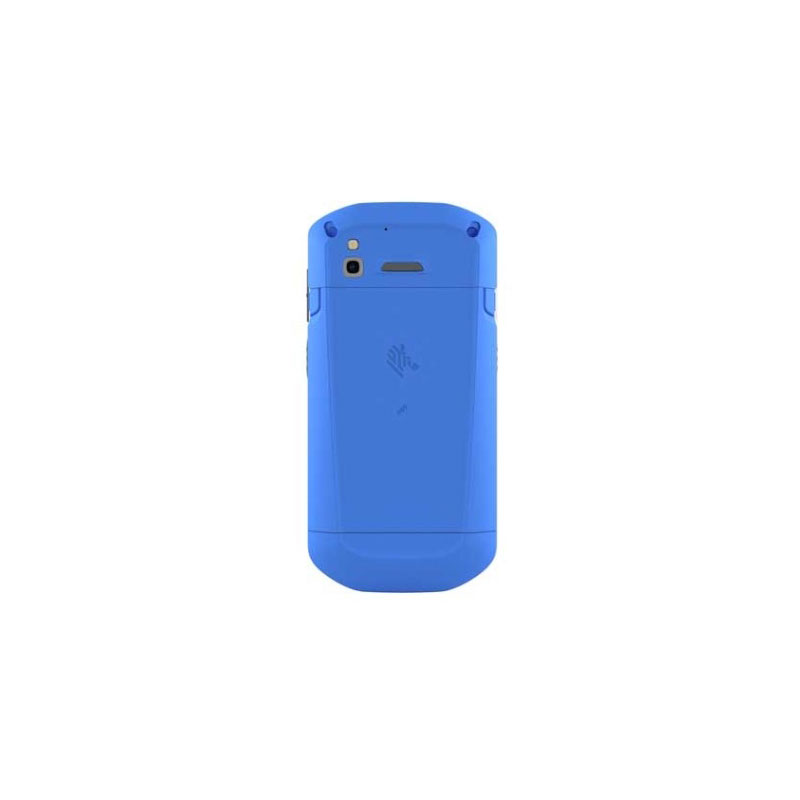

Particularly designed for healthcare environments, the Zebra TC52x-HC mobile computer comes with a red colored, programmable emergency button. It allows instant access to an assigned phone number or application. The TC52x-HC is also equipped with a device tracker to easily locate the terminal even if it is turned off.

The mobile handheld computer terminal TC52x-HC by Zebra provides latest wireless connectivity options. It comes with 2 x 2 MU-MIMO WiFi. The WorryFree WiFi application, which is included in the Zebra Mobility DNA software suite, guarantees optimized wireless connectivity and performance and enables customized configurations. Additionally, the TC52x-HC is equipped with Bluetooth 5.0 and NFC for simple tap-to-pair connectivity.

A replaceable PowerPrecision+ battery provides up to 14 hours runtime. As part of Zebra’s Mobility DNA, the PowerPrecision Console enables battery monitoring and intelligent power management. The Zebra TC52x-HC supports battery hot swap and provides fast charging capabilities.

To ensure high durability, the Zebra TC52x-HC healthcare terminal is extremely robust. It can withstand multiple drops from a height of 1.2 m. Medical-grade materials and the practically seamless unibody design contribute to a high level of hygiene. The housing is disinfectant-proof and can be regularly wiped with harsh cleaning agents. Touch panel and scan window are made of Corning Gorilla Glass. The TC52x-HC by Zebra is sealed against the ingress of dust and liquids in compliance with protection class IP65.

The new Zebra TC52x-HC mobile computer is backward compatible with TC5X-HC accessories.

Technical specification

Product Category Mobile Computers
Category Handheld Terminal
Manufacturer Zebra
Display Size 5"
Communication Interfaces WLAN, Bluetooth
Operating System Android 10
CPU Qualcomm Snapdragon 660, 2,45 GHz
Memory 4 GB RAM, 32 GB UFO
Data Capture 1D, 2D, Digimarc
Scanning SE4720
Camera 13MP/5MP
Sealing IP65
Operating Temperature -10 °C to 50 °C
Humidity 5% to 95%, non-condensing
Keyboard Options On-screen keyboard
Touchpanel Multi-Touch


Datasheet Zebra TC52x-HC (EN)
